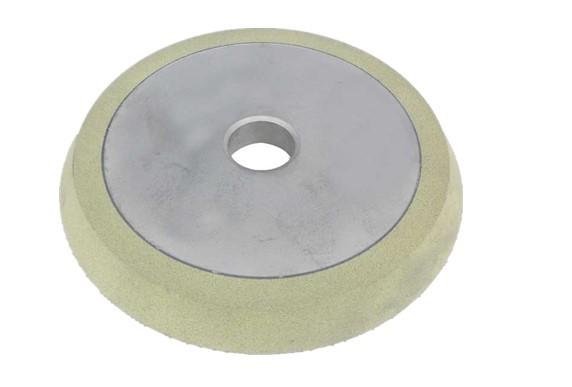

Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
Specifications
Brand Name :
OEM
Model Number :
1V1
Certification :
MPA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000 pcs per month
Delivery Time :
15 days
Packaging Details :
As customers'required
Bond :
Resin
Usage :
sloting, grooving
Core materials :
Aluminum
Diamond grit :
As customers'required
FEPA Shape :
1v1
Hardness :
Super Hard
Description

1. 1V1 Grooving Wheel Slotted Wheels Suitable for The Precision and Deep Grooving

2.

Product Name 1V1 Grooving Wheel Slotted Wheels Suitable for The Precision and Deep Grooving
Application

Mainly used for grinding&cutting hard and brittle alloy,non-metal materials.

Such as hard alloy, ceramics, agate, optical glass, semiconductor materials

and wear-resistant cast iron, stone, spring steel, tool steel, bearing

steel, etc.
Bond Material Resin etc. Blade Color Natural or Customized
Brand OEM Payment T/T, negotiation
Blade Material Diamond /CBN Package Carton box or Customized
Usage Dry & Wet Delivery 7-12 days after down payment

Specification

(Can be customized)

 Brand Type Diameter Height
Resin bond 150 mm 10 to 22mm
Electroplated Customized
Shape code

1V1
Advantages

1. High hardness, high strength, strong abrasive

2. Self sharp, small working heat, not easy to plug

3. Long life span and stable performance 4. Competitive price and superior quality

5. Safe package and fast delivery

6. Professional&excellent service
Production Technology From Germany
MOQ 5pcs of each specification,Total need more than 10pcs
Main Market

USA, Canada, Germany, Italy, Portugal, Poland, Russia, Brazil, Chile,

Australia, UAE, South Africa etc.

3.Specification of 1V1 Grooving Wheel Slotted Wheels Suitable for The Precision and Deep Grooving

Diameter(D) Thickness (T) Width (X) α Hole(H)
75 4.0/6.0/8.0 6.0/10.0 10.0/15.0/30.0/45.0 20/31.75
100 4.0/6.0/8.0 6.0/10.0 10.0/15.0/30.0/45.0 20/31.75
125 6.0/8.0/10 6.0/10.0 10.0/15.0/30.0/45.0 20/31.75
150 8.0/10/15 6.0/10.0 10.0/15.0/30.0/45.0 20/31.75

Aluminum Core Resin Bond Diamond Grinding Wheel Suitable For Precision And Deep Grooving
