Specifications
Brand Name :
YIGAN
Model Number :
VH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Supply Ability :
30 sets per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Packed in film firstly, and then reinforced with wooden case for outer packing
product name :
industrial powder mixer/blending machine
feature :
high efficient
application :
dry powder
mixing mode :
rotating
speed control :
by transducer
special design :
liquid feeding
Description

VH-1000L industrial high efficient dry powder blending machine

Description

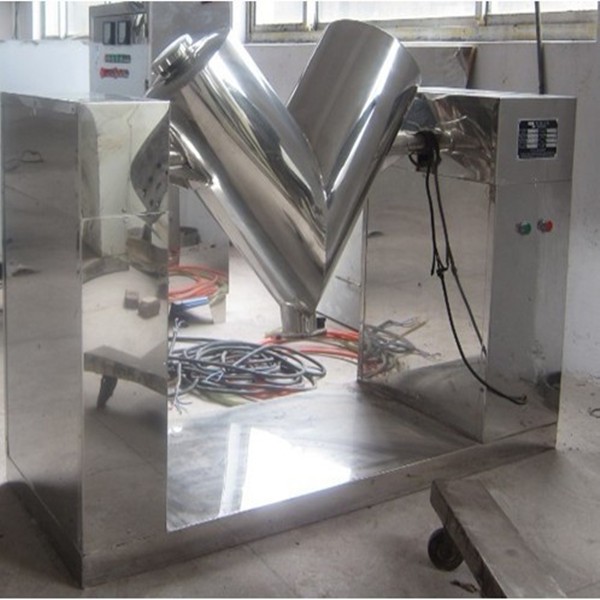

The V shape mixer machine is suitable for two or more materials in dry powder or granule shape of pharmaceutical, chemical, foodstuff industry etc. The structure of V type mixer machine is unique, the mix efficiency is high and there is no hidden corner. Its inner wall and out wall are both polished and the appearance is good-look.

Application

VH-1000L industrial high efficient dry powder blending machine is suitable for many industries such as pharmaceutical industry,chemical industry, metallurgy industry,foodstuff industry, scientific research. It can mix power and granule raw materials having good fluidity and make the mixed raw materials reach the best mixing state.

Transducer 1200kg/H Industrial Blender Machine

Features

VH-1000L industrial high efficient dry powder blending machine has the features of the special construction, high effect, no dead angle, uniform mixture. The machine can also increase to blend the function compulsorily. It can mix thin powder and more than two form powders including the materials that contain water. It can get the good result of admixture (meaning that little admixture additives).

Technical Parameters

Model 0.18 0.3 0.5 1.0 1.5 2.0 2.5 3.0 4.0 5.0 6.0
Product capacity (kg/h) 72 120 200 400 600 80 1000 1200 1600 2000 2400
Model of vacuum pump W2 W2 W2 W3 W3 W3 W3 W4 W4 W4 W4
Time of raw material fed in (min) 3-5 3-5 4-6 6-9 6-10 8-13 8-15 8-12 10-15 15-20 18-25
Mixing time (min) 4-8 6-10 6-10 6-10 6-10 6-10 6-10 8-12 8-12 8-12 8-12
To tal volume (m3) 0.18 0.3 0.5 1.0 1.5 2.0 2.5 3.0 4.0 5.0 6.0
Speed of stirring (rpm) 12 12 12 12 12 12 12 10 10 10 10
Power of motor (kw) 1.1 1.1 2.2 4 4 5 7.5 7.5 1 15 18.5
Rotating height (mm) 1580 1760 2400 2840 3010 3240 3680 3700 4350 4800 5300
Weight (kg) 280 320 550 950 1020 1600 2040 2300 2800 3250 3850

Note:all loading coefficient is usually 0.4~0.6.The capacity listed above is based on loading coefficient 0.5 and specific gravity of raw material 0.8g/cm3
