Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Horizontal Harrow 1200L Vacuum Drying Equipment
Specifications
Brand Name :
YIGAN
Model Number :
ZB
Certification :
CE,GMP
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Packaging Details :
Packed in film firstly, and then reinforced with wooden case for outer packing
Delivery Time :
20 working days after received your payment
product name :
vacuum dryer
feature :
rotary
inner structure :
harrow
drying type :
dynamic
application :
heat sensitive
sealing :
mechanical seal
Description

horizontal type harrow vacuum dryer with mechanical seal for both ends

Description

Being adapted the big area heating way, its heat conducting area is large and its heat efficiency is high.
Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder, so the uniformity to be heated of raw material is raised greatly.
Being installed stirring in the machine, pulpinese, paste-like mixture or powder raw materials can be dried easy.

Principle

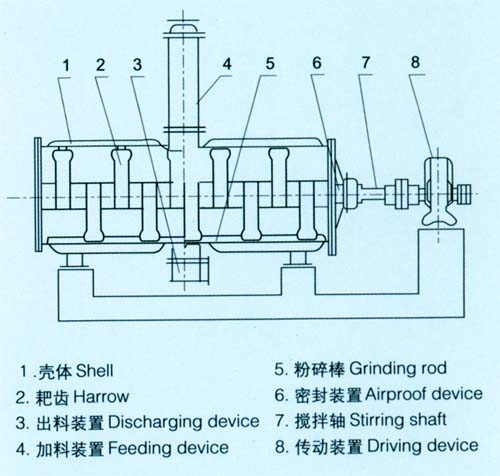

horizontal type harrow vacuum dryer with mechanical seal for both ends is an innovation horizontal batch-type vacuum dryer. The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be pumped by vacuum pump.

Horizontal Harrow 1200L Vacuum Drying Equipment

Applications

The following raw materials from pharmaceutical industry, foodstuff industry, chemical industry and so on can be dried.
Suitable for pulpiness, paste-like mixture or powder raw material.
Thermal sensitive raw material having the requirement to dry at lower temperature.
Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
Raw materials that need to recover solvent.

Technical Parameters

Item ZB-500 ZB-750 ZB-1000 ZB-1500 ZB-2000 ZB-3000 ZB-5000
Working volume( L) 300 450 600 900 1200 1800 3000
inner cylinder size ф600х1500 ф800х1500 ф800х2000 ф1000х2000 ф1000х2600 ф1200х2600 ф1400х3400
Power 4 5.5 5.5 7.5 11 18.5 22
Stirring speed 5~25 5~12 5
pressure of jacket ≤0.3
Inner Pressure -0.09~-0.096

Note: The evaporated amount of water its related to the characteristics of raw materials and the drying temperature .Data above only for reference. we have the right to change but not notice, pardon!
