Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Batch 141 Kg/H Pharmaceutical Fluid Bed Dryer
Specifications
Brand Name :
YIGAN
Model Number :
FG
Certification :
CE,GMP
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Supply Ability :
20sets per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Packed in film firstly, and then reinforced with wooden case for outer packing
product name :
fluid bed dryer
application :
granlue,powder
feature :
high efficiency
dryer shape :
vertical
drying type :
batch type
special design :
with stirring paddle
Description

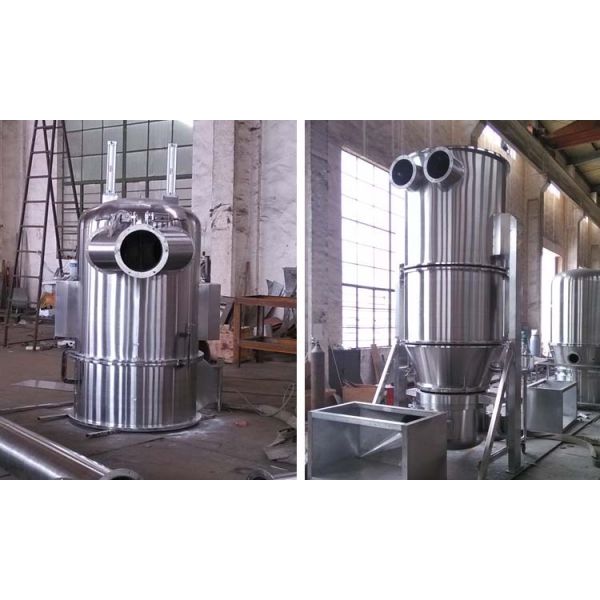

FG Series High Efficiency Vertical Fluid Bed Dryer with Stirring Paddle

Application

FG Series High Efficiency Vertical Fluid Bed Dryer with Stirring Paddle is mainly used for drying of powder or granules in pharmaceutical, foodstuff, chemical industries and so on.

Features

Because of powder Granulating, the flow property is improved and the dust is reduced;
Because of powder Granulating, its solving property is improved;
The mixing, Granulating and drying can be completed in one step inside the machine;
The operation of equipment is safe because the anti static filtering cloth is adopted;
The operation personnel can not be damaged if explosion take place because there is releasing hole;
The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP

Technical Parameters

Item unit Model
3 5 30 60 120 200 300 500
container volume liter 12 22 100 220 420 670 1000 1500
diameter mm 300 400 700 1000 1200 1400 1600 1800
capability min kg/batch 1.5 4 15 30 80 100 150 250
max Kg/batch 4.5 6 45 90 160 300 450 750
fan power kw 3 4 7.5 11 18.5 22 30 45
steam consumption kg/h 15 23 70 141 211 282 366 451
Compressed-air consumption m3/min 0.3 0.3 0.3 0.6 0.6 0.9 1.1 1.6
temperature ℃ adjustable at the range from room temperature to 120℃
working time min decided in accordance with the properties of raw materials
collect rate % ≥99
noise dB(A) <75
Height of main machine mm 2100 2300 2500 3000 3300 3800 4000 4400

All data for reference only. According to the material features, we have the right to change but not notice, pardon!
