Foodstuff Milling 12mm Granules Industrial Granules Grinder
Foodstuff Milling 12mm Granules Industrial Granules Grinder
Foodstuff Milling 12mm Granules Industrial Granules Grinder
Foodstuff Milling 12mm Granules Industrial Granules Grinder
Foodstuff Milling 12mm Granules Industrial Granules Grinder
Foodstuff Milling 12mm Granules Industrial Granules Grinder
Specifications
Brand Name :
YIGAN
Model Number :
B,B-X
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Supply Ability :
20 sets per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Packed in film firstly, and then reinforced with wooden case for outer packing
Product Name :
industrial grinder machine
Grinding mode :
Milling type
Finished powder size :
80 to 120 mesh
dusting method :
By bag filter
Input size :
2mm to 12mm
Processing object :
Foodstuff / pharmaceutical
Description

foodstuff milling type Universal Grinder machine for 2mm to 12mm granules

Description

1. foodstuff milling type Universal Grinder machine for 2mm to 12mm granules consists of feed port, grinding chamber, final powder collector chamber and ESC dust collector. It solves the problem, i.e. the dust is flying during the period of crushing raw material.

2. B grinder consists of feed port, grinding chamber, without ESC dust collector and final powder collector chamber.

3. Full machine made of stainless steel and are in conformity with requirements of GMP.

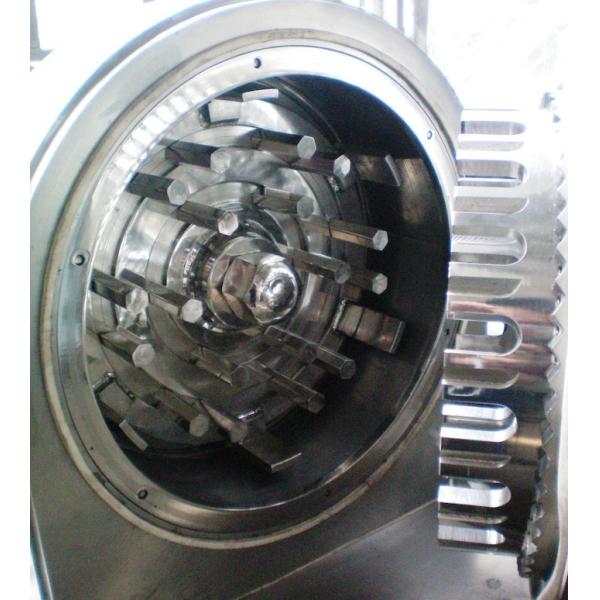

Work principle

after raw material is fed into the crushing chamber, B/B-X Series foodstuff milling type Universal Grinding machine for 2mm to 12mm size material

undertakes the comprehensive actions such as impacted by teeth, shearing force, friction force, impacted between raw materials finally the raw material are crushed. Through sieved, the needed powder can be got.

Foodstuff Milling 12mm Granules Industrial Granules Grinder

Technical Parameters

Model 20B-X/20B 30B-X/30B 40B-X/40B 50B-X/50B
Capacity (kg/h) 60-150 100-300 160-800 500-1500
revolution of spindle (r/min) 4500 3800 3400 3400
Size of fed material (mm) 6 10 12 12
Size of Grinded material (mesh) 60-120 60-120 60-120 60-120
Size of Grinding Motor (kw) 4 5.5 11 11
Power of Dust-catching Motor (kw) 1.5 1.5 1.5 1.5

Overall Dimensions (L x W x H) (mm)

 1100×600×1650 1200×650×1650 1350×700×1700 1550×800×1800
550×600×1650 600×650×1650 850×700×1700 100×800×1800

Notes: the output listed in table will be different with different raw material, for reference only. We have the right to change but not notice, pardon!
