FDA approved Pharmaceutical fluidized bed coater for granules coating

Description

FDA approved Pharmaceutical fluidized bed coater for granules coating combines the top spray granulating ,drying , bottom spray coating and tangent spray pelleting,coating etc. into one unit in pharmaceutical,chemical industry,foodstuffs etc.

FDA approved Pharmaceutical fluidized bed coater for granules coating has following processes:

Mixing

All products which can be fluidized e.g. powder, granules, extrudates, pellets etc. are homogeneously mixed in the Jinggong fluid bed process unit. By using special air flow (horizontal , radial and tangential ) to make the mixing prfect.

Drying

All products which can be fluidized up.

Granulation

Powdery products. By spraying of binders nearly every requested granules can be produced.

Features

1.With high efficiency, spray granulating could be accomplished within 60-120 minutes.

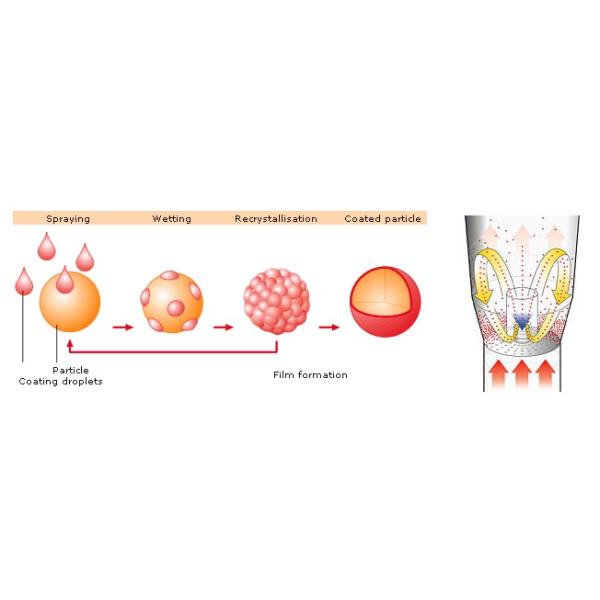

2.WURSTER coating system makes the pellets only contact with the atomizing area to improve the speed and uniformity of coating.

3.centrifugal rotary disc technology and heating air for tangent spray to make pellets directly from power

4.These three function to be conducted in the closed machine so as to prevent the dust polluting the workshop.

5.The whole machine is made of stainless steel SS316,SS314 that will not react chemically with the material.

6.Operate easily, and can set many groups of parameters

7.Anti-explosion,2bar,10bar,12bar can be chosen toguarantee Safety.

8.Dehumidification system and WIP online cleaning system are optional

9. can print and record operation parameters under the control of PLC and HMI.

Applications
FDA approved Pharmaceutical fluidized bed coater for granules coating has vane-shape bottom of hopper which has a certain lean, let the air flow pass through the rift then form circle-shape strong air flow, it makes material rotate as regular turbojet movement. Meanwhile the pneumatic nozzle installed under left wall spray binder or coating liquid into turbojet material, in this way granule or successive even film can be obtained.
It is widely used in coating of powder, granule, pellet, enteric-releasing, slow and control releasing, and coating of smell covering, dam proof, antioxidation, water proof, heat isolation dyeing and separation etc.
