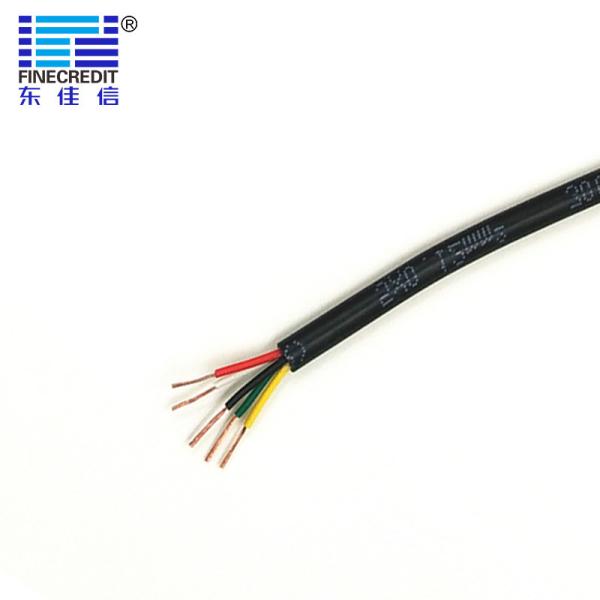

H03VV-F VDE certified 3G 0.75mm2 flexible power cable for utdoor Extension Cord
Model Name | H03VV-F / 60227 IEC 52(RVV) |
Conductor | Bare Copper |
conductor type | Solid, Stranded |
No. of core | 2~4 Cores |
Insulation | Polyvinyl Chloride (PVC) |
Sheath | PVC |
Rated Voltage | 300/500V |
Colors | optional |
Product standard:
The production standard for anti-flaming and fire-resistant cables is EN 50525-2-11:2011 ; IEC 60227.
Application:
PVC insulated wire&cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including300/500V.
Selling Point:
water resistant.flame retardant.waterproof.Fireproof sun-proof.
flame retarded.sun-resistant.fire retardant Environmental.
section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Sheath thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
2×0.5 | 16/0.19 | 0.5 | 0.6 | 5.0±0.2 | 39 |
2×0.75 | 24/0.19 | 0.5 | 0.8 | 5.8±0.2 | 26 |
3×0.5 | 16/0.19 | 0.5 | 0.6 | 5.4±0.2 | 39 |
3×0.75 | 24/0.19 | 0.5 | 0.8 | 6.2±0.2 | 26 |
4×0.5 | 16/0.19 | 0.5 | 0.8 | 6.2±0.2 | 39 |
4×0.75 | 24/0.19 | 0.5 | 0.8 | 6.7±0.2 | 26 |
FAQ
* How to assure the quality of products?
1. Most of our products have certified.
2. Our Lab staff will test the material and check the process card before production.
3. The O.D tester is testing all the time during production, and the production line is always under control.
4. The product will be test by Lab staff after producing.
* Do you offer free sample or not?
1. If we have inventory about the sample you need and the total amount is not large,it's free.
2. If we don't have inventory, according to our company's rule, sample and freight cost need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.
* When I want customized products, how to do?
We have professional equipments, technicians & skilled empolyees, OEM & customized service is welcome. Drawings or samples are required. Of course, purchase quantity should meet our MOQ.
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
