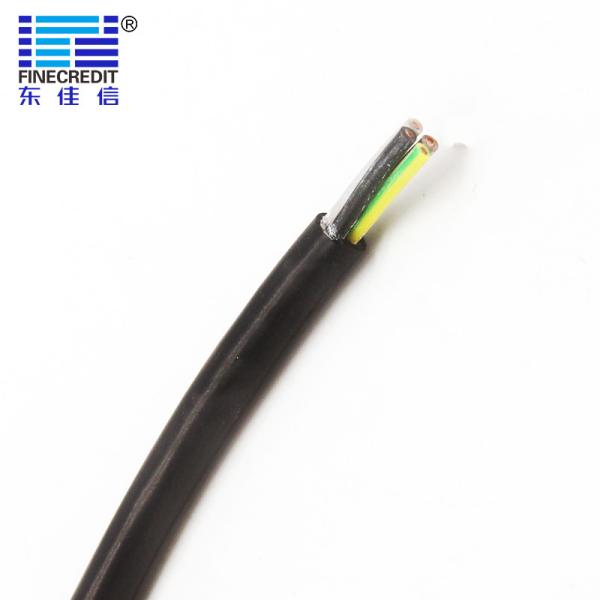

2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting
2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting
2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting
2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting
Specifications
Brand Name :
DONGJIAXIN
Model Number :
H05VV-F
Certification :
VDE CE CB CCC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
7-15 working days
Packaging Details :
Wooden drum/iorn drum
Model name :
H05VV-F
Conductor Type :
stranded annealed copper Class 5
Size :
0.75~2.5mm²
High lights :
lszh fire resistant cable, flame retardant low smoke cables
Sheath :
PVC Compound
application :
Construction,Industrial,Underground,Power Station,BUILDING
standard :
VDE CE CB CCC
insulation :
PVC
Description

300/500V H05VV-F Flexible 3 Core RVV 3*2.5 Mm2 Building Copper Wire 60227 IEC 53 Electrical Cable

Household Wiring Electric Cable Color Code RVV Wire

1. Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012

▼ Description of cables:
1. Product Name:H05VV-F Flexible Copper PVC Insulated PVC Sheath RVVElectric Wire and Cables.
Conductor Material Plain Annealed Copper Wire, Strand, Class 5.
2. Insulation Material: Soft PVC (Polyvinyl chloride).
3. Insulation Colour: Brown, Red, Yellow, Blue, Green, Black, Yellow/Green, or Others.
4. Sheath Material: Soft PVC (Polyvinyl chloride).
5. Core Number: 2C, 3C, 4C, 5C.
6. Voltage Rate : 300/500V (U0/U)
7. Production Standard: EN 50525-2-11:2011 & IEC 60227-5 GB/T 5023.5-2008

2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting

▼ Other specs :
1. Working Temperature :-25C up to +70℃
2. Product Packing :100 meters per roll, plastic reel, wooden pallet, wooden drum,or according to the customer request.
3. Delivery Time : Within 7-15 working days as soon as we received the deposit.

▼ Advantage:

1. Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.

2. For internal wiring in switchboard ofelectrical application&wiring board of power distribution unit,conmecting switch cubicle of electronics and electrical equipment.

▼ Standards:

The production standard for anti-flaming and fire-resistant cables is EN 50525-2-11:2011 & IEC 60227-5 GB/T 5023.5-2008.

▼ Technical parameters:

Product type Cross section of conductor(mm²) Conductor structure(mm) Insulation thickness(mm) Sheath thickness(mm) Approx. cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
H05VV-F 2×0.75 24 0.6 0.8 6.3 26.0
H05VVH2-F 2×0.75 24 0.6 0.8 4.0×6.4 26.0
H05VV-F 2×1 32 0.6 0.8 6.7 19.5
H05VVH2-F 2×1 32 0.6 0.8 4.2×6.8 19.5
H05VV-F 2×1.5 30 0.7 0.8 7.7 13.3
H05VV-F 2×2.5 49 0.8 1.0 9.3 7.98
H05VV-F 3×0.75 24 0.6 0.8 6.7 26.0
H05VV-F 3×1 32 0.6 0.8 7.1 19.5
H05VV-F 3×1.5 30 0.7 0.9 8.4 13.3
H05VV-F 3×2.5 49 0.8 1.1 10.1 7.98
H05VV-F 4×0.75 24 0.6 0.8 7.3 26.0
H05VV-F 4×1 32 0.6 0.9 8.0 19.5
H05VV-F 4×1.5 30 0.7 1.0 9.4 13.3
H05VV-F 4×2.5 49 0.8 1.1 11.0 7.98
H05VV-F 5×0.75 24 0.6 0.9 8.2 26.0
H05VV-F 5×1 32 0.6 0.9 8.7 19.5
H05VV-F 5×1.5 30 0.7 1.1 10.4 13.3
H05VV-F 5×2.5 49 0.8 1.2 12.3 7.98

Packaging & Shipping

▼ Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting

2 3 4 5 Core 300/500V H05VV-F RVV 3*2.5mm2 Industrial Electrical Cable Flexible For Lighting
