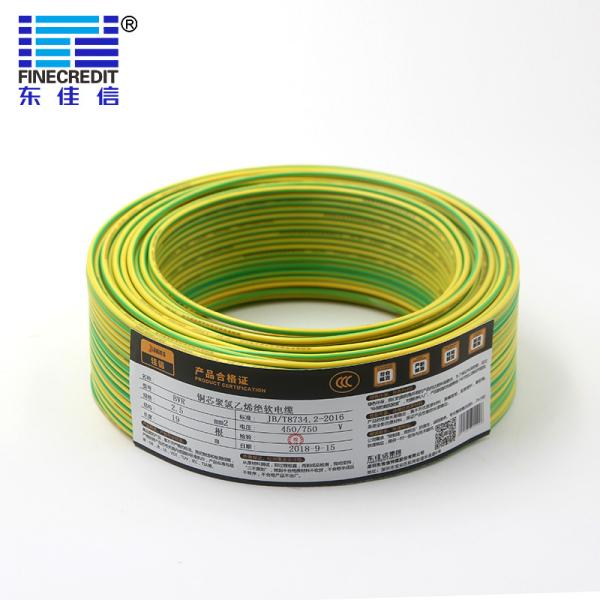

H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor
H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor
H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor
H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor
Specifications
Brand Name :
JIAXIN
Model Number :
H05V-K
Certification :
VED CE CCC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
7-15 working days
Packaging Details :
Steel wooden drum, Coil In Foil / Drum
Model name :
H05V-K
Voltage rate :
Low Voltage Up To 750 V
certificates :
VED/CCC/CE /ROSH
insulator :
PVC
Conductor Type :
Bare Copper Class 5
High Light :
black white red yellow green blue brown
Temperature range :
70℃
Application :
Electronic equipment connection wire
Description

VDE Certification H05V-K Cable PVC Insulated Electric Wire High Quality Copper 0.5mm2 0.75mm2 1.0mm2 Tinned Copper 1 R

1. Application

50/750V Electrical Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V

H05V-K Cable CONSTRUCTION

Conductor

Bare Copper

Insulation

PVC

Warranty

300/500V

Size

0.5~1.0mm²

2. Temperature range

– Form -15°C to +70°C

– Permissible working temperature at conductor +70°C

3. Nominal voltage

– H05V-K = U0/U 300/500 V
– Test voltage 2500 V

4. Colors available:

black, blue, brown, gray, yellow, green, white, red, dark blue, green-yellow

PHYSICAL AND ELECTRICAL CHARACTERISTICS

H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor

H05V-K 300 / 500 V -Single Cores, fine wire stranded

Cross section of conductor(mm²) Conductor structure(mm) Insulation thickness(mm) Approx. cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
0.5 16/0.19 0.6 2.1±0.1 39.0
0.75 24/0.19 0.6 2.3±0.1 26.0
1 32/0.19 0.6 2.5±0.1 19.5

▼ Packing&Delivery:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor

▼ Delivery Port :

H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor
Port of Shenzhen Port of Hongkong

Port of Guangzhou

If this all seems a little too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

▼ Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor

H05V-K 0.5mm2 - 2.5mm2 Pvc Insulated Single Core Cables With Flexible Copper Conductor
