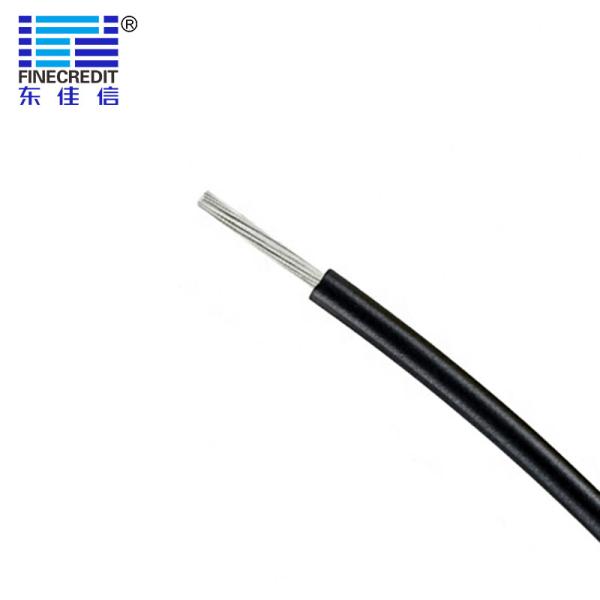

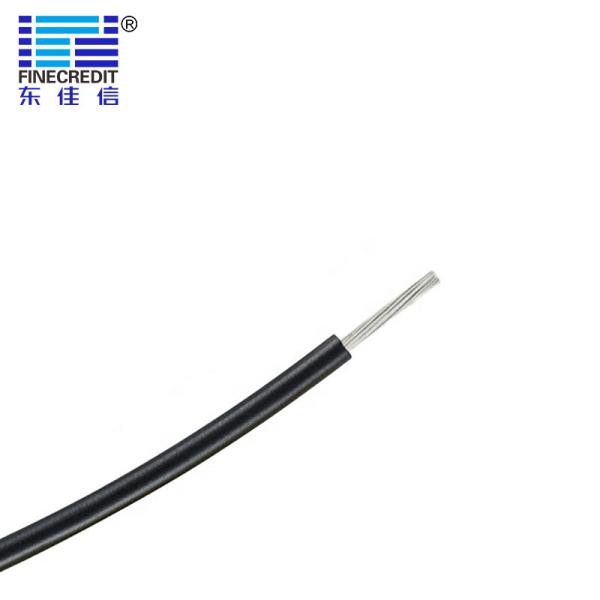

Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG
Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG
Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG
Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG
Specifications
Brand Name :
JIAXIN
Model Number :
UL 1015
Certification :
UL/CUL
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
7-15 working days
Packaging Details :
Steel wooden drum
Product Name :
UL 1015
Conductor Type :
Bare Copper / Coated Copper, Solid or Stranded
Insulation Material: :
PVC
Rated Votage :
600V
Temperature :
105°C
Packing :
305Meter
Standards Certificates :
UL 758
Description

▼ PVC insulated UL1015 electrical wire

Quick Details

Rated temperature

105℃

Rated voltage

600V

Reference standard

UL758

Type

Single core hook-up wire

Material

Copper conductor, PVC insulation

Flame retardant grade

VW-1,FT1

Production Application

Usually used in weak current engineering, suitable for general electronic and electrical equipment internal connection lines, wiring for lighting equipment, medical and chemical industries, etc.

Advantages

Uniform insulation thickness of wire to ensure easy stripping and cutting.esistant to water, oil, acid, solvent and fungus.

Environmental certificate

Environmental testing pass ROHS

Parameter

Designation AWG No./Wire Conductor Diameter DCR @ 20℃ Insulated Thickness Minimum insulation thickness Insulation Diameter Capacity in air @ 25℃
AWM 1015 20 26/0.16 0.93 34.6 0.76 0.69 2.60±0.15 12
AWM 1015 18 41/0.16 1.18 21.8 0.76 0.69 2.80±0.15 15
AWM 1015 16 26/0.254 1.49 13.7 0.76 0.69 3.10±0.15 21
AWM 1015 14 41/0.254 1.86 8.62 0.76 0.70 3.50±0.15 27
AWM 1015 12 65/0.254 2.34 5.43 0.76 0.71 4.00±0.15 37
AWM 1015 11 83/0.254 2.67 4.3 0.76 0.69 4.30±0.15 43
AWM 1015 10 105/0.254 3.1 3.41 0.76 0.69 4.60±0.20 50
AWM 1015 9 133/0.254 3.81 2.71 0.76 0.69 5.35±0.20 63.0
AWM 1015 8 168/0.254 4.00 2.14 1.14 1.04 6.60±0.25 74.7
AWM 1015 7 133/0.321 4.83 1.7 1.14 1.04 7.20±0.25 85.5
AWM 1015 6 266/0.254 5.43 1.35 1.53 1.37 8.50±0.25 99.0
AWM 1015 5 336/0.254 6.09 1.07 1.53 1.37 9.20±0.25 117.0
AWM 1015 4 420/0.254 6.80 0.85 1.53 1.37 10.00±0.30 135.0
AWM 1015 3 532/0.254 7.10 0.67 1.53 1.37 10.50±0.30 153.0
AWM 1015 2 665/0.254 8.60 0.53 1.53 1.37 11.8±0.30 180.0
AWM 1015 1 836/0.254 9.60 0.42 2.1 1.83 13.50±0.40 207.0
AWM 1015 1/0 1045/0.254 10.85 0.34 2.1 1.83 14.40±0.50 243.0
AWM 1015 2/0 1330/0.254 12.30 0.266 2.1 1.83 16.40±0.50 288.0

▼ Packing&Delivery:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline

is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
The cable is supplied in wooden reels, corrugated boxes, and coils. Cable ends are sealed with BOPP self-adhesive

tape and non-hygroscopic sealing caps to protect the cable end from moisture. The required marking shall be printed

with a weather-proof material on the outsides of the drum according to customers' requirements.

Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG

▼ Company information:

30 years of experience in R&D, production, and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG

▼Certifications:

Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG

Packaging details

Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG

– Coil in foil 100m (as of 10 mm2)

– Coil in cardboard (100m) as required (up to 6 mm2)

 –Electrical wire ready for delivery

–Reel / Drum (as of 35 mm2)

–Other packages as required

Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.

▼ Delivery Port :

Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG Single Core UL1015 Electrical PVC Hook Up Wire FT1 Flame Retardant 22AWG 24AWG
Port of Shenzhen Port of Hongkong

Port of Guangzhou
