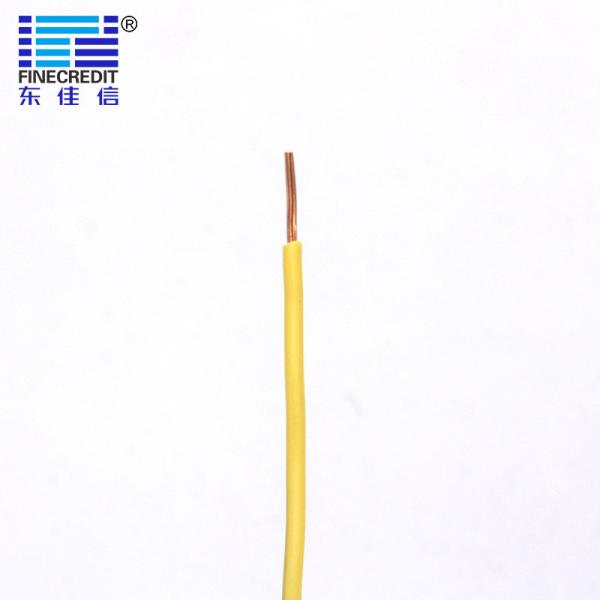

H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed
H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed
H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed
H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed
Specifications
Brand Name :
DONGJIAXIN
Model Number :
H07V-R / BVR
Certification :
VED/CCC/CE/RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, T/T
Supply Ability :
100KM/WEEK
Delivery Time :
7-15 working days
Packaging Details :
Packed in a box (305m)
Model Name :
H07V-R / BVR
Size :
1.5 To 185mm²
Standard :
RoHS/CE/CCC/CB
Voltage Rate :
450/750V
Sheath&Insulation :
PVC
Standards :
EN 50525-2-31:2011；IEC 60227
Keyword :
House Wiring Cables
application :
Construction,Industrial
Description

Pvc Sheathed High Quality Flat Wire Cable single core cable H07V-R / H07V-U / BV / BVR

This product is suitable for fixed wiring (laying) of power equipment with AC rated voltage of 450/750V and below. It has a wide range of uses in low-voltage power lines, daily electrical, instrumentation and telecommunications equipment.

▼Product desription :

- U0/U: 450/750V
- Standard:IEC 60227, EN 50525-2-31:2011；
- Max. working temperature: 70 °C ,
- Conductor: Class 1
- Insulation: PVC
- Cross section area: 1.5~630mm2
- Color: Red,brown,blue,black,green/yellow or others on request
- Packing:100 meters per roll or as requirement
- Certification : VDE CE CB CCC

▼Characteristics:

- high puritypure copper: adopting 99.99% high-quality oxygen-free copper, bright colour,not easy to heat,longer life.

- Quality environmentally-friendly PVC insulation:Adopting environmentally-friendly insulating plasstic,flame-retardant,anti-freeze,oil-resisitant,fire-resisitant,loger service life.

- Low eccentricity uniform thickness : the thickness of insulation is uniform,which can prevent the current breakdown.

▼ Application:

The cables are intended for fixed wiring applications.

▼ Colors:

H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed

▼ Technical parameters:

Product type Conductor structure(mm) Insulation thickness(mm) Sheath thickness(mm) Approx. cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
H07V-R 1.5 7/0.52 0.7 2.8±0.2 12.1
H07V-R 2.5 7/0.67 0.8 3.4±0.2 7.41
H07V-R 4 7/0.84 0.8 3.9±0.2 4.61
H07V-R 6 7/1.03 0.8 4.3±0.2 3.08
H07V-R 10 7/1.34 1.0 5.8±0.2 1.83
H07V-R 16 7/1.67 1.0 6.8±0.2 1.15
H07V-R 25 7/2.12 1.2 8.4±0.2 0.727
H07V-R 35 7/2.49 1.2 9.4±0.2 0.524
H07V-R 50 19/1.77 1.4 11.6±0.2 0.387
H07V-R 70 19/2.12 1.4 13.3±0.3 0.268
H07V-R 95 19/2.49 1.6 15.6±0.3 0.193
H07V-R 120 37/2.00 1.6 17.1±0.3 0.153
H07V-R 150 37/2.23 1.8 19.1±0.3 0.124
H07V-R 185 37/2.49 2.0 21.3±0.3 0.0991
H07V-R 240 61/2.22 2.2 24.2±0.5 0.0754
H07V-R 300 61/2.49 2.4 27.0±0.5 0.0601
H07V-R 400 61/2.83 2.6 30.5±0.5 0.0470
H07V-R 500 61/3.20 2.8 34.2±0.5 0.0366
H07V-R 630 61/3.63 2.8 38.0±0.5 0.0283

▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :

1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

▼ Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed

H07V-R 1.5mm2 Single Core Industrial Flexible Cable BV / BVR PVC Sheathed

▼ Packing&Delivery:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline

is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape

and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with

a weather-proof material on the outsides of drum according to customer's requirement.
