0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use
0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use
0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use
0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use
Specifications
Brand Name :
DONGJIAXIN
Model Number :
YJV
Certification :
ISO/IEC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100KM/WEEK
Delivery Time :
7-15 working days
Packaging Details :
iron with wooden or wood or iron
Model Name :
YJV
Standard :
ISO/IEC
Size :
1.5~630mm²
Voltage Rate :
0.6/1KV Or Below
Package :
Drum
Insulation :
XLPE
Application :
Construction,Industrial
Laboratory certification :
CNAS
Description

0.6/1KV Pure Copper XLPE Cable , Low Voltage Underground Power Cable 2 3 4 Core

Production Description:

1. Construction

  • conductor: pure copper conductor, class1/2
  • insulation: XLPE compound
  • sheath: PVC compound

2. Product Technical Parameter

Cross section of conductor(mm²) Conductor structure Insulation Thickness(mm) Copper sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
4×1.5 1 0.7 1.8 10.1 12.1
4×2.5 1 0.7 1.8 11.0 7.41
4×4 1 0.7 1.8 12.1 4.61
4×6 1 0.7 1.8 13.3 3.08
4×10 7 0.7 1.8 16.0 1.83
4×16 7 0.7 1.8 18.3 1.15
4×25 7 0.9 1.8 22.1 0.727
4×35 7 0.9 1.8 24.6 0.524
4×50 10 1.0 1.8 28.8 0.387
4×70 14 1.1 2.0 33.4 0.268
4×95 19 1.1 2.1 38.4 0.193
4×120 24 1.2 2.3 43.0 0.153
4×150 30 1.4 2.4 47.3 0.124
4×185 37 1.6 2.6 52.7 0.0991
4×240 48 1.7 2.8 59.0 0.0754
4×300 61 1.8 3.0 65.1 0.0601
4×400 61 2.0 3.3 73.3 0.0470
4×500 61 2.2 3.5 82.0 0.0366
4×630 61 2.4 3.8 98.6 0.0283
5×1.5 1 0.7 1.8 10.9 12.1
5×2.5 1 0.7 1.8 11.9 7.41
5×4 1 0.7 1.8 13.1 4.61
5×6 1 0.7 1.8 14.5 3.08
5×10 7 0.7 1.8 17.4 1.83
5×16 7 0.7 1.8 20.0 1.15
5×25 7 0.9 1.8 24.3 0.727
5×35 7 0.9 1.8 27.0 0.524
5×50 10 1.0 1.9 31.9 0.387
5×70 14 1.1 2.1 36.9 0.268
5×95 19 1.1 2.2 42.5 0.193
5×120 24 1.2 2.4 47.5 0.153
5×150 30 1.4 2.6 52.5 0.124
5×185 37 1.6 2.8 58.4 0.0991
5×240 48 1.7 3.0 65.5 0.0754
5×300 61 1.8 3.2 72.3 0.0601
5×400 61 2.0 3.5 81.2 0.0470
5×500 61 2.2 3.8 91.2 0.0366
5×630 61 2.4 4.1 109.5 0.0283

3. Features

  • cable conductor allowed working temperature doesn't exceed 70 ℃ in a long term.
  • Rated power-frequency voltage U0/U: 0.6/1KV
  • Max.permissible continuous operating temperature of conductor: 90℃
  • Max.shoort-circuit temperature of the conductor shall not exceed 250℃ (5s maximum duration).

4. Application

This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

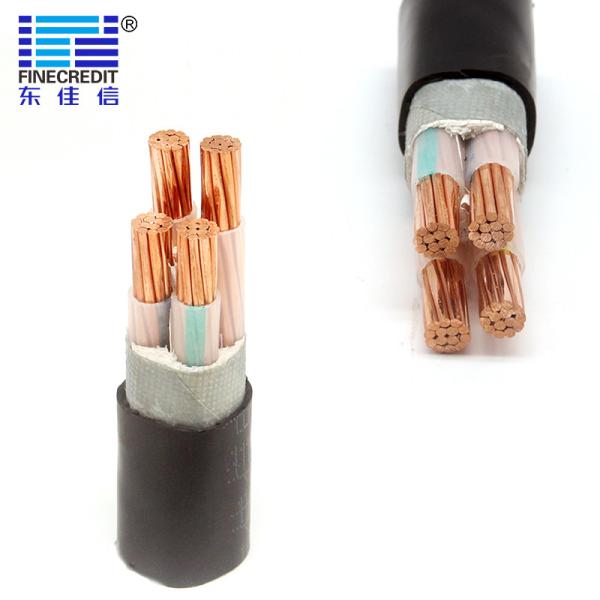

5. Product Image

0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use

▼ Packing&Delivery:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline

is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
The cable is supplied in wooden reels, corrugated boxes, and coils. Cable ends are sealed with BOPP self-adhesive

tape and non-hygroscopic sealing caps to protect the cable end from moisture. The required marking shall be printed

with a weather-proof material on the outsides of the drum according to customers' requirements.

0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use

▼Ordering Options:
For prompt quotation/supplies please make sure your inquiries and your orders are securing the following data :

1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material: PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.

If this all seems a little too technical for you, then why not get in touch with us. We look forward to assisting you in identifying the best products for your specific application and answering any questions you might have.

▼ Production equipment:

0.6/1KV Pure Copper XLPE N2XY NYY NYY-J Low Voltage Power Cable Underground Use
