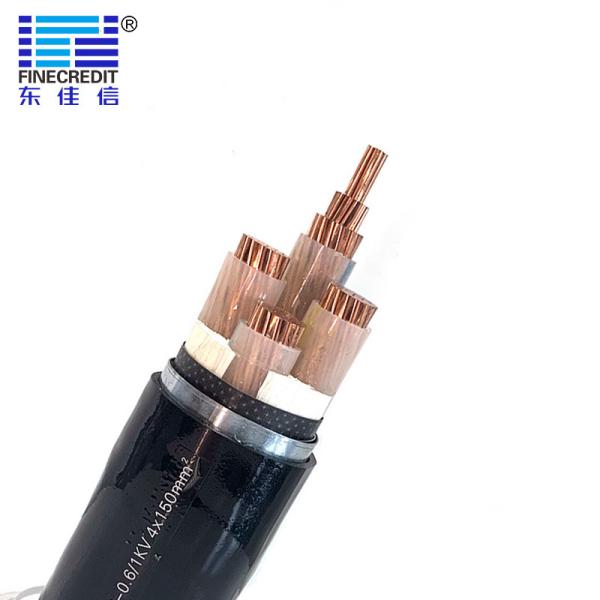

1KV Steel Tape Armoured Electrical Cable Copper Conductor XLPE Insulation
1KV Steel Tape Armoured Electrical Cable Copper Conductor XLPE Insulation
1KV Steel Tape Armoured Electrical Cable Copper Conductor XLPE Insulation
1KV Steel Tape Armoured Electrical Cable Copper Conductor XLPE Insulation
Specifications
Brand Name :
DONGJIAXIN
Model Number :
WDZ-YJY23
Certification :
QS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100KM/WEEK
Delivery Time :
7-15 working days
Packaging Details :
Steel wooden drum, Coil In Foil / Drum
Model Name :
WDZ-YJY23
Conductor Type: :
Class 2
Armor : :
Steel Tape
Insulation : :
XLPE
Jacket : :
LSZH
Size: :
1.5~630mm²
Nos.of Core: :
2~5
Temperature rating： :
-25C up to +90℃
Description

▼Copper Conductor XLPE Insulation Steel Tape Aromred 1KV

Application:

1kV for Fixed installations such as distribution networks or industrial installations.

Constraction:

Core Conductor annealed copper (stranded core)
Popular sizes 2~5 core x1.5~630mm²
Cable conductor stranded annealed copper
Insulation: XLPE
Jacket: LSZH
Voltage suitable 0.6/1kV
Fire performance IEC 60332-1
Approval: QS in China

Advantage:

Compressed Conductor easy for installation, UV - resistant , Exellent in physical protection,Flame retardant, Low Smoke , halogeen free

Standards Certificates:

IEC 60502-1

Technical parameters:
2 Core&3 Core

Cross section of conductor(mm²) Conductor structure Insulation Thickness(mm) Copper sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
2×6 1 0.7 1.8 14.0 3.08
2×10 7 0.7 1.8 16.1 1.83
2×16 7 0.7 1.8 18.1 1.15
2×25 7 0.9 1.8 21.3 0.727
2×35 7 0.9 1.8 23.3 0.524
2×50 10 1.0 1.8 26.0 0.387
2×70 14 1.1 1.9 29.7 0.268
2×95 19 1.1 2.0 33.6 0.193
2×120 24 1.2 2.2 39.3 0.153
2×150 30 1.4 2.3 42.9 0.124
2×185 37 1.6 2.5 47.6 0.0991
2×240 48 1.7 2.6 54.0 0.0754
2×300 61 1.8 2.8 58.9 0.0601
3×6 1 0.7 1.8 14.7 3.08
3×10 7 0.7 1.8 16.9 1.83
3×16 7 0.7 1.8 19.1 1.15
3×25 7 0.9 1.8 22.5 0.727
3×35 7 0.9 1.8 24.7 0.524
3×50 10 1.0 1.9 27.8 0.387
3×70 14 1.1 2.0 31.6 0.268
3×95 19 1.1 2.2 38.0 0.193
3×120 24 1.2 2.3 42.0 0.153
3×150 30 1.4 2.4 45.8 0.124
3×185 37 1.6 2.6 50.9 0.0991
3×240 48 1.7 2.8 57.7 0.0754
3×300 61 1.8 2.9 63.0 0.0601

4 Core&5 Core

Cross section of conductor(mm²) Conductor structure Insulation Thickness(mm) Copper sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
4×6 1 0.7 1.8 15.7 3.08
4×10 7 0.7 1.8 18.3 1.83
4×16 7 0.7 1.8 20.7 1.15
4×25 7 0.9 1.8 24.6 0.727
4×35 7 0.9 1.8 27.0 0.524
4×50 10 1.0 2.0 30.4 0.387
4×70 14 1.1 2.1 36.7 0.268
4×95 19 1.1 2.3 41.8 0.193
4×120 24 1.2 2.4 46.2 0.153
4×150 30 1.4 2.6 51.9 0.124
4×185 37 1.6 2.7 57.1 0.0991
4×240 48 1.7 3.0 63.8 0.0754
4×300 61 1.8 3.1 69.7 0.0601
5×6 1 0.7 1.8 16.9 3.08
5×10 7 0.7 1.8 19.7 1.83
5×16 7 0.7 1.8 22.4 1.15
5×25 7 0.9 1.8 26.7 0.727
5×35 7 0.9 1.9 29.6 0.524
5×50 10 1.0 2.1 33.5 0.387
5×70 14 1.1 2.2 40.2 0.268
5×95 19 1.1 2.4 45.9 0.193
5×120 24 1.2 2.6 51.0 0.153
5×150 30 1.4 2.7 56.7 0.124
5×185 37 1.6 2.9 63.0 0.0991
5×240 48 1.7 3.2 70.3 0.0754
5×300 61 1.8 3.4 76.9 0.0601

Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
▼ Company information:

30 years of experience in R&D, production, and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

1KV Steel Tape Armoured Electrical Cable Copper Conductor XLPE Insulation
