Specifications
Brand Name :
Facerom
Model Number :
FSA7007-0303
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50 sets per month
Delivery Time :
20-45 days
Packaging Details :
Plywood Box
Width of mesh belt :
700mm
Color :
White
Control temperature zone :
3
Equipment length :
4860mm
Description

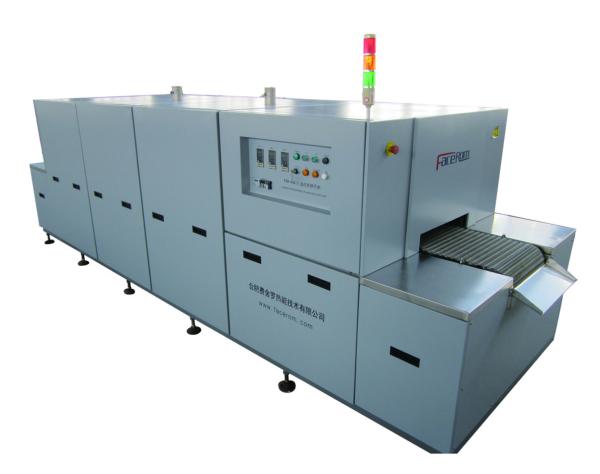

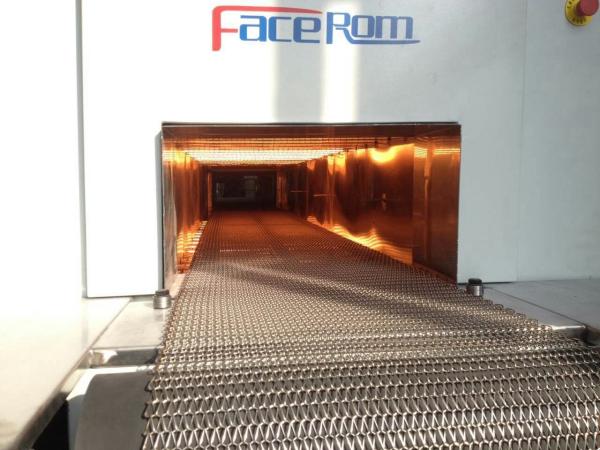

Mesh Belt infrared drying Oven used in drying solar cell panel and Nano coating

Descriptions:

This type of furnace is applied to the drying, curing, binder removal, etc. of the water and organic solvent of printing circuits, electronic paste, powdery materials, solar cells and nano coating.

Solar Cell Panel / Nano Coating Infrared Drying Oven 700mm Width Of Mesh Belt

➢Characteristics:

◆Working temperature: 20℃ - 350℃.

◆Infrared heating, quick response, infrared radiation, no dead corner, one-sixth and one-fourth drying efficiency higher than traditional drying efficiency.

◆All-stainless steel hearth, high cleanliness, no pollution.

◆Over-current, over-load and current-leakage automatic power-off, over-temperature alarm, so as to prevent the products from being over-sintered, and ensure the safety of operators and products.

➢Extra Options (Please indicate when placing the order. Contact us to get more detailed informations)

◆Computer-integrated control system, mesh-belt ultrasonic cleaning system.

➢ Technical Parameters

Model FSA3005-0303 FSA4040-0303 FSA5505-0403 FSA7007-0303
Width of mesh belt 300mm 400mm 550mm 700mm
Height of furnace mouth 50mm 40mm 50mm 70mm
Control temperature zone 3 3 4 3
Equipment length 3300mm 3700mm 3600mm 4860mm

Notes: Other hearth sizes can be customized according to the requirements.

Solar Cell Panel / Nano Coating Infrared Drying Oven 700mm Width Of Mesh Belt

FAQ:

Q: Are you a trading company or a manufacturer?

A: We are one of a leading manufacturer specialized in all kinds of laboratory furnaces and industrial furnaces in China.

Q: Can you produce furnaces according to our requirement?

A: Yes, of course, we can. We can design and produce all kinds of furnaces according to customers’ demand.

Q: Can we be your agent in our country or district?

A: Yes, we are looking for agent and distributors nowadays. If you have interest to be our agent, please contact with us freely, we would like to give you favorite policy to support you.

Q: How do you control the quality?
A: The soul of the quality lies in the spirit of the craftsman, we well understand quality is the basic of survive of an enterprise. We always emphasize in quality control, we test each furnace to guarantee the perfect performance of our furnace before supplying it to customer.

Q: Can you provide free samples?

A: Sorry, we can not supply samples because the cost is high.

Q: How do you pack the furnace?

A: Plywood box with pallet.

Q: Can you pack the products according to our special requirement?

A: Yes, we can. but you have to bear the price spreads of different package.

Q: Can you OEM?

A: Yes, we can OEM according to your drawings.

Q: How long is you delivery time?

A: Usually 20-45 days according to your ordered quantity.

Q: What about your payment terms?

A: a. 100% T/T in advance if the amount is less than USD 1000.00;

30% T/T in advance, the balance before delivery if the amount is over than USD1000.00

b. 100% irrevocable, confirmed L/C at sight (Only when the amount is very large.)
