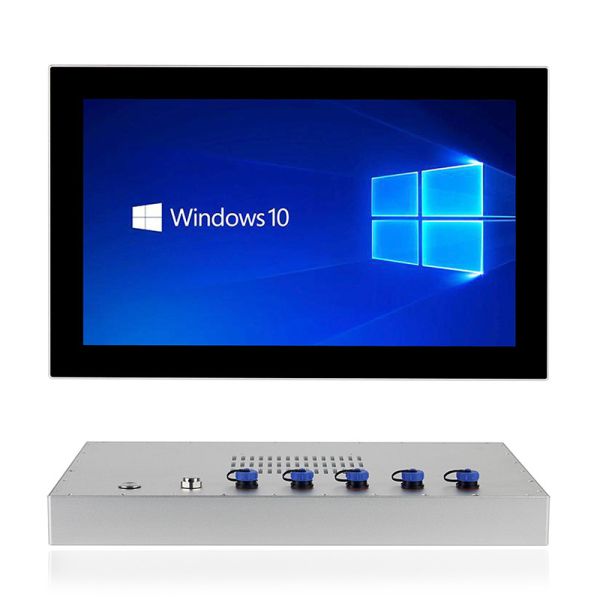

Wince Core I3 I5 Industrial Touch Panel PC IP66 IP69k Waterproof Fanless 15.6 Inch
Wince Core I3 I5 Industrial Touch Panel PC IP66 IP69k Waterproof Fanless 15.6 Inch
Wince Core I3 I5 Industrial Touch Panel PC IP66 IP69k Waterproof Fanless 15.6 Inch
Wince Core I3 I5 Industrial Touch Panel PC IP66 IP69k Waterproof Fanless 15.6 Inch
Wince Core I3 I5 Industrial Touch Panel PC IP66 IP69k Waterproof Fanless 15.6 Inch
Wince Core I3 I5 Industrial Touch Panel PC IP66 IP69k Waterproof Fanless 15.6 Inch
Specifications
Brand Name :
QYT
Model Number :
WPC-O156WAC
Certification :
CE, FCC, RoHS, IP66, IP69K
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
3-10 Business Days
Packaging Details :
Foam + Carton
Waterproof Rating :
IP69K
Panel Size :
15.6" Led
Resolution :
1920 x 1080
CPU :
Intel Core i3-6100U Dual Core 2.4GHz
Memory :
4GB, Up to 16GB
Harddisk :
32G / 64G / 128G / 250G / 500G SSD Optional
I/O Interface :
VGA/HD-MI/LAN/USB/RS232
Touchscreen :
Capacitive / Resistive Touch optional
Power Input :
DC 12V~24V / DC 9V~36V Optional
Operating System :
Win7/8/10/Linux/Ubuntu
Description

Wince Core I3/I5 Ip66/Ip69k Fanless Touch Screen Industrial PC Waterproof Panel 15.6 Inch

QYT specializes in both designing and manufacturing waterproof PCs – part of our line of rugged and hazardous computers. You might be wondering what makes them both rugged and waterproof?

Our waterproof computers are housed in IP69K enclosures, making them suitable for outdoor use. They have superior protection against wind and rain, dust, splashing water and corrosion.

High levels of moisture, spray and the presence of corrosive chemicals or dust destroy most computers and their internal components. We have witnessed many computers that are vital to the productivity in manufacturing facilities fail under wet, corrosive dusty conditions. Solutions are nearly impossible to find, but QYT offers mills and other industrial facilities a one-of-a-kind solution — a completely sealed waterproof PC.

Our Advantage

1. Experience

QYT has more than 10 years rich experience in Industrial Computer/monitor filed.

2. Wide products line

7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.

3. Customization functions

It offers rich of interface to meet csutomers needs.

4.Widely useage environment

QYT computer/monitor which is widly used for kitchen,food industry, boat...etc

WPC-O156WAC
System CPU Intel Core i3-6100U Dual Core 2.4GHz
L2 Cache 3MB
Chipsets Intel 6th Skylake-U SOC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 520
Network Intel® i211 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O VGA 1 x VGA / 1 x HD-MI ( Optional )
LAN 1 x LAN ( Optional )
USB 4 x USB2.0 ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 15.6" Led
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 450 cd/m2
Contrast Ratio 800:1
Colors 16.2M , 72% NTSC
Response Time 13/12 (Typ.)(Tr/Td) ms
Viewing Angle 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type 10 point capacitive touch
Transmittance >90%
Response Time <5ms
Surface Hardness ≥6H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material Aluminum Alloy Shell
Color Silver / Black ( optional )
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP66 / IP69K
Product Dimension 398 x 248 x 40 mm
Cut-out Size /
Packing Size 460 x 180 x 400 mm
Gross Weight 7.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦30W
