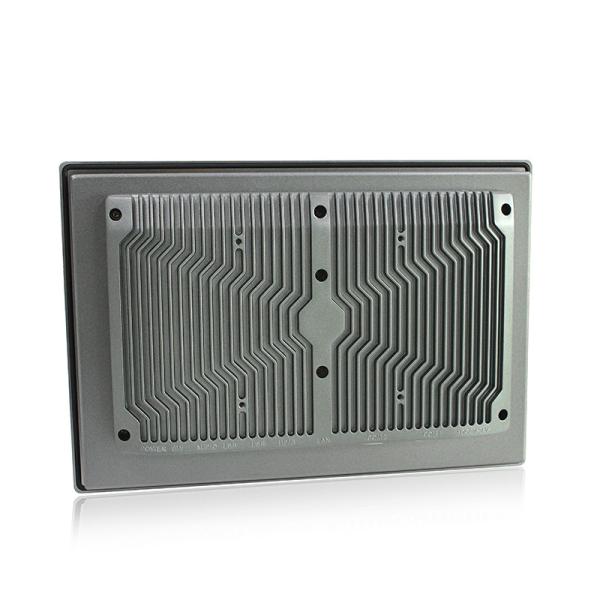

Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Specifications
Brand Name :
QYT
Model Number :
PPC-J012WAC
Certification :
IP65 FCC CE ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability :
5000 Piece/Pieces per Month
Delivery Time :
7 working days
Packaging Details :
1pc/carton weight: 5kg/pc, packing size: 45*17*35cm
Size :
12"
Resolution :
1280 x 800
CPU :
Intel Celeron Quad Core J1900 2.0GHz
Memory :
4GB
Harddisk :
64G SSD
Touchscreen :
Multi-Touch PCAP
TPM :
TPM2.0
Os :
Windows7 / 8 / 10, Linux, Unix, QNX
Working Voltage :
DC IN 9V~36V
Warranty :
1 Year
Material :
High-strength Al-alloy, support IP65
Color :
Gray
Product name :
Industrial Touch Panel Pc Widescreen 12.1" 1280 X 800 Intel J1900
Description

Industrial Touch Panel Pc Widescreen 12.1" 1280 X 800 Intel J1900

Feature
1. 12.1" TFT LED, resolution 1280*800, Multi-Touch PCAP

2. Intel Bay trail j1900 CPU: 2.0GHz, industrial mini PC

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC IN 9V~36V

Specification

PPC-J012WAC
System CPU Intel Celeron Quad Core J1900 2.0GHz
L2 Cache 2MB
Chipsets Intel Bay Trail SOC
Memory DDR3L 1333MHz 4GB, Up to 8GB
Harddisk 1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional
Graphics Intel HD Graphics
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 3 x USB2.0 / 1 x USB3.0
COM 2 x RS-232 / 422 / 485
Wireless Network 4G / WiFi / Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 12.1" Led
Resolution 1280 x 800
Aspect Ratio 16:10
Display Brightness 450 cd/m2
Contrast Ratio 700:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 314 x 216 x 60 mm
Cut-out Size 300 x 203 mm
Packing Size 450 x 170 x 350 mm
Gross Weight 5 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦30W

Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch ScreenWidescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen

Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen

Application
Ticket machine
Out fare turnstile gates
SMArt Lockers parcel locker
On vessel
Stereo garage
Security monitoring
Self serve kiosk
Automatic pay station machine


FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
