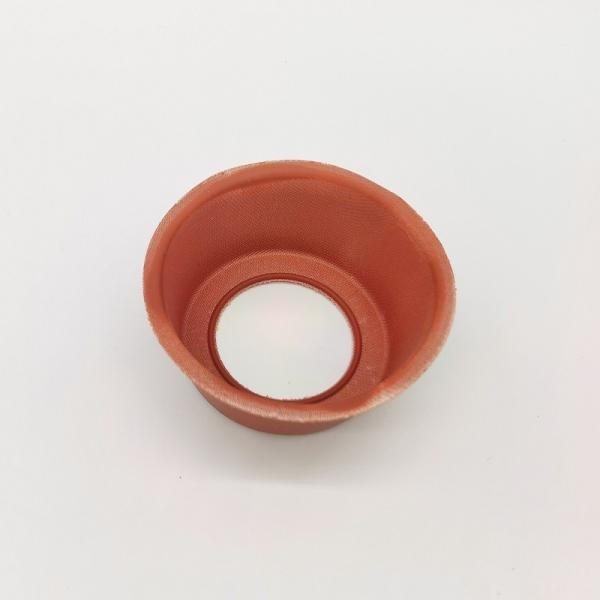

Polyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake System
Polyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake System
Specifications
Brand Name :
EPM
Model Number :
EPM60 EPM90
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiable
Supply Ability :
100 MT/Month
Delivery Time :
30-45 working days
Packaging Details :
Standard export packing
Material :
Polyester, nylon6, nylon66
Specification :
EPM60, EPM90
Width :
According to customers' requirement
Length :
According to customers' requirements
Application :
Brake System
Name :
High Sealing Performance Rubber Diaphragm
Feature :
Durable
Description

90 membrane in brake system

Description


Diaphragms are flexible barriers that are commonly used to provide a seal and to isolate an enclose between a moving and stationary part. One example of an application where a diaphragm is used is with a piston working within a cylinder.

The product involves a reprocessing of finished products and manufacturing methods to keep the performance (breaking strength, elongation at break, heat shrinkage rate) same in both warp and weft, to ensure excellent properties of the automobile brake air chamber and other rubber products.

Feature

Same structure in both warp & weft

Same physical properties in both warp & weft

Same adhesion level in both warp & weft

Polyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake System

Application

The fabrics are widely used as the reinforced materials in the automobile brake system and other rubber moulds with high stability.

Polyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake SystemPolyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake System

Our advantage

We are the biggest manufacturer in China who produces the rubber diaphragm fabrics.

What makes us different is that we have Laser cutting machines and can supply the round pieces directly.It can largely reduce the production cost and enhance the productivity of the customers'.

Polyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake System

Specification

EPM60

ITEM Standard
Warp Weft
Material Nylon6 Nylon6
Structure (Denier) 840*1 840*1
Density (Ends/2.5cm) 28±2 28±2
Breaking Tenacity (N/mm) ≥60 ≥60
Elongation at break (%) ≥25 ≥25
Hot air shrinkage (%) (150℃,3min) ≤2.5 ≤2.5
Adhesion (N/cm) ≥70N/cm
Weight (g/m2) 250±20
Thickness (mm) 0.48±0.08

EPM90

ITEM Standard
Warp Weft
Material Nylon6 Nylon6
Structure (Denier) 1260*1 1260*1
Density (Ends/2.5cm) 25±2 25±2
Breaking Tenacity (N/mm) ≥90 ≥90
Elongation at break (%) ≥25 ≥25
Hot air shrinkage (%) (150℃,3min) ≤2.5 ≤2.5
Adhesion (N/cm) ≥90N/cm
Weight (g/m2) 325±20
Thickness (mm) 0.65±0.08

Polyester Fabric Reinforced Rubber Diaphragms Anti Tearing In Brake System
