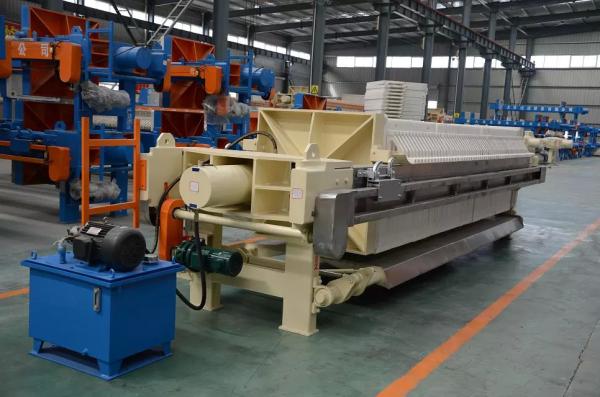

Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size
Specifications
Brand Name :
Xin Ming
Model Number :
XA(M)Z30/870-30U
Certification :
ISO9001, CE
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Standard Packing
Material :
PP, Steel
Voltage :
As required Customized
Power(W) :
2.2KW
Dimension(L*W*H): :
3180*1200*1300(mm)
Type :
Hydraulic Filter Press
Function :
Liquid Solid Separation,Dewatering
Filter Pressure :
≥0.6MPa
Application :
Beverage/Food/Beer/Pharmacy/Fine Chemical
Filter Area :
30M2
Cake Thickness :
30mm
Weight :
3046kg
Life time :
3~5years
Warranty :
1 year
Description

Automatic High Efficiency Hydraulic Water Clay Industrial Filter Press

Product introduction

450 Manual or Automatic Hydraulic Filter Press

Manual or Automatic hydraulic filter press equipped with screw jack for driving the pressing system.Simplified structure,no need power supply,economy,normally suitable for 1-40m2 filtration area.

Holding pressure by electro connecting pressure gauge,convenientoperation,steady,reliable structure,suitable for middle class of filtration area.
Due to the manual operation, this type of filter press is use in low frequencyy and less filter plate working condition.

Technical Data

Model
XA(M)Z30/870-30U
Filter Area(m2)
 30
Plate Size(mm)
870*870
Cake Thickness(mm)
30
Filter Chamber Volume(L)
 460
Plate Qty(pcs)
 23
Filtration Pressure(MPa)
≥0.6
Motor Power(Kw)
2.2
Weight(kg)
 3046
Dimensions L*W*H(mm)
3180*1200*1300
Foundation Size L/B/D/H(mm)
2360/600/1300/832/480

Feature

1.Simplified structure

2.No need power supply

3.Solid&liquid separation

4.Suitable for 30 m2 filtration area

Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size

Fine chemical of industries,food, beverage,beer,sugaring...

Application


Pigment&dye pharmacy chemical
suitable for industries of middle class of filtration area

Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size

Dewatering rollers are arranged in scientific way.Filtrate is respectively discharged from gravity zone,wedge-shaped zone and squeezing zone without disturbing each other.Dewatering rollers has larger diameter and better dewatering effect, they endowed belt filter with high treatment capacity, high efficiency and energy saving.

Our Service
Automatic Hydraulic Water Clay Industrial Filter Press 3180*1200*1300mm Size

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Maintenance, warranty.

Why choose XinMing Filter company.

1.Professionally produce filter press 20 years
2. More than 70 national patent technologies
3.CE certificated, Pass ISO9001
4. Advanced production equipment
5.2 years guarantee
6.Experience on participating large bids
7.10 types filter press, more than 200 modal to meet your different requirements
8.Competitive price: factory direct sale
9.Short lead time: 2 weeks for small modal and 4 weeks for big modal
10.The products have been exported to more than 30 countries of the world, is supplier of Global 500 Fortune Company
