Green Color Solid Liquid Separation Machine For Chicken Manure Treatment
Green Color Solid Liquid Separation Machine For Chicken Manure Treatment
Green Color Solid Liquid Separation Machine For Chicken Manure Treatment
Green Color Solid Liquid Separation Machine For Chicken Manure Treatment
Green Color Solid Liquid Separation Machine For Chicken Manure Treatment
Green Color Solid Liquid Separation Machine For Chicken Manure Treatment
Specifications
Brand Name :
Xinming
Model Number :
XMGF-280
Certification :
SGS，ISO9001, CE
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/ per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Wooden case for export Solid And Liquid Separating Machine
Material :
Q235 Seamless steel pipe+SUS304 Screen mesh
Handling Capacity :
20-30T
Dimension(L*W*H): :
2250*600*1500(mm)
Type :
Solid liquid separator
Motor :
5.5KW
The motor voltage :
380V
Weight :
500kg
Speed :
46r/min
Color :
Any color is possible
Equipped with :
pump , motor and pipes , and electric control container
Use for :
Dewatering screw press
Applicable Industries :
Farms
Warranty :
12 months
Description

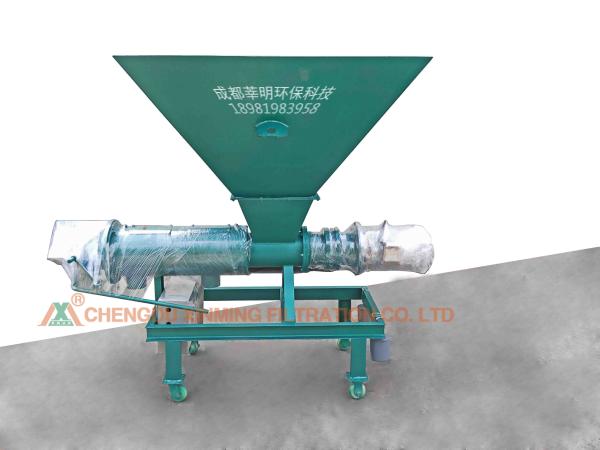

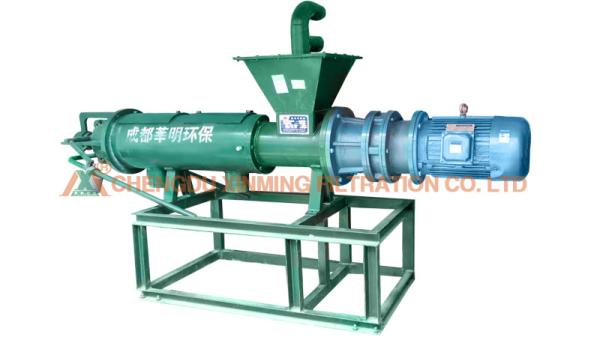

Solid liquid Separation Machine For Chicken Manure Treatment In Breeding Plant


Product Description
1. Brief introduction of Manure Dewatering Machine:
This chicken manure dewatering machine is used to separate and dehydrate water from animal's manure to reduce the water content of the animal's manure. It is not only widely used in poultry's manure,such as chicken manure and duck feces, but also widely used in livestock's manure, like pig manure, chicken manure and so on.

2. Technical parameters of Manure Dewatering Machine:

Model XMGF-200 XMGF-280
Main motor power 5.5kw(for chicken manure) 7.5kw(for cow manure)
Pump motor power 4kw 4kw
Productivity 12-15m3/h 20-30m3/h
Screen mesh diameter 200mm 280mm
Packing size 2250*600*1500mm 2450*700*1700mm


3. Working principles of Manure Dewatering Machine:

1). Dung slurry pump will pump the animal manure into the main body of the chicken dung dewatering machine.

2). In the body of the machine, there are a screw and screen. When the cow manure enter into this machine, the screw will pull the manure from the left to the right at the speed of 46 r/min.

3). When the manure are transported the right of cow manure filtering machine, the screen will continuous press the manure to dewater the manure.

4). The chicken manure is discharged at the end of the machine, and waste water is discharged from the liquid discharge pipe into the water discharging pool. In order to get better effect,we have to do best.

Green Color Solid Liquid Separation Machine For Chicken Manure TreatmentGreen Color Solid Liquid Separation Machine For Chicken Manure Treatment

Advantages

1. Practicability: the residue liquid separation speed is fast, the operation is flexible and convenient. The dehydrated solid is very suitable for organic green fertilizer, which can increase the extra income of farming.
Advanced nature: strong decontamination ability, no clogging, convenient cleaning. Solve the problem of smelly breeding environment.
3. Durability: the internal screen is made of SUS304 stainless steel, and the spiral twisted dragon is made of high-strength alloy. It is corrosion resistant, guaranteed to be used for more than 2 years, and the service life is delayed.
4.Economy: high degree of automation, simple operation, low power consumption, three-phase 380V, 50HZ power energy is used for the motor.

Green Color Solid Liquid Separation Machine For Chicken Manure Treatment

Application

For cow manure, chicken manure,tiger manure,mouse manure,hourse manure,duck manure,pig manure.

FAQ

What’s the application scope of Solid Liquid Separation Machine ?

It is widely applied in wastewater treatment in Pig and cattle breeding, farm waste treatment and so on.

What’s the material of Solid Liquid Separation Machine ?

It is SUS304.

What’s the equipment used together with Solid Liquid Separation Machine ?

Pump, washing pump, air compressor.

How to choose the model?

Advise us the Manure source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
