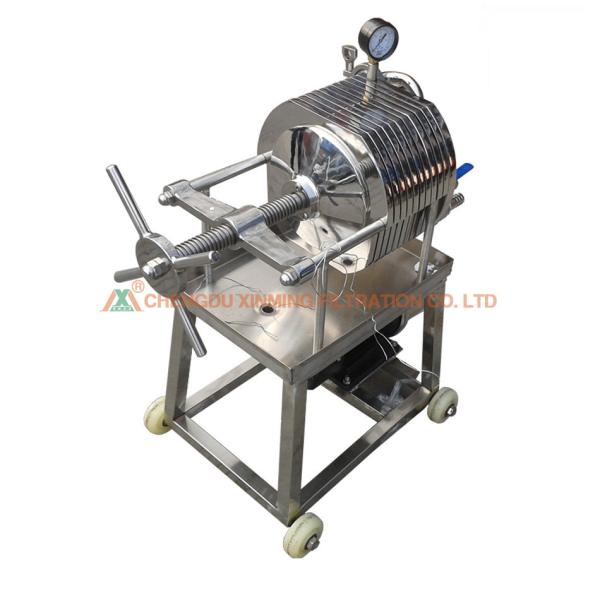

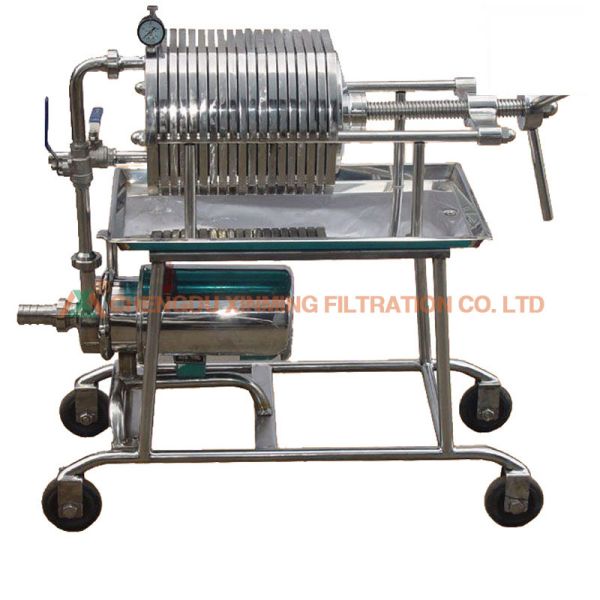

High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material
Specifications
Brand Name :
Xinming
Model Number :
XMBL-7
Certification :
ISO9001, CE
Place of Origin :
Made in China
MOQ :
1 S ets
Price :
USD 8000.00-10000.00 / Sets
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10000 Sets/ per Year
Delivery Time :
Within 15-20 working days after receive 30% down payment
Packaging Details :
Standard Packing
Material :
Stainless Steel 304/316
Voltage :
380V/220V/400V, Customized
Power(W) :
2.2KW-7.5KW
Dimension(L*W*H): :
1350x600x1000(mm)
Type :
Automatic Filter Press
Function :
Wine and oil stainless steel filter press machine
Filter Pressure :
≥0.8MPa
Application :
Chemical, Food, Drink, Oil
Filter Area :
7m2
Material of bag :
PP
Total Height(mm): :
1592
Warranty :
1 year
Description

Chemical, Food, Wine Industry Use High Pressure Hydraulic Compress Filter Press

High Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 MaterialHigh Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 MaterialHigh Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 MaterialHigh Pressure Hydraulic Compress Filter Press Stainless Steel 304 / 316 Material

High Efficiency Pressure Leaf Filter :

High Pressure leaf filter is a high-efficient, energy-saving and hermetically operated fine filter equipment.

It is widely used in oil industry (such as crude oil, hydrogenated oil, winterized oil etc); chemical industry (such as the crystal separation of petrochemical industry,inorganic chemical industry and organic chemical industry,separation of catalyzers, decoloration of chemical products); foodstuff (such as activated carbon decoloration for granulated sugar and glucose, clarification filtering of liquor, juice, beverage etc); and environmental protection industry (such as using water from rivers and lakes, supernatant purification of sewage treatment plant, purification of water from swimming pool etc).

Features of High Efficiency Pressure Leaf Filter :

1. Fully closed filtration, no leakage, no environmental pollution.

2. Filtration pad automatically pull the structure, easy to work in the observation and cleaning.

3. Duplex filters, large filter area, large slag amount of capacity

4. Vibration slag, reduce labor intensity

5. Hydraulic control, operational automation

6. The machine can be made into large capacity, large filtration system

Application of Diatomite Filter
Speification

Model Dimensions(mm) Filter Area(m2) Filter Plate QTY Valve Diameter Theoretical Flow(t/h) Working Pressure(MPa)
XMWK220 900*300*400 1 15 DN32 1-2 <0.3
XMWK250 1100*350*450 2 20 2-3
XMWK330 1700*600*750 3.4 15 2-4
XMWK400 1840*680*800 5.1 20 3-5
XMWK500-B 1950*750*850 8.9 20 8-10
XMWK500-A 2450*750*850 15.9 38 13-15
XMLS-330(Vertical) 550*540*1250 3.4 19 3-5
XMLS-400(vertical) 920*560*1550 8.9 39 8-10

  • Max capacity is the reference value base on water test; the actual value can be different because of liquid viscosity, solid content and pressure difference
  • The material can be carbon steel, SUS304 and SUS316L
  • Horizontal or vertical type can be customized.

Workshop

Chengdu Hinming Environmental Protection Co., Ltd is a professional equipment manufacturing enterprises , specialized in design ,manufacture and sales of various filtration equipment as well as comprehensive filtration solutions and projects. We have a sound quality assurance system and advanced testing equipment ,can be from raw material into the factory warehousing , processing , assembly , to the whole machine factory supervision and control throughout the process . we have the high-class R&D personnel , experienced workers and high qualified sales team , we are all devoting to provide best products for our clients
