High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
Specifications
Brand Name :
Xinming
Model Number :
XMWK500-A
Certification :
ISO9001, CE
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
negotiable
Payment Terms :
T/T, D/A, D/P, Western Union
Supply Ability :
10000 sets per years
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Filter press main structure covered with pearl cotton, spare parts in wooden cases
Voltage :
380V/220V/240V/440V
Material Of Bag :
PP
Power(W) :
0.75KW
Type :
Liquor, Beverage, Sugar, Condiment
Filter plate QTY :
38
Working Pressure :
0.3MPa
Weight :
50kg
Usage :
Liquid Filter
Warranty :
1 year
Description

2019 SUS304/SUS316L Multilayer Filter for Fine Chemical Industry


Intrduction

Stainless steel filter press machine with 304, 306 high quality stainless steel materials, corrosion resistant, durable, filter plate adopts screw structure, can according to customer's different product replacement filter material (filter material available microporous membrane filter, filter paper, filter cloth, clarify plate, etc.), using silica gel, and fluorine rubber (acid and alkali resistant) two kinds, no leakage, sealed performance is good.
Stainless steel plate and frame filter with microporous filter membrane is a solution to the chemical industry, pharmaceutical food and other industries filter activated carbon, particles and other better equipment, to ensure 100% carbon flow, large flow, easy to disassemble.

Specifications

Model Dimensions(mm) Filter Area(m2) Filter Plate QTY Valve Diameter Theoretical Flow(t/h) Working Pressure(MPa)
XMWK220 900*300*400 1 15 DN32 1-2 <0.3
XMWK250 1100*350*450 2 20 2-3
XMWK330 1700*600*750 3.4 15 2-4
XMWK400 1840*680*800 5.1 20 3-5
XMWK500-B 1950*750*850 8.9 20 8-10
XMWK500-A 2450*750*850 15.9 38 13-15
XMLS-330(Vertical) 550*540*1250 3.4 19 3-5
XMLS-400(vertical) 920*560*1550 8.9 39 8-10

Remark:

  • Max capacity is the reference value base on water test; the actual value can be different because of liquid viscosity, solid content and pressure difference
  • The material can be carbon steel, SUS304 and SUS316L
  • Horizontal or vertical type can be customized.

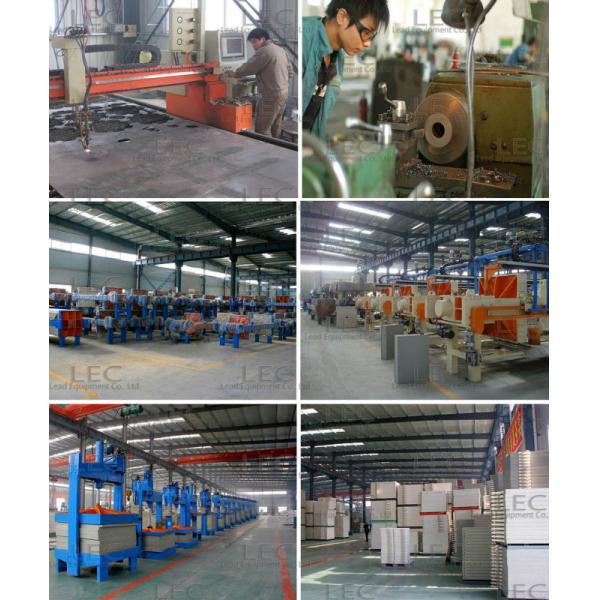

Our Factory
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry

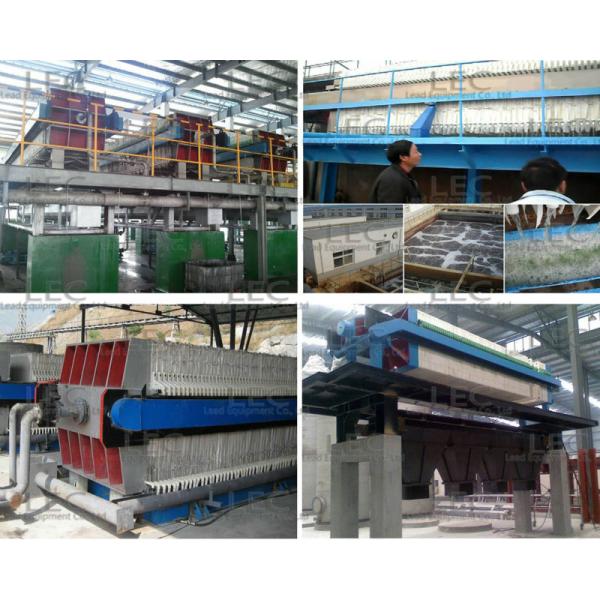

Working Occasion
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry

Our Service
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry

After-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

Frequently asked questions


1.

Q:Please tell us the following information so that we can make you the offer
Filteration area:_____m²
Raw material: _____
Capacity:_____
Voltage: _____
2.

Q: Can you provide us the detailed drawing?
Yes, we can provide you the drawing after have made the prepayment.
3.

Q: Are you a manufacturer or a trader?
We're a professional and experienced manufacturer located in Sichuan.
4.

Q: Can you accept OEM?
Yes, we can produce the machinery totally according to your design standard.
5.

Q: How about the delivery time?
Normally 20-35 working days after prepayment, and we promise we will make the delivery as soon as we can.
