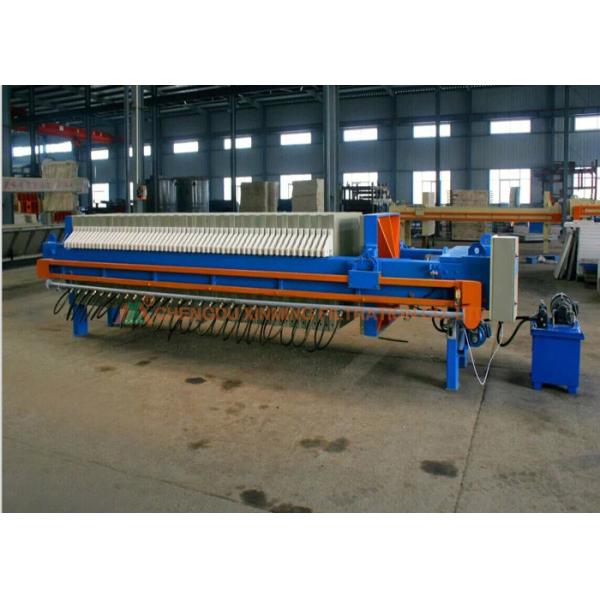

Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge
Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge
Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge
Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge
Specifications
Brand Name :
XinMing
Model Number :
XA(M)G80/870-30U
Certification :
CE, ISO9001, SGS
Place of Origin :
Made in China
MOQ :
1 sets
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, Western Union
Supply Ability :
10000 sets per years
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Standard packaging
Material :
Stainless Steel
Operation :
Convenient
Structure :
Stable
Large filtering area :
80m2
Automatic pressure maintaining :
Automatic Grade
Life time :
more than 5 years
Description

Fully Automatic Hydraulic Membrane Horizontal Diaphragm Press Filter Press for Sludge

Even when it is difficult to filter materials, the filter press still has a good effect, and easy to do anti-corrosion treatment, its structure is simple, easy to operate, lower than other filters. Therefore, choosing filter press as dehydration equipment is your best choice.

At present, filter press has been widely used in chemical industry, pharmaceutical, metallurgy, ceramics, sugar, pigment, dye, cement, silicates and other industries and municipal and industrial sludge dewatering and other aspects.

Filter plate is made of reinforced polypropylene material, which has the characteristics of stable chemical performance, corrosion resistance, acid resistance, alkali resistance, salt resistance, non-toxic and tasteless, light weight, high strength, good toughness, low labor intensity of unloading operation.

Technical Data

Model XA(M)G80/870-30U
Filter Area(m2) 80
Plate Size(mm) 870*870
Cake Thickness(mm) 30
Filter Chamber Volume(L) 1103
Plate Qty(pcs) 61
Filtration Pressure(MPa) ≥0.6
Motor Power(Kw) 2.2
Weight(kg) 5082
Dimensions L*W*H(mm) 5760*1250*1300
Foundation Size L/B/D/H(mm) 5160/600/1270/865

Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge

Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge

Feature

1. Simplified structure

2. No need power supply

3. Solid&liquid separation

4. Suitable for 30-80 m2 filtration area

Appliaction Field

Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge

Ours

Chengdu Xinming Environmental Protection Co., Ltd is a professional equipment manufacturing enterprises , specialized in design ,manufacture and sales of various filtration equipment as well as comprehensive filtration solutions and projects. We have a sound quality assurance system and advanced testing equipment ,can be from raw material into the factory warehousing , processing , assembly , to the whole machine factory supervision and control throughout the process . we have the high-class R&D personnel , experienced workers and high qualified sales team , we are devoting to provide best products for our clients.

RFQ:

Q1: What is the Warranty for the machines?

A1: 12 months for free.

Q2: When can I get the price?

A2: Within 24 hours, if urgent, please directly call us.

Q3: Whether the machine price can be more discount?

A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.

Q4: How to ask quotation?

A4: Please directly tell us which item you are interested in, or note us what tpye of materials, and how many tons of materials you want to treat per day or per hour, then we will send you quotation as soon as we can.

Q5: How long will it take to receive my products?

A5: As a general rule, it will take one 15-30 days for us to produce.

Hydraulic Membrane Horizontal Diaphragm Filter Press Large Filtering Area For Sludge
