Functional Automatic Filter Press Equipment In Project WasteWater Treatment
Functional Automatic Filter Press Equipment In Project WasteWater Treatment
Specifications
Brand Name :
XINMING
Model Number :
XAMY70/1000-30U
Certification :
ISO9001, CE，SGS
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/Per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Standard sea export package High efficient Plate and frame filters for starch sugar processing industry
Product name :
Functional Automatic Filter Press In Project WasteWater Treatment
Material :
PP
Feature :
Effecient
Description :
Solid-liquid Separation Machine
Applicable Industries :
Widely used in Manufacturing Plant, Machinery Repair Shops
After-sale service :
For whole using life
Description

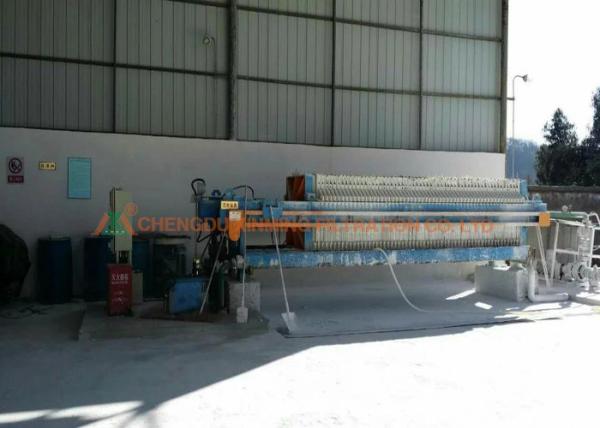

Functional Automatic Filter Press In Project WasteWater Treatment


Filter Press Introduction:

The filter press is a batch-operated, fixed-volume unit with volumes ranging from 0.1 cubic meters to 20 cubic meters, using pressure filtration to separate liquids and solids. The mud is pumped into a filter press and dehydrated under pressure. The filter press can be used for solid-liquid separation or wastewater treatment in various industries and applications, such as mining, metallurgy, petroleum, chemical, pharmaceutical, printing and dyeing, paper, food, alcohol, textile production.
The filter press filter plate:
The filter press filter plate has the plate frame type, box type and membrane type, and is divided into the following materials: reinforced polypropylene filter plate, glass fiber polypropylene filter plate, rubber diaphragm filter plate, high pressure polypropylene diaphragm filter plate, cast iron filter plate , stainless steel filter plate. According to the feeding method, it can be divided into: the middle feeding of the filter plate, the feeding of the corner, the feeding of the filter plate, and the like. Users can choose the right filter plate according to their own production process requirements.

Technology Parameters

Model
 XAMY70/1000-30U
Filter Area(m2)
 70
Plate Size(mm)
1000*1000
Cake Thickness(mm)
30
Filter Chamber Volume(L)
 1063
Plate Qty(pcs)
 40
Filtration Pressure(MPa)
 0.6
Motor Power(Kw)
 4.0
Weight(kg)
 4863
Dimensions L*W*H(mm)
4760*1500*1400
Foundation Size L/B/D/H(mm)
3840/800/1400/900/485


Filter Press Fabricate Process

Functional Automatic Filter Press Equipment In Project WasteWater Treatment

Advantage

1. Labor Party preservation:
All operations can be done by machines, and one worker can supervise the work of several machines.
2. Efficiency:
Fully automatic operation, each work cycle is short, helping you to increase production capacity.
3. Long life:
The beam is made of high quality carbon steel and is not easily deformed. The filter plate is made of high quality PP material and is resistant to high pressure.

Functional Automatic Filter Press Equipment In Project WasteWater Treatment
XingMing Large System
Functional Automatic Filter Press Equipment In Project WasteWater Treatment

Pre-Sales Service


* Inquiry and consulting support.
* Sample testing support.
* Filter press technical support
* View our Factory.
* 24 hours website hot line service.


CLICK"Send Message" ~Right Away.
