15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure
Specifications
Brand Name :
Xinming
Model Number :
XMGF-240
Certification :
ISO9001, CE
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/ per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Standard Packing
Material :
Q235 Seamless steel pipe+SUS304 Screen mesh
Handling Capacity :
15-20m3/h
Weight :
0.5T
Speed :
46r/min
Feed, overflow pipe diameter :
Φ76 mm
Water content after treatment :
≤25-35% around
Dimension(L*W*H): :
2*0.75*1.46(m)
Use :
Cleaning
Usage :
Animal manure/Dung cleaning manchine
Warranty :
1 Year
Description

The Best-selling Practical Solid Liquid Separator for Cow Mmanure

Detailed introduction

The solid-liquid separator use pump conveying the dung water to the host, the host spiral squeezing dung water under dynamic drive, pushed the dung water into the screen body, constantly push discharge port, the more material, the pressure is higher of the front end. With the increasing pressure of screen body, fibrous solid by screening out and push to discharge port, when the extrusion pressure is big enough, the liquid will be squeezed and separation from the solid, through the discharge outlet, the separated solid material would be squeezed and out from the discharge port.
The solid liquid separator is continuous, dung water into the screen body unceasingly, host front filter layer piled up, mounting pressure, when pressure is big enough, the discharge port open baffle, solid is out machine.

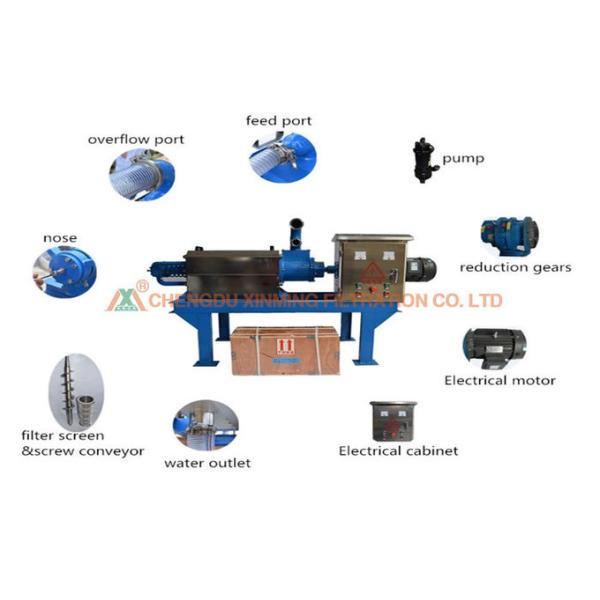

Operating Principle

1. The waste is sucked into the solid-liquid separation equipment by a pump.
2. Stainless steel spiral blades rotate, pushing waste forward
3. In the process mentioned above, the water branch of waste flows out of our V-shaped screen.
4. Stainless steel spiral blade through the forward extrusion, dehydrated waste will fall off, complete the entire treatment process.
The whole process can adjust the speed of discharging.

15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure

Technical Data

NO.
XMGF-240
Handling Capacity(T)
 15-20m3
Power(KW)
 5.5KW + 3KW PUMP
Material Q235 Seamless steel pipe+SUS304 Screen mesh
Water content after treatment ≤25-35% around
Feed, overflow pipe diameter Φ76 mm
Drain diameter Φ108 mm
The Motor Voltage(V)
380
Weight(kg)
 0.5t
Dimensions L*W*H(m)
2*0.75*1.46
Speed 46r/min

Products Show

15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure

15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure

15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure

Application

Liquid Solid Separator is ideal for removing solids from high volumes of liquid slurry and are commonly used to reduce product wastage and the cost of disposing effluent streams.

15-20m3 / H Capacity Practical Solid Liquid Separator For Cow Mmanure

Main Features

1. Solid excrement after separation is conducive to transportation and higher price for sale.
2. After the separation, the excrement is mixed into the grass bran to stir well, it can be made into compound organic fertilizer after granulation.
3. The separated excrement can be directly used to improve soil quality, and it can also be used to breed earthworms, grow mushrooms and feed fish.
4. The separated liquid can directly enter the biogas pool, the biogas production efficiency is higher, and the biogas pool will not be blocked to prolong the service life.
Best service:

OEM&ODM

Yes

Special Size and color

Yes

Packaging

Wooden cases, boxes lined with waterproof material
Customized also available

Delievery Time

Delivery Time: 20-35 days for freshly-made

Payment Terms

TT, Paypal, Western Union, etc

Transportion

Sea: MSK, MSC, CGM, OOCL, COSCO, CSCL and so on.

Air: service provided by the route fron China to all over the world

Express: DHL, TNT, UPS, FeDex, EMS, etc

After-sales

Any quality problems, will be free to fix and change
