Automatic Pull Board Industrial Filter Press High Pressure Filtering Machine
Automatic Pull Board Industrial Filter Press High Pressure Filtering Machine
Specifications
Brand Name :
XinMing
Model Number :
XAMZ220/1250-30U
Certification :
ISO9001, CE，SGS
Place of Origin :
SiChuan，China
MOQ :
1 Sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/Per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
wooden case or up to customer's requirements
Machine Name :
High Pressure Filtering Machine Automatic Pull Board Filter Press Manufacturer
Material :
PP
Type :
Fully Automatic Filter Press
Color :
Natural
Applicable Industries :
Manufacturing Plant
Condition :
Whole New
Description


High Pressure Filtering Machine Automatic Pull Board Filter Press Manufacturer


Introduction of Automatic Filter Press:

Automatic filter press is a kind of intermittent pressure filtration machine equipment, applied to various suspension of solid-liquid separation. The separation effect is good, easy to use, suitable for large filtration industry, requires a high degree of automation or centralized control, with filter pressure of 0.6 Mpa. The whole machine is designed with integration of machine, electricity and liquid, can realize automatic pressing, filtering, draining, squeezing, loosening, drawing board, and so on, with a high degree of automation, large production capacity, low liquid content in filter cake, the unit output is high, cover an area of an area small features. Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing and sewage treatment and so on all kinds of solid-liquid separation is required.
Automatic filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.

Technical Data

Model
XAMZ220/1250-30U
Filter Area(m2)
220
Plate Size(mm)
1250*1250
Cake Thickness(mm)
30
Filter Chamber Volume(L)
3285
Plate Qty(pcs)
80
Filtration Pressure(MPa)
≥0.6
Motor Power(Kw)
4.0
Weight(kg)
14652
Dimensions L*W*H(mm)
7880*1800*1600
Foundation Size L/B/D/H(mm)
6830/800/1740/925


Feature:

Due to the large pressure filter single filter plate are heavier, workers pulling plate unloading is not very convenient, the workload is bigger also. The automatic drawing board system developed by our factory, using the hydraulic braking, stone roller chain drive, translational synchronization, stone roller chain manipulator. Pull board system by motor, hydraulic motor, car pull board, sprockets, chains, etc, under the control of the relay, motor drive the hydraulic motor, through the chain drive around pull board the car finish pull board, the board system adopts the intelligent control, both tensile plate when the action is slow, fast, slow, can improve the efficiency of the drawing board and protect the function of the filter plate. Pull plate speed can be control according to the proficiency of operating personnel. This system has greatly increased the filter press a working cycle and effectively reduce the pain degree of the workers.


Applications:

——Stone Fabrications
——Mining & Energy
——Chemical Processing
——Industrial Wastewater
——Municipal Wastewater
——Power
——Lime Softening
——Metal Finishing
——Ready Mixed Concrete
——Car & Truck Washes


Automatic Pull Board Industrial Filter Press High Pressure Filtering Machine

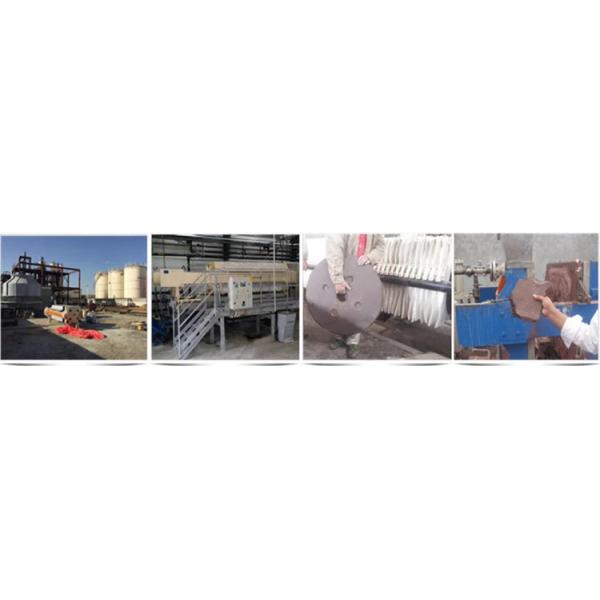

Customer Cases:
Automatic Pull Board Industrial Filter Press High Pressure Filtering Machine
Automatic Pull Board Industrial Filter Press High Pressure Filtering Machine

Certification:

Automatic Pull Board Industrial Filter Press High Pressure Filtering Machine

Our Company:
Chengdu Xinming Environmental Protection Co., Ltd is a professional equipment manufacturing enterprises , specialized in design ,manufacture and sales of various filtration equipment as well as comprehensive filtration solutions and projects. We have a sound quality assurance system and advanced testing equipment ,can be from raw material into the factory warehousing , processing , assembly , to the whole machine factory supervision and control throughout the process . we have the high-class R&D personnel , experienced workers and high qualified sales team , we are devoting to provide best products for our clients.
