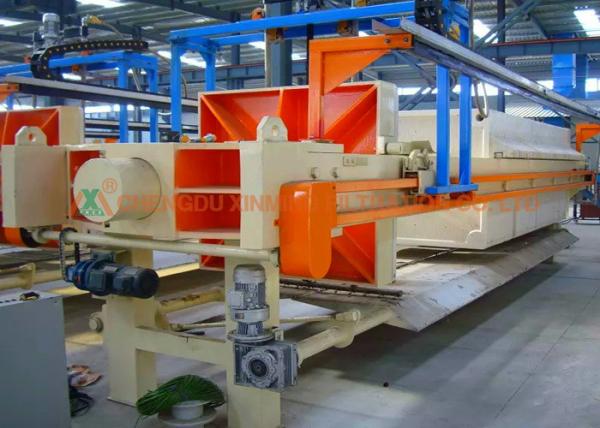

High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type
High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type
High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type
High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type
Specifications
Brand Name :
XinMing
Model Number :
XGZY1500-X
Certification :
ISO9001, CE，SGS
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/Per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Wooden case or standard export packing
Product name :
High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type
Material :
PP
Type :
Fully Automatic Filter Press
Control :
Automatic Control Box
Keywords :
Filter Press
Description :
Solid-liquid Separation Machine
Function :
Seperation
Applicable Industries :
Building Material Shops, Machinery Repair Shops
Description

High Quality Auto Chamber Once Open Filter Press Popular in America.

Automatic Chamber Filter Press:

Membrane squeezing to make the filter cakes as dry as possible.
Automatic discharging for labor saving.
Siemens PLC control.
Hydraulic pressing ensures best sealing performance.
Short processing cycle time
Slurry feeding pressure 0.6MPa-2.5MPa.

Technology Parameters

Model
 XGZY1500-X
Filter Area(m2)
 3 00
Plate Size(mm)
1500*1500
Cake Thickness(mm)
35
Filter Chamber Volume(L)
 5199
Plate Qty(pcs)
 73
Filtration Pressure(MPa)
 0.6
Motor Power(Kw)
 7.5
Weight(kg)
 28160
Dimensions L*W*H(mm)
8720*2000*1820
Foundation Size L/B/D/H(mm)
7850/1000/1990/1070

Advantage

1.Labour saving:

All the operation could be worked by the machine, one worker can supervise several machine’s working.

2. Efficiency:

Fully automatic operation, with a short working cycle at each process, helping you increase the production capacity.

3. Long lifetime:

The beam is made by best carbon steel and not easy to out of shape, filter plate is made by good PP material and can bear high pressure

Applications


Auto chamber once filter press are mainly used chemical,ceramics,petroleum,food,smelting, etc.

High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type

Customer Cases
High Pressure Membrane Chamber Automatic Filter Press Hydraulic TypeHigh Pressure Membrane Chamber Automatic Filter Press Hydraulic Type

Certification:

High Pressure Membrane Chamber Automatic Filter Press Hydraulic Type

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Filter press technical support

* View our Factory.

* 24 hours website hot line service.

PLEASE CLICK"Send Message" ~Right Now.
