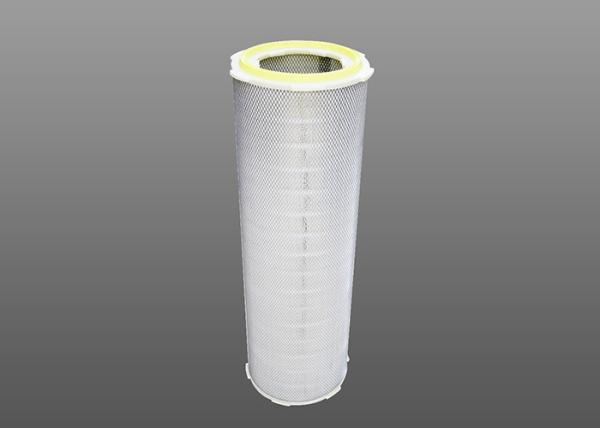

32.3cm 150PA Stainless Steel Compressed Air Cartridge Filter Element
32.3cm 150PA Stainless Steel Compressed Air Cartridge Filter Element
Specifications
Brand Name :
hw
Certification :
iso9001
Place of Origin :
hebei china
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,000 units per month
Delivery Time :
15 work days
Packaging Details :
cowhide box + five-layer board box
Product Name :
Self-cleaning Air Filter Cartridge
Dimensions (Mm) :
Ø323×Ø215×700
Filter Area (M²) :
≥18
Filter Accuracy (μM) :
≥2
Rated Air Flow (M³/Min) :
14
Marketing Type :
Ordinary Product
Application :
air compressor
Size :
Customizable
Description

Supplier Sells Multi-Layer M4-F9 Filter Media For Air Filtration System

Multi Layer F9 Filter Media Cartridge Filter Element

Product Description:


The company specializes in the production of various specifications and models of self-cleaning air filter elements and air filter cartridges for air separation equipment such as air compressors, gas turbines, and oxygen generators. The product adopts the high-quality wood pulp filter paper of the American HV company; the end cover and the inner and outer support protection net are processed and formed by the fingerprint-resistant sheet; the two-component environmentally friendly adhesive ensures that the end cover is firmly bonded and does not fall off; the high-elastic polyurethane sealing ring has high elasticity and anti-aging .

Product parameter:

product name

Specification model
Dimensions (mm)
(Outer diameter×inner diameter×height)
 Filter area (m²) Filter accuracy (μm) Filter level
Rated air flow
(M³/min)
 Initial resistance (Pa)
Self-cleaning air filter cartridge DH3266 Ø323×Ø215×660 ≥17 ≥2 F9 13 ≤150
Self-cleaning air filter cartridge DH3270 Ø323×Ø215×700 ≥18 ≥2 F9 14 ≤150
Self-cleaning air filter cartridge DH3290 Ø323×Ø215×900 ≥23 ≥2 F9 18 ≤150
Self-cleaning air filter cartridge DH32100 Ø323×Ø215×1000 ≥26 ≥2 F9 20 ≤150

Features:

(1) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(2) Excellent resistance to chemical erosion.
(3) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Applications:


Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining

FAQ:

Q1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q3.: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
