Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
Specifications
Brand Name :
BJPFM
Model Number :
PFM - Auto Mesh Belt Filter
Certification :
SGS
Place of Origin :
China
MOQ :
1 Rolls
Price :
$7.89 - $26.39 / Rolls
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Roll/Rolls per Week
Delivery Time :
7-15 work days
Packaging Details :
1.Inside use waterproofpaper+plastic bubble pad wrapped 2.outside use plastic wooden bags+ wooden case/wooden pallets 3.Also can be customized.
Other Name :
Reverse Dutch Weave Filter Belts
Material :
Stainless steel 304, 304L, 316, 316L, etc
Belt Width :
10 cm - 50 cm
Standard Length :
10 m/roll and special orders are accepted
Usage :
For Continuous Screen Changers
Feature :
Corrosion Resistance
Key Word :
Continuous belt screens
Sample :
Avilable
Description

Stainless Steel Filter Mesh Auto Mesh Belt Filter For Continuous Screen Changers

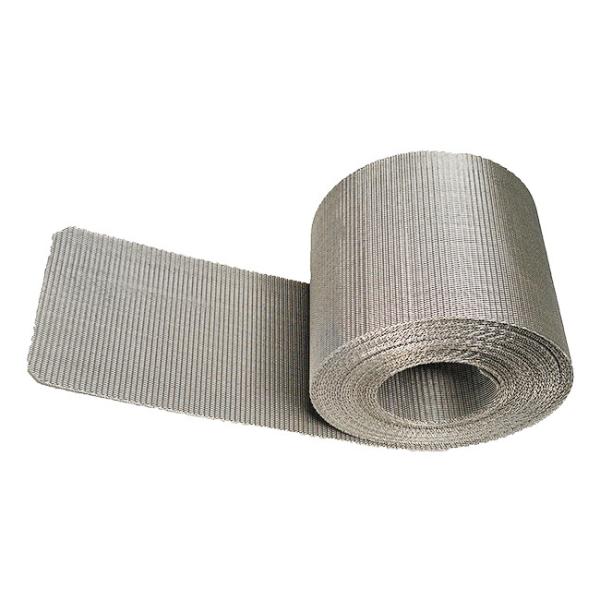

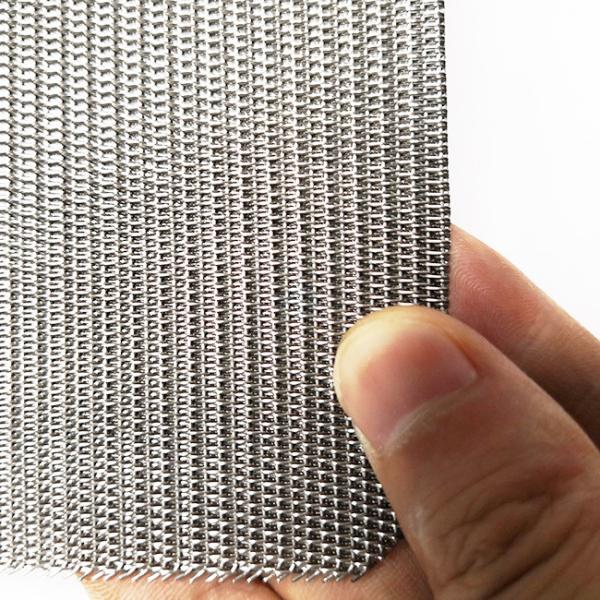

1. Stainless Steel Mesh Filter Belt Description

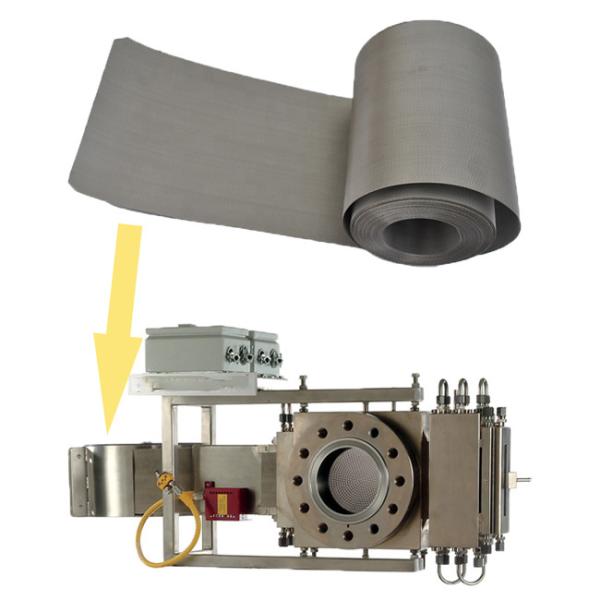

PFM offers a belt or ribbon type stainless steel wire mesh filter screen for plastic extrusion in replacement of conventional extruder screen packs. The woven mesh screen is Reverse Dutch Twill Weave Wire Mesh supplied in belt or ribbon type or band. Woven from quality Stainless steel 304, 304L, 316, 316L, etc stainless steel fine wire. Designed to work with automatic continuous screen changers used on the plastic extruders.

Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer

2. Stainless Steel Mesh Filter Belt Features

With smooth surface, high hardness, network continuously, not deformation, high-temperature resistance, corrosion resistance, the advantages of a flexible network, has excellent filtering performance.

3. Stainless Steel Mesh Filter Belt Specification

Popular Sizes of Continuous Belts Filter
Mesh Size (warp/inch × weft/inch) Wire diameter (mm) (warp × weft) The fineness of filtering (micron) Weight (kg/m2) Width (mm) *
48 × 10 0.5 × 0.5 400 3.63 40–210
63 × 18 0.4 × 0.6 220 4.14 40–210
72 × 15 0.45 × 0.55 250 4.78 40–210
100 × 16 0.35 × 0.45 190 3.87 40–210
107 × 20 0.24 × 0.60 210 3.34 40–210
120 × 16 0.35 × 0.45 180 4.49 40–210
132 × 17 0.32 × 0.45 170 4.24 40–210
152 × 24 0.27 × 0.4 160 3.73 40–210
160 × 17 0.27 × 0.45 160 2.02 40–210
170 × 18 0.27 ×0.45 160 4.01 40–210
171 × 46 0.15 × 0.30 130 2.00 40–210
180 × 20 0.27 × 0.45 170 4.29 40–210
200 × 40 0.17 × 0.27 120 2.17 40–210
240 × 40 0.15 × 0.25 70 1.98 40–210
260 × 40 0.15 × 0.27 55 2.19 40–210
290 × 76 0.09 × 0.19 40 1.27 40–210
300 × 40 0.15 × 0.25 50 2.31 40–210
300 × 80 0.15 × 0.2 35 2.49 40–210
Special specifications can be customized upon customers' requirements
* Maximum width is 500 mm.

4. Stainless Steel Mesh Filter Belt Application

​

Suitable for Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, stretch film machine, coating machine filters,
Used in plastic woven bag, plastic film industries, etc,
Widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and plastic melt filter, molding machine belt type filter conveyor industries.

Corrosion Resistant Stainless Steel Wire Mesh For Continuous Screen Changer
