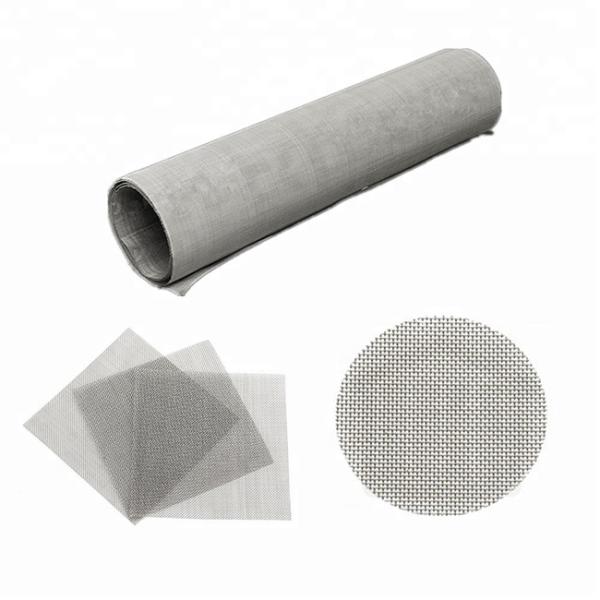

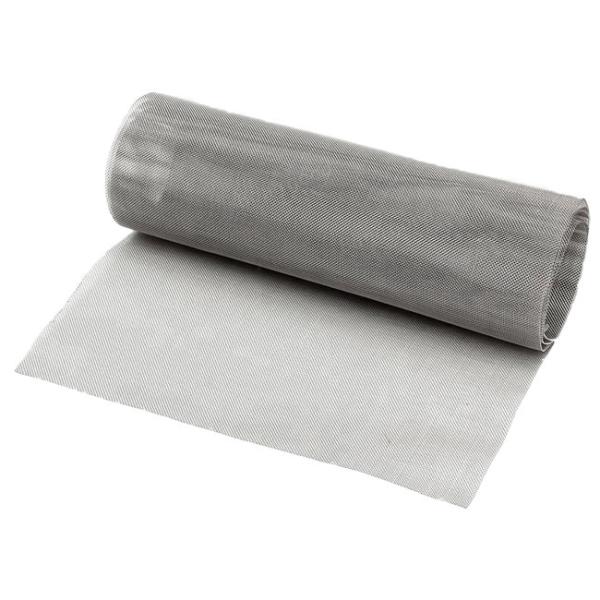

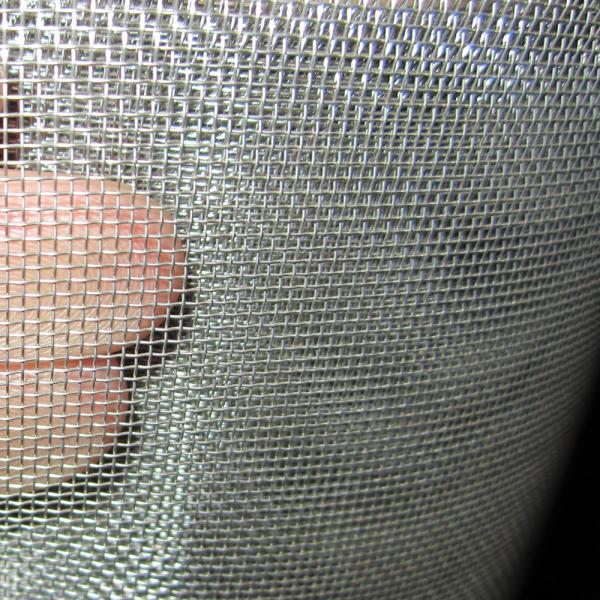

Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh
Specifications
Brand Name :
BJPFM
Model Number :
PFM - Stainless Steel Filter Mesh
Certification :
SGS
Place of Origin :
China
MOQ :
1 Square Meters
Price :
Through consultation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Square Meters per Week
Delivery Time :
7-15 work days
Packaging Details :
1. Paper tube support inside , and waterproof paper , and wooden box outside . 2. Special package can be customized as per customers' request
Material :
Stainless Steel Wire
Application :
Filters
Technique :
Woven
Weave Style :
Plain
Materials :
SS201 304 316 316L, etc
Feature :
Acid-resisting, alkali-resisting etc.
Wire Diameter :
0.018mm-2.5mm
Usage :
Printing, filter, space flight, oil, chemical industry
Description

Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Filter Wire Mesh

1. Stainless Steel Woven Filter Wire Mesh Description

Material: 201,302,304,304L,316,316L,321 and 430 etc
Wire diameter: 0.025mm-1.800mm
Mesh size: 2mesh-2800mesh(0.02~10.9mm)
Weaving method: Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave
Roll width:0.914m,1.0m,1.22m,1.5m,1.8m,2.0m, any width available at request.
Roll length:30m or 50m, any length available at request.
Characteristics: Wear-resisting, Heat-resisting, Acid-resisting, Corrosion-resisting, Tear-resisting
Usage: Mainly used for Separation and Filtration, extensively used in petroleum, chemical industry, food industry, pharmaceutical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy, etc.

Plain Weave 100 200 300 400 500 Micron Stainless Steel Woven Wire Mesh

2. Stainless Steel Woven Filter Wire Mesh Features

  • Corrosion resistance
  • Anti-acid and alkali
  • Anti-high temperature
  • Good filter performance
  • Long using life

3. Stainless Steel Woven Filter Wire Mesh Specification

Stainless Steel Square Woven Mesh
Weave
Type		 Mesh
Count		 Wire Dia.
(Inch)		 Width of Opening
(Inch)		 Open Area (%) Weigh Per 100 sq'
based on 304ss		 Opening
(Micron)
Plain 2 x 2 .080 .4200 70.6 83 10687
Plain 2 x 2 .063 .4370 76.4 51.7 11119
Plain 2 x 2 .054 .4460 79.6 37.6 11348
Plain 3 x 3 .0800 .2530 57.6 126.4 6438
Plain 3 x 3 .0720 .2610 61.3 101.9 6641
Plain 3 x 3 .0630 .2700 65.6 77.6 6870
Plain 3 x 3 .0540 .2790 70.1 57.3 7099
Plain 3 x 3 .0470 .2860 73.6 42.8 7277
Plain 3 x 3 .0410 .2923 76.7 32.5 7438
Plain 4 x 4 .1200 .1300 27.0 392.5 3308
Plain 4 x 4 .1050 .1450 33.6 309.3 3690
Plain 4 x 4 .0920 .1580 39.9 233.3 4020
Plain 4 x 4 .0800 .1700 46.2 173.8 4326
Plain 4 x 4 .0720 .0178 50.7 139.6 453
Plain 4 x 4 .0630 .1870 56.0 105.8 4758
Plain 4 x 4 .0540 .1960 61.5 77.2 4987
Plain 4 x 4 .0470 .2030 65.9 58.2 5165
Plain 4 x 4 .0410 .2090 69.9 44 5318
Plain 4 x 4 .0350 .2150 74.0 32 5471
Plain 4 x 4 .0320 .2180 76.0 26.7 5547
Plain 4 x 4 .0280 .2220 78.9 20.4 5649
Plain 4 x 4 .0250 .2250 81.0 16.3 5725
Plain 5 x 5 .0630 .1370 46.9 134.5 3486
Plain 5 x 5 .0540 .1460 53.3 97.7 3715
Plain 5 x 5 .0470 .1530 58.5 73.3 3893
Plain 5 x 5 .0410 .1590 63.2 55.4 4046
Plain 5 x 5 .0350 .1650 68.1 40.2 4198
Plain 5 x 5 .0320 .1680 70.6 33.5 4275
Plain 6 x 6 .0630 .1040 38.9 164.6 2646
Plain 6 x 6 .0540 .1130 46.0 118.9 2875
Plain 6 x 6 .0470 .1200 51.8 89.1 3053
Plain 6 x 6 .0410 .1260 57.2 67.2 3206
Plain 6 x 6 .0350 .1320 62.7 48.6 3359
Plain 6 x 6 .0320 .1350 65.6 20.7 3435
Plain 6 x 6 .0280 .1390 69.6 30.8 3537
Plain 7 x 7 .0350 .1080 57.2 57.1 2748
Plain 7 x 7 .0320 .1110 60.4 47.5 2824
Plain 7 x 7 .0280 .1150 64.8 36.2 2926
Plain 8 X 8 .0630 .062 24.6 218.5 1578
Plain 8 X 8 .0540 .071 32.3 164.3 1807
Plain 8 X 8 .0470 .0780 38.9 122.1 1985
Plain 8 X 8 .0410 .0840 45.2 91.5 2137
Plain 8 X 8 .0350 .0900 51.8 65.1 2290
Plain 8 X 8 .0320 .0930 55.4 54.6 2366
Plain 8 X 8 .0280 .0970 60.2 47.1 2468
Plain 8 X 8 .0250 .1000 64.0 32.9 2545
Plain 9 X 9 .0410 .0700 39.7 104.2 1781
Plain 9 X 9 .0350 .0760 46.8 74.7 1934
Plain 9 X 9 .0320 .0790 50.6 62 2010
Plain 9 X 9 .0280 .0830 55.8 47.1 2112
Plain 9 X 9 .0250 .0860 59.9 37.3 2188
Plain 9 X 9 .0230 .0880 62.7 31.4 2239
Plain 10 x 10 .0470 .0530 28.1 149.9 1349
Plain 10 x 10 .0410 .0590 34.8 117.5 1501
Plain 10 x 10 .0350 .0650 42.3 83.9 1654
Plain 10 x 10 .0320 .0680 46.2 69.5 1730
Plain 10 x 10 .0280 .0720 51.8 52.6 1832
Plain 10 x 10 .0250 .0750 56.3 41.6 1908
Plain 10 x 10 .0230 .0770 59.3 35.1 1959
Plain 10 x 10 .0200 .0800 64.0 26.4 2036
Plain 11 x 11 .0320 .0590 42.1 77.2 1501
Plain 11 x 11 .0280 .0630 48.0 58.4 1603
Plain 11 x 11 .0250 .0660 52.7 46.1 1679
Plain 11 x 11 .0230 .0680 56.0 38.8 1730
Plain 11 x 11 .0200 .0710 61.0 29.1 1807
Plain 11 x 11 .0180 .0730 64.5 23.5 1857
Plain 12 x 12 .0320 .0510 37.5 85.1 1298
Plain 12 x 12 .0280 .0550 43.6 64.1 1399
Plain 12 x 12 .0250 .0580 48.4 50.6 1476
Plain 12 x 12 .0230 .0600 51.8 42.6 1527
Plain 12 x 12 .0200 .0630 57.2 31.9 1603
Plain 12 x 12 .0180 .0650 60.8 25.8 1654
Plain 14 x 14 .0280 .0430 36.2 76.3 1094
Plain 14 x 14 .0250 .0460 41.5 59.9 1170
Plain 14 x 14 .0230 .0480 45.2 50.3 1221
Plain 14 x 14 .0200 .0510 51.0 37.6 1298
Plain 14 x 14 .0180 .0530 55.1 37.6 1349
Plain 14 x 14 .0170 .0540 57.2 26.9 1374
Plain 14 x 14 .0090 .0620 76.4 9 1578
Plain 16 x 16 .0280 .0345 30.5 84.4 878
Plain 16 x 16 .0250 .0375 36.0 69.6 954
Plain 16 x 16 .0230 .0395 39.9 58.3 1005
Plain 16 x 16 .0200 .0425 46.2 43.4 1081
Plain 16 x 16 .0180 .0445 50.7 34.8 1132
Plain 16 x 16 .0160 .0465 55.4 27.4 1183
Plain 16 x 16 .0090 .0535 73.3 8.6 1361
Plain 18 x 18 .0250 .0306 30.3 75.8 779
Plain 18 x 18 .0230 .0326 34.4 66.7 830
Plain 18 x 18 .0200 .0356 41.1 49.5 906
Plain 18 x 18 .0180 .0376 45.8 39.6 957
Plain 18 x 18 .0170 .0386 48.3 35.1 982
Plain 18 x 18 .0160 .0396 50.8 31 1008
Plain 18 x 18 .0150 .0406 53.4 27.1 1033
Plain 18 x 18 .0140 .0416 56.1 23.5 1059
Plain 18 x 18 .0135 .0421 57.4 21.8 1071
Plain 18 x 18 .0090 .0466 70.2 9.6 1186
Plain 20 x 20 .0280 .0220 19.4 110.4 560
Plain 20 x 20 .0250 .0250 25.0 85.9 636
Plain 20 x 20 .0230 .0270 29.2 71.5 687
Plain 20 x 20 .0200 .0300 36.0 55.8 763
Plain 20 x 20 .0180
