Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
Specifications
Brand Name :
BJPFM
Model Number :
PFM-SS Mesh
Certification :
SGS
Place of Origin :
China
MOQ :
1Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000m/Month
Delivery Time :
5-8days after payment
Packaging Details :
pp bag woven bag or wooden case
Product name :
18 20 60 Mesh 304 Stainless Steel Plain Weave Filter Wire Mesh With Nickel
Material :
304 316L stainless steel with nickel
Mesh shape :
square hole
Mesh count :
1-635mesh/inch
Application :
industrial filtration or printing
Package :
weave bag or plywood case
Description

18 20 60 Mesh 304 Stainless Steel Plain Weave Filter Wire Mesh With Nickel

1. Stainless Steel Mesh With Nickel Description

Stainless steel mesh is different from general mesh products. But there are strict series of the mesh size.

Moreover, it has the function of classifying and screening the object particles, which conforms to the network products approved by the industry, institutions, and standards.

The screen does not speak of "mesh number", "mesh number" is just a habit of people to describe screen, which is difficult to overcome for a while

The screen is different from the general mesh products, that is, it has a strict mesh size, rather than using the "mesh" expression

The screen size is not isolated, it has a series of mesh size composition, the purpose is to grade screening, only such a network product, can be called on the screen

Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel

Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel

2. Stainless Steel Mesh With Nickel Features

  • It is resistant to weak corrosive media such as air, steam, water and chemically corrosive media such as acid, alkali and salt
  • High strength and long service life
  • Can be processed into other filter products

3. Stainless Steel Mesh With Nickel Specification

Stainless Steel Square Woven Mesh

Weave
Type

Mesh
Count

Wire Dia.
(Inch)

Width of Opening
(Inch)

Open Area
(%)

Weigh Per 100 sq'
based on 304ss

Opening
(Micron)

Plain

2 x 2

.063

.4370

76.4

51.7

11119

Plain

3 x 3

.0540

.2790

70.1

57.3

7099

Plain

4 x 4

.0470

.2030

65.9

58.2

5165

Plain

5 x 5

.0410

.1590

63.2

55.4

4046

Plain

6 x 6

.0350

.1320

62.7

48.6

3359

Plain

6 x 6

.0320

.1350

65.6

20.7

3435

Plain

7 x 7

.0320

.1110

60.4

47.5

2824

Plain

7 x 7

.0280

.1150

64.8

36.2

2926

Plain

8 X 8

.0250

.1000

64.0

32.9

2545

Plain

9 X 9

.0250

.0860

59.9

37.3

2188

Plain

9 X 9

.0230

.0880

62.7

31.4

2239

Plain

10 x 10

.0250

.0750

56.3

41.6

1908

Plain

11 x 11

.0230

.0680

56.0

38.8

1730

Plain

11 x 11

.0200

.0710

61.0

29.1

1807

Plain

12 x 12

.0200

.0630

57.2

31.9

1603

Plain

14 x 14

.0200

.0510

51.0

37.6

1298

Plain

16 x 16

.0180

.0445

50.7

34.8

1132

Plain

18 x 18

.0170

.0386

48.3

35.1

982

Plain

20 x 20

.0200

.0300

36.0

55.8

763

Plain

30 x 30

.0120

.0213

40.8

29.7

542

Plain

30 x 30

.0095

.0238

51.0

18.2

606

Plain

40 x 40

.0100

.0150

36.0

27.9

382

Plain

50 x 50

.0055

.0145

52.6

10.1

369

Plain

60 x 60

.0060

.0107

41.2

14.8

272

Plain

60 x 60

.0045

.0122

53.3

8.1

310

Plain

80 x 80

.0055

.0070

31.4

17.1

178

Plain

100x100

.0045

.0055

30.3

14.3

140

Plain

100x100

.0040

.0060

36.0

11.1

153

Plain

120x120

.0026

.0058

47.3

5

148

Plain

150x150

.0026

.0041

37.4

7.2

104

Plain

165x165

.0019

.0042

47.1

4.2

107

Plain

180x180

.0023

.0033

34.7

7.5

84

Plain

200x200

.0019

.0030

60.6

3.6

77

Plain

230x230

.0014

.0029

46.0

3.4

74

Plain

250x250

.0016

.0024

36.0

4.3

61

Twill

270x270

.0016

.0021

32.2

4.8

53

Plain

300x300

.0012

.0018

29.7

3

46

Twill

325x325

.0014

.0017

30.0

4.3

43

Twill

400x400

.0011

.0014

31.4

3.4

36

Twill

500x500

.0010

.0010

25.0

*

25

Twill

635x635

.0008

.0008

25.0

*

20

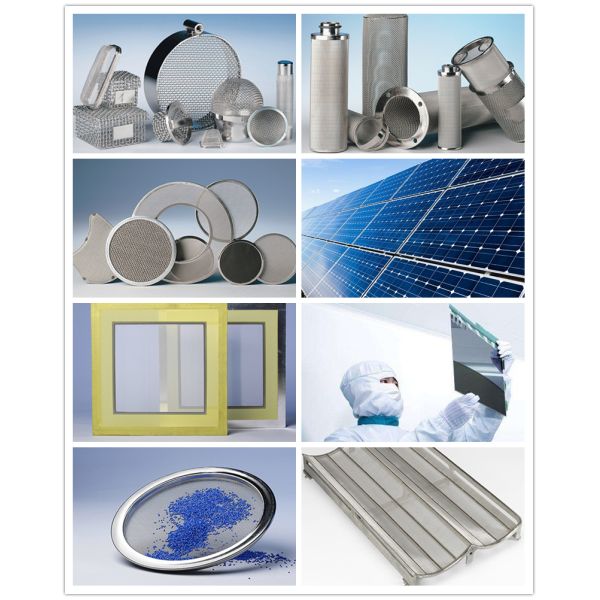

4. Stainless Steel Mesh With Nickel Application

Stainless steel itself has good corrosion resistance, and it can still maintain its excellent physical and mechanical properties under high temperature.

It is also widely used in the 3D printing field. It can also be widely used in annealing furnace mesh belt and baking furnace mesh belt of the glass products industry.

Food processing industry, dehydrated vegetables, frozen food single freezing machine pre-processing network.

Durable Plain Weave Wire Mesh 18 20 60 Mesh Stainless Steel Wire Screen With Nickel
