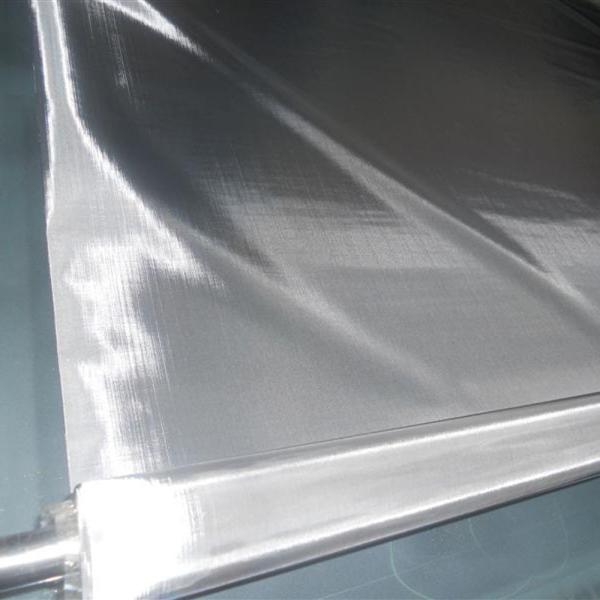

316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
Specifications
Brand Name :
BJPFM
Model Number :
PFM-SSM-635mesh 22 micron
Certification :
SGS
Place of Origin :
China
MOQ :
1Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000m/Month
Delivery Time :
3-7 days after payment received
Packaging Details :
PP bag,woven bag /carton case
Product name :
635mesh 20micron 316L stainless steel filter wire mesh for High end precision filtration industry
Material :
stainless steel 316L
Size :
can be customized
Mesh opening :
0.02mm
MOQ :
1M
Package :
woven bag
Usage :
High end precision filtration industry
Description

635mesh 20micron 316L stainless steel filter wire mesh for High end precision filtration industry

1. Silk Screen Printing Mesh Description

635 mesh stainless steel mesh is made of high-quality stainless steel wire stretched to the specified wire diameter by wire drawing machine under specific high-temperature process conditions , and then woven by weaving machine in constant temperature , dust-free and clean workshop

316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration

316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration

2. Silk Screen Printing Mesh Features

Good corrosion resistance, strong and durable , with acid resistance, alkali resistance , wear resistance and other properties High finish , no surface treatment , easy to maintain High temperature oxidation resistance , 304 stainless steel mesh withstand temperature of 800 ℃ High strength , strong tension, toughness and wear resistance , durable

3. Silk Screen Printing Mesh Specification

Stainless Steel Square Woven Mesh

Weave
Type

Mesh
Count

Wire Dia.
(Inch)

Width of Opening
(Inch)

Open Area
(%)

Weigh Per 100 sq'
based on 304ss

Opening
(Micron)

Plain

2 x 2

.063

.4370

76.4

51.7

11119

Plain

3 x 3

.0540

.2790

70.1

57.3

7099

Plain

4 x 4

.0470

.2030

65.9

58.2

5165

Plain

5 x 5

.0410

.1590

63.2

55.4

4046

Plain

6 x 6

.0350

.1320

62.7

48.6

3359

Plain

6 x 6

.0320

.1350

65.6

20.7

3435

Plain

7 x 7

.0320

.1110

60.4

47.5

2824

Plain

7 x 7

.0280

.1150

64.8

36.2

2926

Plain

8 X 8

.0250

.1000

64.0

32.9

2545

Plain

9 X 9

.0250

.0860

59.9

37.3

2188

Plain

9 X 9

.0230

.0880

62.7

31.4

2239

Plain

10 x 10

.0250

.0750

56.3

41.6

1908

Plain

11 x 11

.0230

.0680

56.0

38.8

1730

Plain

11 x 11

.0200

.0710

61.0

29.1

1807

Plain

12 x 12

.0200

.0630

57.2

31.9

1603

Plain

14 x 14

.0200

.0510

51.0

37.6

1298

Plain

16 x 16

.0180

.0445

50.7

34.8

1132

Plain

18 x 18

.0170

.0386

48.3

35.1

982

Plain

20 x 20

.0200

.0300

36.0

55.8

763

Plain

30 x 30

.0120

.0213

40.8

29.7

542

Plain

30 x 30

.0095

.0238

51.0

18.2

606

Plain

40 x 40

.0100

.0150

36.0

27.9

382

Plain

50 x 50

.0055

.0145

52.6

10.1

369

Plain

60 x 60

.0060

.0107

41.2

14.8

272

Plain

60 x 60

.0045

.0122

53.3

8.1

310

Plain

80 x 80

.0055

.0070

31.4

17.1

178

Plain

100x100

.0045

.0055

30.3

14.3

140

Plain

100x100

.0040

.0060

36.0

11.1

153

Plain

120x120

.0026

.0058

47.3

5

148

Plain

150x150

.0026

.0041

37.4

7.2

104

Plain

165x165

.0019

.0042

47.1

4.2

107

Plain

180x180

.0023

.0033

34.7

7.5

84

Plain

200x200

.0019

.0030

60.6

3.6

77

Plain

230x230

.0014

.0029

46.0

3.4

74

Plain

250x250

.0016

.0024

36.0

4.3

61

Twill

270x270

.0016

.0021

32.2

4.8

53

Plain

300x300

.0012

.0018

29.7

3

46

Twill

325x325

.0014

.0017

30.0

4.3

43

Twill

400x400

.0011

.0014

31.4

3.4

36

Twill

500x500

.0010

.0010

25.0

*

25

Twill

635x635

.0008

.0008

25.0

*

20

4. Silk Screen Printing Mesh Application

It is widely used in petrochemical , marine , pharmaceutical and other highly corrosive environment , aerospace, scientific research , medicine and other high-end fine industries , as well as food , construction , mining and other fields , machinery manufacturing and other industries

316L Stainless Steel Wire Mesh 635 Mesh 20 Micron For High End Precision Filtration
