25 - 1000 Micron Nylon Filter Mesh For Petroleum / Chemical / Printing Industry

Specifications

Brand Name :

BJPFM

Model Number :

PFM - Nylon Filter Mesh Screen

Certification :

SGS FDA

Place of Origin :

China

MOQ :

10 Meters

Price :

Negotiate

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

100000 Meter/Meters per Month

Delivery Time :

7-10 work days

Packaging Details :

1. 30-70m/roll in PVC bag 2. 2-8 rolls per carton 3. waterproof bags outside 4. package belt strengthen

Product name :

25 50 100 150 200 300 400 500 600 800 1000 Micron Nylon Filter Mesh Screen

Material :

Nylon monofilament

Type :

Filter Disc, filter cloth, filter elements, filter disc, filter cylinder

Width :

0.6m-3.65m

Length :

30-70m/roll or as request

Thickness :

53-1100um

Filter rating :

27%-80%

Mesh count :

4T-150T

Mesh opening :

32-1931um

Feature :

Heat Resistance, High Tension Low Elongation

Description

25 50 100 150 200 300 400 500 600 800 1000 Micron Nylon Filter Mesh Screen

1. Nylon Filter Mesh Screen Description

Product Name	Nylon Filter Mesh Screen
Material	100% nylon monofilament
Color	white, black or customized
Weave type	plain woven
Common Width	100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized
Roll length	30-100m or customized
Mesh Count/cm	4-240T
Mesh Count/inch	10-600 mesh/inch
Thread diameter	35-550 micron
Mesh Opening	5-2000 micron
Thickness	60-1100micron
Samples	1m free

The nylon filter mesh is a chemical fiber woven mesh machined by 100% monofilament nylon fiber through wire mesh processing. It is acid and alkali resistant and has good corrosion resistance. A material that has low resistance, can be repeatedly cleaned and is extremely economical. Widely used in industrial filtration, petroleum, chemical, printing, and other products with complete specifications, high quality, special specifications can be customized.

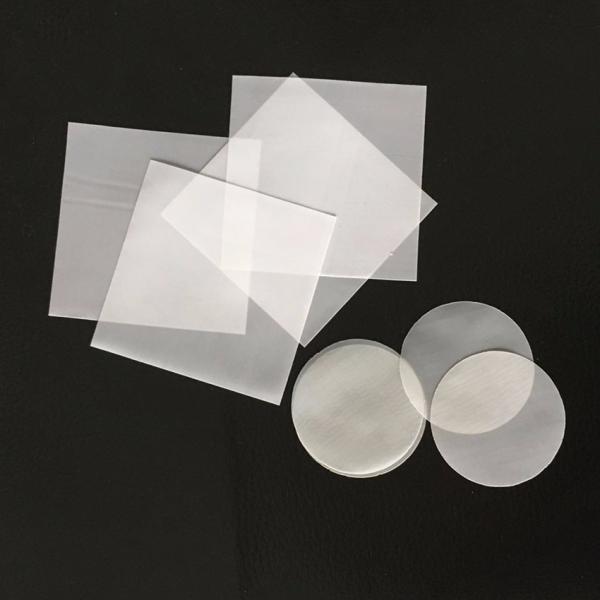

25 - 1000 Micron Nylon Filter Mesh For Petroleum / Chemical / Printing Industry

2. Nylon Filter Mesh Screen Features

1. Faster turnaround time from the screen room to the pressroom

2. Good diathermancy

3. High air permeability

4. Acid resistance and Alkali resistance

5. Long working life

6. Hard wear

7. Three factories for manufacturing

8. Imported weaving machines from Switzerland and Italy

3. Nylon Filter Mesh Screen Specification

Model	Specification (/cm)	Mesh count (mesh/inch)	Thread Diameter(um)	Mesh opening(um)	Open Area(%)	Thickness (um)	Weight (g/m2)
NL4/1931	4	10	550	1931	60	1100	251
NL5/1485	5	13	500	1485	55	1000	270
NL5/1535	5	13	450	1535	59	900	218
NL6/1254	6	15	400	1254	57	800	199
NL7/1068	7	18	350	1068	56	700	183
NL8/891	8	20	350	891	51	700	203
NL8/990	8	20	250	990	63	500	104
NL9/853	9	24	250	853	59	500	125
NL10/743	10	25	250	743	55	500	130
NL10/693	10	25	300	693	48	600	187
NL12/578	12	30	250	578	48	500	156
