1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry
Specifications
Brand Name :
BJPFM
Model Number :
PFM- Sintered Filter Disc
Certification :
SGS
Place of Origin :
China
MOQ :
10 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
100000 Pcs/Month
Delivery Time :
7-15 days after payment
Packaging Details :
Standard export packing in carton or wooden box, or as your specific requirement.
Product name :
Sintered Filter Disc
Usage :
Air Filter, Liquid Filter
Material :
Stainless steel 304, 316, 316L, Hastelloy, Monel, Incone
Thickness :
1-5mm, 1.7MM
Filter Rate :
1-400um
Technique :
Sintered Wire Mesh
Feature :
Corrosion Resistance
Application :
Kinds Filtration Industry
Description

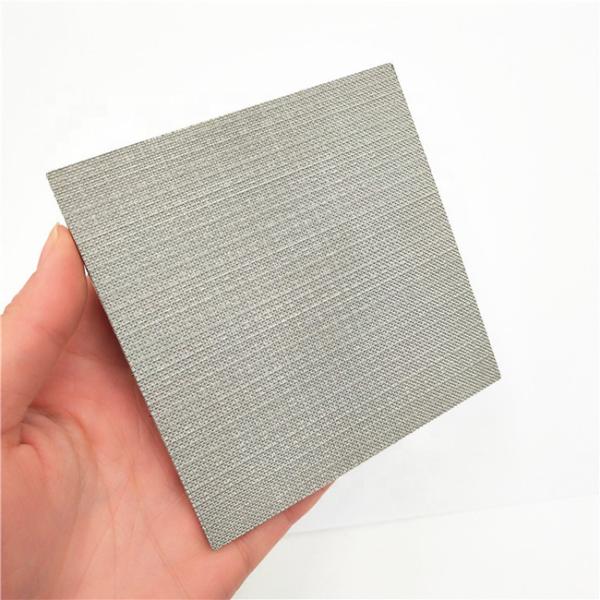

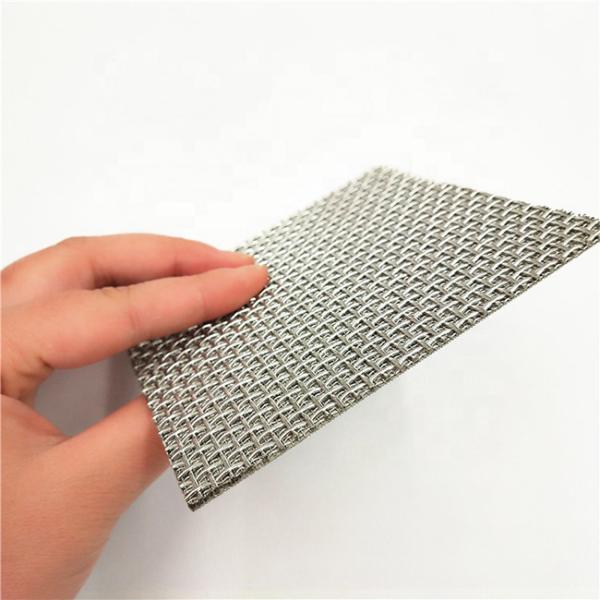

1 - 400 micron Stainless Steel Wire Mesh Sintered Filter Disc

1. Sintered Filter Disc Description

The multi-layer sintered metal mesh is a new type of filter material which is made of a multi-layer metal woven wire mesh and is manufactured by a special lamination pressing and vacuum sintering process and has high mechanical strength and an overall rigid structure.

1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry

2. Sintered Filter Disc Features

1. High strength and good rigidity: It has high mechanical strength and compressive strength, and has good processing, welding and assembly performance and is easy to use.

2. Uniform and stable accuracy: Uniform filtration performance can be achieved for all filtration precisions, and the mesh does not change during use.

3. Wide use environment: It can be used in the temperature environment of -200 ° C ~ 600 ° C and filtration of acid and alkali environment.

4. Excellent cleaning performance: good counter-current cleaning effect, can be used repeatedly, long life (can be washed by countercurrent water, filtrate, ultrasonic, melting, baking, etc

1 - 400 Micron Sintered Stainless Steel Filter Disc For Chemical Fiber Film Industry

3. Sintered Filter Disc Specification

Material
Stainless Steel wire 304 316 316L and FeCrAl, 310S, Monel 400, Inconel 600 etc.
filter rating
0.5-200um
layers
5 layers and 6 layers (standard layers 5)
Filter disc shape
round, square, oval, ring, special shape can be customized.

4. Sintered Filter Disc Application

1. Precision filtration of various hydraulic oil lubricants in the machinery industry;

2. Filtration and purification of various polymer melts in the chemical fiber film industry, various high temperature in the petrochemical industry, filtration of corrosive liquids, filtration, washing and drying of materials in the pharmaceutical industry;

3. Application of gas homogenization in the powder industry, fluidized plates in the steel industry;

4. Sounders in explosion-proof electrical appliances, etc.
