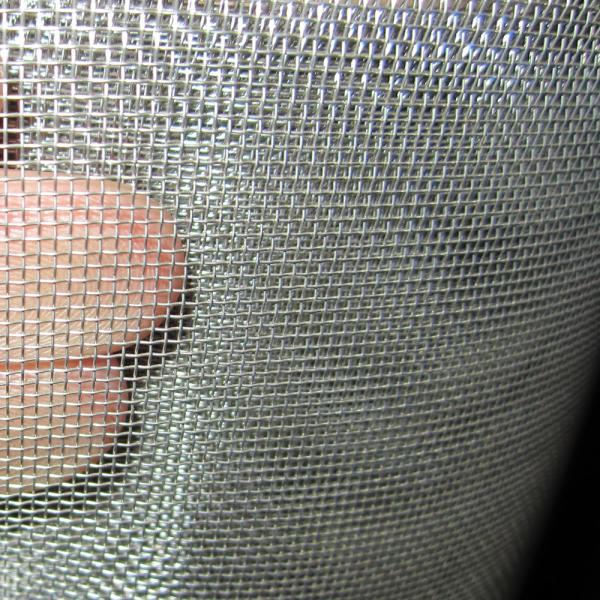

Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
Specifications
Brand Name :
BJPFM
Model Number :
PFM-SS-Thick mesh
Certification :
ISO9000
Place of Origin :
China
MOQ :
1Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000m/Month
Delivery Time :
5-8days after payment
Packaging Details :
Weave bag or plywood case
Product name :
5 10 16 18 20 Mesh 304 Stainless Steel Plain Weave Square hole Thick Wire Mesh For Mineral Sieving
Usage :
Solid Filter Mineral Sieving
Type :
wire mesh filter,woven mesh/etching type
Thickness :
20-2000um metal filter mesh
Filter rating :
27%-99% Filter Mesh
Length :
30m/roll
Material :
stainless steel,316L,Carbon steel
Hole shape :
Square
Description

5 10 16 18 20 Mesh 304 Stainless Steel Plain Weave Square hole Thick Wire Mesh For Mineral Sieving

1. Stainless Steel Square Mesh Description

Stainless steel filter screen mesh is made of stainless steel wire , the diameter of the wire is thick and thin , the mesh is big and small , and there are many kinds

There are many weave types of stainless steel square hole mesh , the most common are square hole plain and square hole twill woven mesh

Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving

Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving

2. Stainless Steel Square Mesh Features

Stainless steel has excellent corrosion resistance , atmospheric corrosion resistance and high temperature strength , which can be used in the condition of cauku

Precise structure, even mesh , good filtering accuracy , wear resistance and high temperature resistance

3. Stainless Steel Square Mesh Specification

Stainless Steel Square Woven Mesh

Weave
Type

Mesh
Count

Wire Dia.
(Inch)

Width of Opening
(Inch)

Open Area
(%)

Weigh Per 100 sq'
based on 304ss

Opening
(Micron)

Plain

2 x 2

.063

.4370

76.4

51.7

11119

Plain

3 x 3

.0540

.2790

70.1

57.3

7099

Plain

4 x 4

.0470

.2030

65.9

58.2

5165

Plain

5 x 5

.0410

.1590

63.2

55.4

4046

Plain

6 x 6

.0350

.1320

62.7

48.6

3359

Plain

6 x 6

.0320

.1350

65.6

20.7

3435

Plain

7 x 7

.0320

.1110

60.4

47.5

2824

Plain

7 x 7

.0280

.1150

64.8

36.2

2926

Plain

8 X 8

.0250

.1000

64.0

32.9

2545

Plain

9 X 9

.0250

.0860

59.9

37.3

2188

Plain

9 X 9

.0230

.0880

62.7

31.4

2239

Plain

10 x 10

.0250

.0750

56.3

41.6

1908

Plain

11 x 11

.0230

.0680

56.0

38.8

1730

Plain

11 x 11

.0200

.0710

61.0

29.1

1807

Plain

12 x 12

.0200

.0630

57.2

31.9

1603

Plain

14 x 14

.0200

.0510

51.0

37.6

1298

Plain

16 x 16

.0180

.0445

50.7

34.8

1132

Plain

18 x 18

.0170

.0386

48.3

35.1

982

Plain

20 x 20

.0200

.0300

36.0

55.8

763

Plain

30 x 30

.0120

.0213

40.8

29.7

542

Plain

30 x 30

.0095

.0238

51.0

18.2

606

Plain

40 x 40

.0100

.0150

36.0

27.9

382

Plain

50 x 50

.0055

.0145

52.6

10.1

369

Plain

60 x 60

.0060

.0107

41.2

14.8

272

Plain

60 x 60

.0045

.0122

53.3

8.1

310

Plain

80 x 80

.0055

.0070

31.4

17.1

178

Plain

100x100

.0045

.0055

30.3

14.3

140

Plain

100x100

.0040

.0060

36.0

11.1

153

Plain

120x120

.0026

.0058

47.3

5

148

Plain

150x150

.0026

.0041

37.4

7.2

104

Plain

165x165

.0019

.0042

47.1

4.2

107

Plain

180x180

.0023

.0033

34.7

7.5

84

Plain

200x200

.0019

.0030

60.6

3.6

77

Plain

230x230

.0014

.0029

46.0

3.4

74

Plain

250x250

.0016

.0024

36.0

4.3

61

Twill

270x270

.0016

.0021

32.2

4.8

53

Plain

300x300

.0012

.0018

29.7

3

46

Twill

325x325

.0014

.0017

30.0

4.3

43

Twill

400x400

.0011

.0014

31.4

3.4

36

Twill

500x500

.0010

.0010

25.0

*

25

Twill

635x635

.0008

.0008

25.0

*

20

4. Stainless Steel Square Mesh Application

1. It is used for screening and filtering in acid and alkali environment.

2. Petroleum industry as mud net, chemical fiber industry as screen screen, electroplating industry as pickling net.

3. It is used in industry and construction industry to screen sand, liquid and gas.

4. Paper and printing industry

Stainless Steel Industrial Filter Mesh / Thick Wire Mesh For Mineral Sieving
