Specifications
Brand Name :
BJPFM
Model Number :
PFM-SS-Sieve
Certification :
SGS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
5000pcs/Month
Delivery Time :
5-8days after payment received
Packaging Details :
PP bag and carton case
Product name :
10 30 50 60 80 Micron Stainless Steel Fine Mesh Laboratory Test Sieve
Material :
Stainless Steel Wire,316l,304 Aluminum alloy
Sieve diameter :
5cm 6cm 8cm 10cm 15cm 20cm 25cm 30cm 40cm or customize
MOQ :
1PC
Technique :
Woven
Type :
Weave Wire Mesh
Wire diameter :
0.018-2.03mm
Mesh opening :
1-4000um
Description

10 30 50 60 80 Micron Stainless Steel Fine Mesh Laboratory Test Sieve

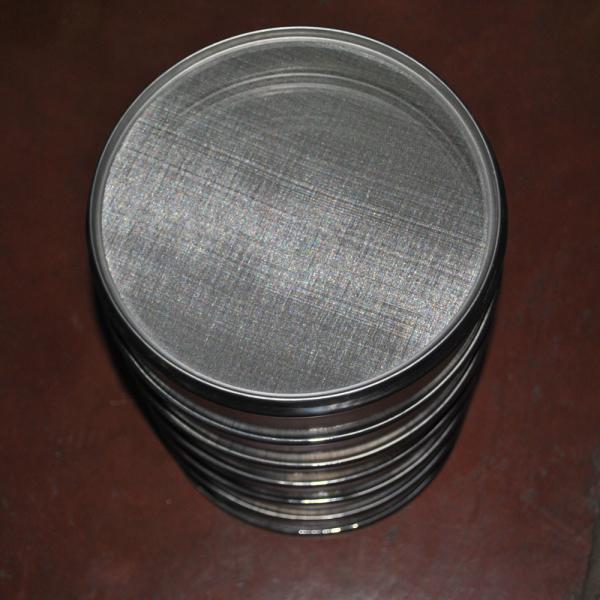

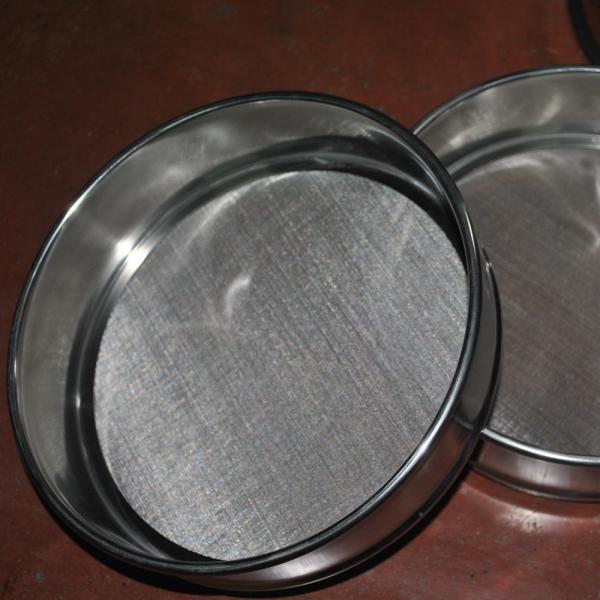

1. Stainless Steel Fine Mesh Test Sieve Description

Stainless steel flour screen is mainly composed of external frame and stainless steel filter screen

Flour screen is a specially designed screening equipment for potato starch, corn starch , wheat starch , cellulose , soybean , peanut protein , flour , cassava starch and other starch materials and derivatives of starch materials

Laboratory Wire Mesh Sieve , 10 30 50 60 80 Micron Stainless Steel Fine Mesh Sieve

Laboratory Wire Mesh Sieve , 10 30 50 60 80 Micron Stainless Steel Fine Mesh Sieve

2. Stainless Steel Fine Mesh Test Sieve Features

Any particle , powder and mucus can be screened within a certain range

Screening and filtering can be as small as 5 microns , with high filtering efficiency , exquisite and durable design , easy screen changing , simple operation , convenient cleaning and long service life

3. Stainless Steel Fine Mesh Test Sieve Specification

Mesh Wire Dia(mm) Opening(mm) Material(AISI)
2mesh*2mesh 1.8 10.9 304 or 316
3mesh*3mesh 1.5 6.96 304 or 316
4mesh*4mesh 1 5.35 304 or 316
7mesh*7mesh 1 2.63 304 or 316
10mesh*10mesh 0.6 1.94 304 or 316
12mesh*12mesh 0.5 1.62 304 or 316
16mesh*16mesh 0.4 1.19 304 or 316
16mesh*16mesh 0.35 1.24 304 or 316
18mesh*18mesh 0.35 1.06 304 or 316
20mesh*20mesh 0.4 0.87 304 or 316
24mesh*24mesh 0.26 0.8 304 or 316
30mesh*30mesh 0.3 0.55 304 or 316
35mesh*35mesh 0.17 0.56 304 or 316
40mesh*40mesh 0.23 0.4 304 or 316
50mesh*50mesh 0.2 0.31 304 or 316
60mesh*60mesh 0.15 0.27 304 or 316
70mesh*70mesh 0.12 0.24 304 or 316
80mesh*80mesh 0.13 0.19 304 or 316
90mesh*90mesh 0.1 0.16 304 or 316
100mesh*100mesh 0.09 0.15 304 or 316
120mesh*120mesh 0.063 0.12 304 or 316
150mesh*150mesh 0.053 0.11 304 or 316
180mesh*180mesh 0.053 0.09 304 or 316
200mesh*200mesh 0.04 0.07 304 or 316
250mesh*250mesh 0.04 0.063 316
300mesh*300mesh 0.04 0.044 316
325mesh*325mesh 0.035 0.043 316L
350mesh*350mesh 0.03 0.042 316L
400mesh*400mesh 0.03 0.33 316L
450mesh*450mesh 0.028 0.028 316L
500mesh*500mesh 0.025 0.026 316L

4. Stainless Steel Fine Mesh Test Sieve Application

Chemical industry resins , coatings , industrial drugs , cosmetics , paints , Chinese medicine powder , etc
Food industry powdered sugar , starch , salt , rice flour , milk powder , soy milk , egg powder , soy sauce , juice , etc
Metal, metallurgical mining aluminum powder , lead powder , copper powder , ore , alloy powder , electrode powder , manganese dioxide , electrolytic copper powder , electromagnetic material , abrasive powder , refractory material , kaolin , lime , alumina , heavy carbonic acid Calcium , quartz sand , etc
Other industries waste oil , wastewater , dyeing and finishing wastewater , paper making , additives , activated carbon , etc

Laboratory Wire Mesh Sieve , 10 30 50 60 80 Micron Stainless Steel Fine Mesh Sieve
