Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration
Specifications
Brand Name :
BJPFM
Model Number :
PFM-SSFM-25um 35um 50um
Certification :
SGS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
100000/Month
Delivery Time :
5-8days after payment received
Packaging Details :
plastic bag and carton case
Product name :
25 35 50 Micron Metal Stainless Steel Dutch Filter Mesh Round Tube Strainer
Color :
Silver
Shape :
Customers' Request,Cylindrical,can be customized
Technique :
Woven Wire Mesh,Polishing
Weave style :
plain/twill/dutch weave
Size :
as your required
Material :
stainless steel,ss 316L powder porous metal
Application :
Filtration
Description

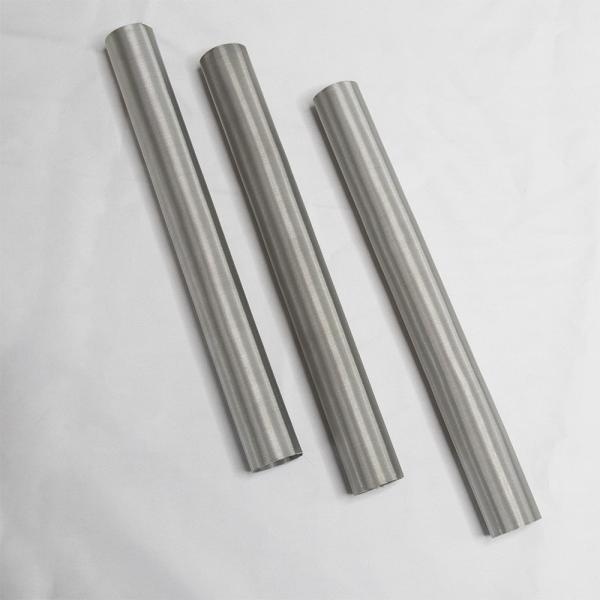

25 35 50 Micron Metal Stainless Steel Dutch Filter Mesh Round Tube Strainer

1. Stainless Steel Dutch Mesh Tube Description


The stainless steel mat filter pipe is a stainless steel deep processing product composed of mat filter welding , which can be used for high-precision filtration

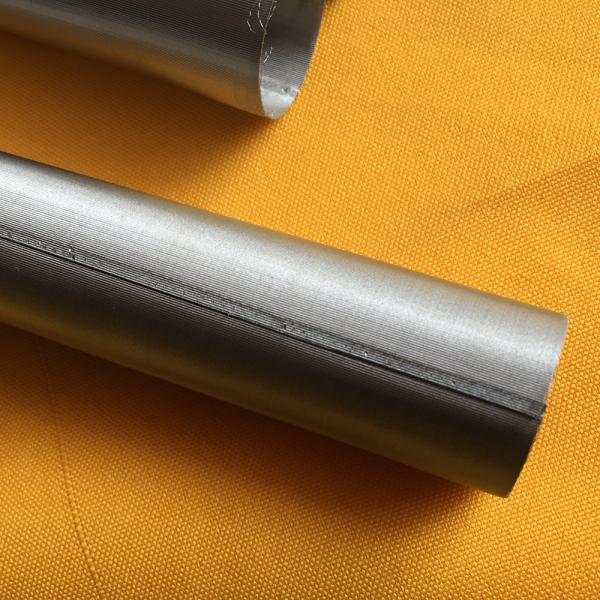

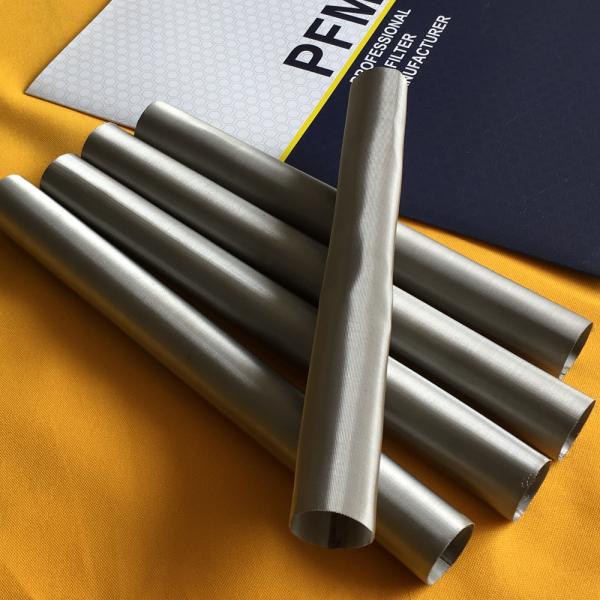

Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration

Strong Tensile 25 35 50 Micron Stainless Steel Dutch Filter For High Precision Filtration

2. Stainless Steel Dutch Mesh Tube Features


Alkali resistance , high temperature resistance , strong tensile and wear resistance , stable, fine, high precision and special filtering performance

3. Stainless Steel Dutch Mesh Tube Specification


Stainless Steel Dutch Woven Mesh

Weave Type

Mesh Count

Warp Wire
(Inch)

Weft Wire
(Inch)

Absolute Rating
(Micron)

Nominal Rating
(Micron)

Weight
per 100 sq.'

PDW

8x20

0.014

0.0126

330-350

280

49

PDW

12x64

0.024

0.0165

270-290

200

84

PDW

14x88

0.02

0.013

220-240

150

75

PDW

16x80

0.0196

0.0134

225-235

140

79

PDW

24x110

0.015

0.01

115-125

80

55

PDW -

24x128

2 x .010

0.004

110-120

75

34

PDW

30x150

0.009

0.007

110-112

63

33

PDW -

30x150

2 x .009

.007"

95-113

60

33

PDW

40x200

0.007

0.0055

70-75

55

27

PDW

50x250

0.0055

0.0045

58-63

40

22

PDW

80x400

0.005

0.003

40-45

35

17

TDW

30x250

0.01

0.008

110-120

53

66

TDW

80x700

0.004

0.003

35-40

25

25

TDW

120x400

0.004

0.0025

50-55

40

15

TDW

165x800

0.0028

0.002

25-28

15

14

TDW

200x600

0.0024

0.0018

30

20

10

TDW

165x1400

0.0028

0.0016

16-20

10

14

TDW

200x1400

0.0028

0.0016

12-14

5

15

TDW

325x2300

0.0014

0.001

8-9

2

10

TDW

400x2800

0.001

0.0008

6-7

1

8

4. Stainless Steel Dutch Mesh Tube Application


The product is mainly used for gas , liquid filtration and other medium separation . Widely used in precision pressure filters , fuel filtration, vacuum filters
Do filter raw materials , aerospace, oil refining , medicine , sugar , petroleum , chemical , chemical fiber , rubber , tire manufacturing , metallurgy , food , health research and other industries
