300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
Specifications
Brand Name :
BJPFM
Model Number :
PFM-SS MESH
Certification :
SGS
Place of Origin :
China
Product name :
300 400 500 micron 304 stainless steel filter square woven wire mesh
Material :
stainless steel
Hole shape :
Square
Weave style :
Plain/twill weave
Mesh count :
1-635mesh/inch
Description

300 400 500 Micron 304 Stainless Steel Filter Square Woven Wire Mesh

1. 300 400 500 um Stainless Steel Square Mesh Description

Material: SUS302, 304, 304L, 316, 316L, 310S stainless steel mesh

Stainless steel is resistant to heat , acid , corrosion and wear . Because of these characteristics , stainless steel mesh is widely used in mining , chemical , food , petroleum , medicine and other industries , mainly used for gas , liquid filtration and other media separation

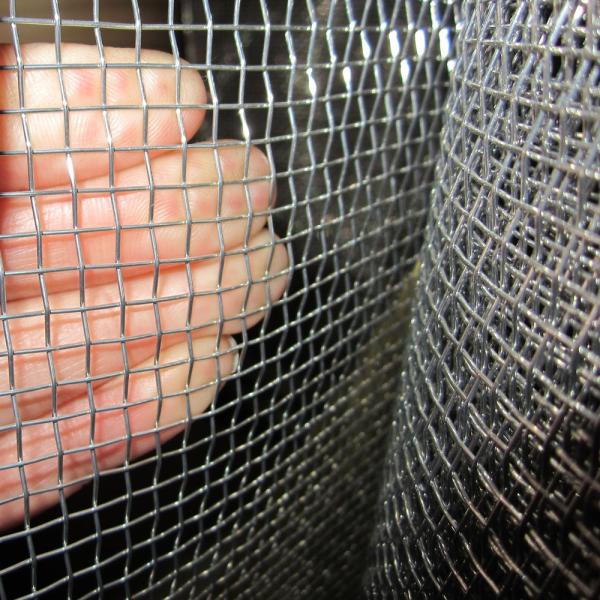

300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made

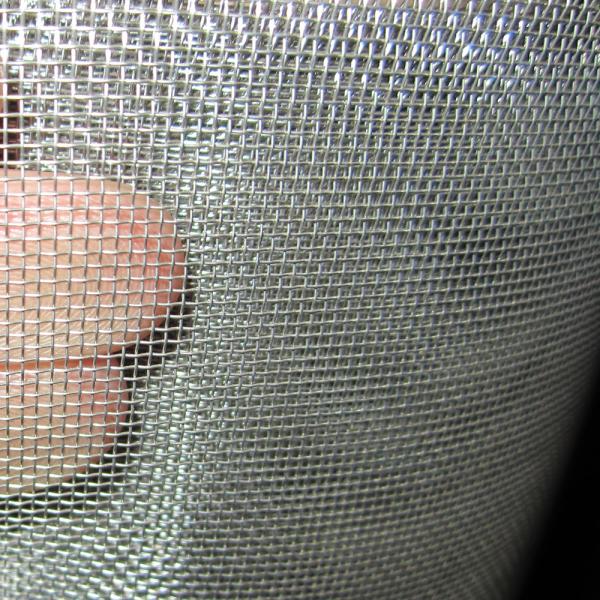

300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made

2. 300 400 500 um Stainless Steel Square Mesh Features

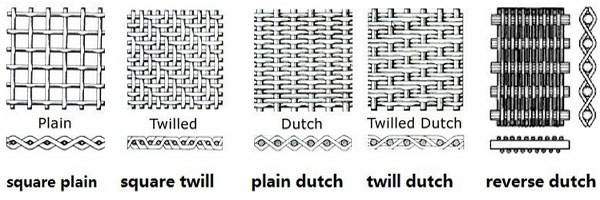

Stainless steel suqare mesh weaving plain , twill and dutch woven.

SS filter mesh performance acid resistance , alkali resistance , temperature resistance , wear resistance , etc

300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made

3. 304 Stainless Steel Square Mesh Specification

Stainless Steel Square Woven Mesh

Weave
Type

Mesh
Count

Wire Dia.
(Inch)

Width of Opening
(Inch)

Open Area
(%)

Weigh Per 100 sq'
based on 304ss

Opening
(Micron)

Plain

2 x 2

.063

.4370

76.4

51.7

11119

Plain

3 x 3

.0540

.2790

70.1

57.3

7099

Plain

4 x 4

.0470

.2030

65.9

58.2

5165

Plain

5 x 5

.0410

.1590

63.2

55.4

4046

Plain

6 x 6

.0350

.1320

62.7

48.6

3359

Plain

6 x 6

.0320

.1350

65.6

20.7

3435

Plain

7 x 7

.0320

.1110

60.4

47.5

2824

Plain

7 x 7

.0280

.1150

64.8

36.2

2926

Plain

8 X 8

.0250

.1000

64.0

32.9

2545

Plain

9 X 9

.0250

.0860

59.9

37.3

2188

Plain

9 X 9

.0230

.0880

62.7

31.4

2239

Plain

10 x 10

.0250

.0750

56.3

41.6

1908

Plain

11 x 11

.0230

.0680

56.0

38.8

1730

Plain

11 x 11

.0200

.0710

61.0

29.1

1807

Plain

12 x 12

.0200

.0630

57.2

31.9

1603

Plain

14 x 14

.0200

.0510

51.0

37.6

1298

Plain

16 x 16

.0180

.0445

50.7

34.8

1132

Plain

18 x 18

.0170

.0386

48.3

35.1

982

Plain

20 x 20

.0200

.0300

36.0

55.8

763

Plain

30 x 30

.0120

.0213

40.8

29.7

542

Plain

30 x 30

.0095

.0238

51.0

18.2

606

Plain

40 x 40

.0100

.0150

36.0

27.9

382

Plain

50 x 50

.0055

.0145

52.6

10.1

369

Plain

60 x 60

.0060

.0107

41.2

14.8

272

Plain

60 x 60

.0045

.0122

53.3

8.1

310

Plain

80 x 80

.0055

.0070

31.4

17.1

178

Plain

100x100

.0045

.0055

30.3

14.3

140

Plain

100x100

.0040

.0060

36.0

11.1

153

Plain

120x120

.0026

.0058

47.3

5

148

Plain

150x150

.0026

.0041

37.4

7.2

104

Plain

165x165

.0019

.0042

47.1

4.2

107

Plain

180x180

.0023

.0033

34.7

7.5

84

Plain

200x200

.0019

.0030

60.6

3.6

77

Plain

230x230

.0014

.0029

46.0

3.4

74

Plain

250x250

.0016

.0024

36.0

4.3

61

Twill

270x270

.0016

.0021

32.2

4.8

53

Plain

300x300

.0012

.0018

29.7

3

46

Twill

325x325

.0014

.0017

30.0

4.3

43

Twill

400x400

.0011

.0014

31.4

3.4

36

Twill

500x500

.0010

.0010

25.0

*

25

Twill

635x635

.0008

.0008

25.0

*

20

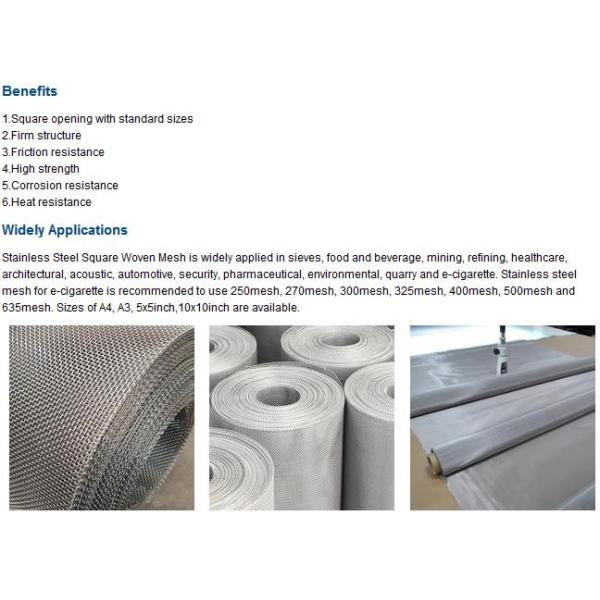

4. Stainless Steel Square Filter Mesh Application

300 400 500 Micron Industrial Filter Mesh 304 Stainless Steel Made
