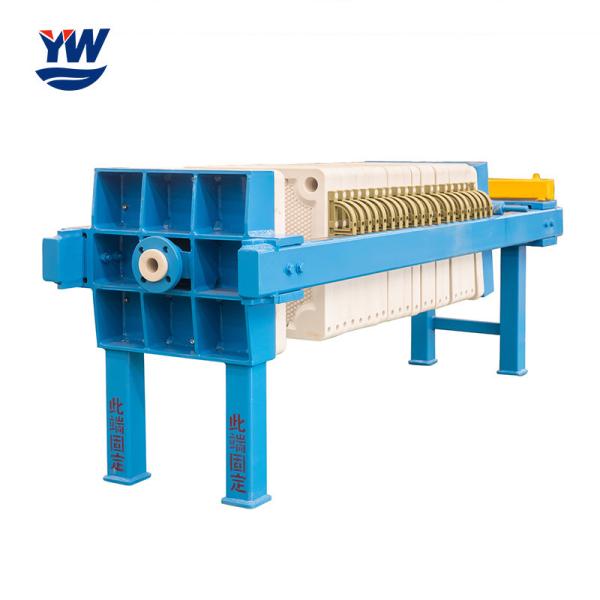

Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Small Manual Hydraulic Chamber Filter Press
Specifications
Brand Name :
Yuwei
Model Number :
YWXAZ
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Unit per Month
Delivery Time :
10-20 work days
Packaging Details :
Bubble Wrap/ Wooden Case
Name :
Chamber Filter Press
Material :
Carbon Steel
Plate Material :
PP
Plate Shifting :
Manual
Working Pressure :
0.6 MPa
Closing Pressure :
18 Mpa
Description

Introduction

The Small hydraulic filter press, normally refers to the filter presses, which are closed by an electrical hydraulic station and manually discharge cakes. A motor-driven hydraulic closing system is the best method than others, because of the huge squeezing force. So all big machine belongs to hydraulic type. It has more advantages: easy operation, stable working, best-squeezing performance, and automatic pressure keeping, etc. Additionally, comparing an air-driven hydraulic system, it has much lower noise.

The hydraulic filter press adopts hydraulic system to open and close the filter plates, and it can bear higher filtering pressure than other filter press closing types.

Features

  1. Feeding pressure 0.4-0.6 MPa, Hydraulic compressing, automatic maintaining pressure.
  2. Frame made of high-quality Q235 carbon steel with sandblasting processing can be coated with SS304 or 316L for meeting high requirements.
  3. Hydraulic station equipped with ABB brand motor, closing pressure can reach 18-20MPa.
  4. Control system use Simens PLC, can realize automatic operation includes feeding, filtration, cake discharging function.
  5. Schneider Electric components, Stainless steel track for plate shifter.
  6. Customized model and product are available.

Application

Small Manual Hydraulic Chamber Filter Press

Specification

Model Filter Area(m²) Plate Diameter(mm) Filter chamber volume Plate NO. Filtration pressure(MPa) Dimensions(mm)
XMY4/450-30U 4 500*500 9 ≥0.6 2.2 1950*700*900
XMY6/450-30U 6 14 2200*700*900
XMY8/450-30U 8 19 2450*700*900
XMY10/450-30U 10 24 2700*700*900
XMY12/450-30U 12 29 2950*700*900
XMY15/450-30U 15 36 3300*700*900
XMY16/450-30U 16 39 3450*700*900
XMY15/630-30U 15 700*700 18 2640*900*1060
XMY20/630-30U 20 24 2940*900*1060
XMY30/630-30U 30 37 3590*900*1060
XMY40/630-30U 40 49 4300*900*1060
XMY30/800-30U 30 800*800 28 3700*1200*1160
XMY40/800-30U 40 38 4300*1200*1160
XMY50/800-30U 50 47 4840*1200*1160
XMY60/800-30U 60 57 5440*1200*1160
XMY70/800-30U 70 67 6040*1200*1160
XMY30/870-30U 30 870*870 23 3330*1350*1250
XMY40/870-30U 40 30 3420*1350*1250
XMY50/870-30U 50 38 4260*1350*1250
XMY60/870-30U 60 46 4700*1350*1250
XMY70/870-30U 70 54 5140*1350*1250
XMY80/870-30U 80 62 5580*1350*1250
