Solid Liquid Seperation Box Chamber Filter Press Water Treatment 630x630 Hydraulic Separation
Solid Liquid Seperation Box Chamber Filter Press Water Treatment 630x630 Hydraulic Separation
Specifications
Brand Name :
Yuwei
Model Number :
YWXAZ
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 Unit per Month
Delivery Time :
10-20 work days
Packaging Details :
Bubble Wrap/ Wooden Case
Name :
Chamber Filter Press
Material :
Carbon Steel q235
Plate Material :
PP
Plate Shifting :
Auto
Working Pressure :
0.6 -1.0MPa
Closing Pressure :
18-20 Mpa
Power :
380V/50HZ/3PHS
Control :
PLC Auto/manual
Description

Industrial Box Filter Press 630 Automatic Hydraulic Filter Solid-Liquid Separation Filtration Electric Plate ​

The energy-saving filter press is a kind of automatic filter press with feeding, pulling plate and discharging. This machine usually adopts a large plate and a small area, and the two ends are fed. Electronic control system as required
The system also controls the opening and closing of various valves, the start and stop of the feeding pump, and also controls other auxiliary equipment other than the filter press, such as belt conveyors and scrapers, and finally achieves the running process of the filter press.
control, improve work efficiency and reduce operating power consumption.
The energy-saving filter press is mainly suitable for the mining industry that is easy to dehydrate. It has compact structure, stable performance, convenient maintenance, high efficiency (normal material filtration can reach 3-6 cycles/hour), and operating costs
Use low-level features.

Our service:
1. Professional person on line to advise you the most suitable type of machie according to your requirement.
2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3. Arrange the schedule if you pay a visit to our factory
4. Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.



Technical Features

  • Inverter motor pull plate;
  • Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
  • The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
  • The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.

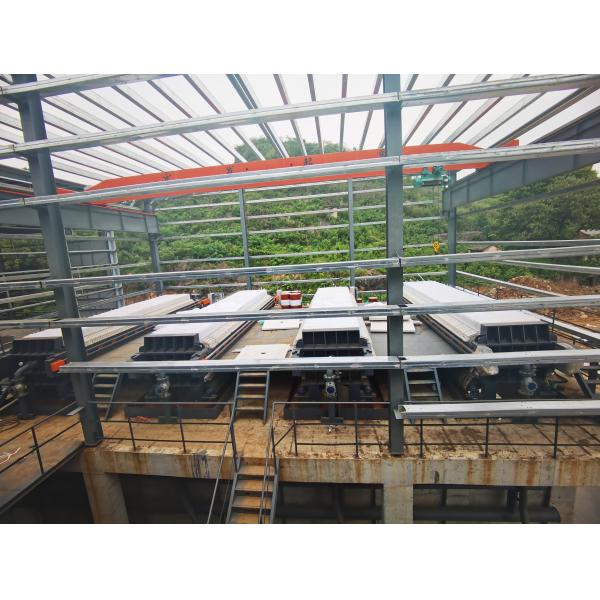

Application Fields and onsite pictures:

  • Mining
  • Chemical
  • Pharmaceutical
  • Waste water treatment


ModelFilter AreaPlate sizeCake thicknessFilter chamber volumePlate NOFiltration pressureMotor powerWeightDimensions L*W*H(mm)Foundation Size(mm)
LBDH
X_M^AZ30/870−30U_K^B30870*87030460230.62.226803180*1400*123023607001380785
X_M^AZ40/870−30U_K^B405953030503570*1400*12302750
X_M^AZ50/870−30U_K^B507483834564110*1400*12303290
X_M^AZ60/870−30U_K^B609024640034550*1400*12303730
X_M^AZ70/870−30U_K^B7010565445844990*1400*12304170
X_M^AZ80/870−30U_K^B8012106250825430*1400*12304610
X_M^AZ50/870−30U_K^B501000*10003073628≥0.6441284040*1500*140031207801480870
X_M^AZ60/870−30U_K^B608893446364460*1500*14003480
X_M^AZ70/870−30U_K^B7010414051434760*1500*14003840
X_M^AZ80/870−30U_K^B8011934656515120*1500*14004200
X_M^AZ100/870−30U_K^B10014755766285780*1500*14004860
X_M^AZ120/870−30U_K^B12017776976446500*1500*14005580
X_M^AZ100/1250−30U_K^B1001250*125030146836≥0.6483075020*1800*160039708501740995
X_M^AZ120/1250−30U_K^B12017464393085470*1800*16004430
X_M^AZ140/1250−30U_K^B140206351104555990*1800*16004950
X_M^AZ160/1250−30U_K^B160234158114926450*1800*16005400
X_M^AZ180/1250−30U_K^B180261965124946905*1800*16005860
X_M^AZ200/1250−30U_K^B200289672135047360*1800*16006310
X_M^AZ220/1250−30U_K^B220321480146527880*1800*16006830
X_M^AZ250/1250−30U_K^B250365091162278600*1800*16007550
X_M^AZ200/1500−35U_K^B2001500*150035299849≥0.67.5200306400*2200*19005250117019901070
X_M^AZ250/1500−35U_K^B250359461229787225*2200*19006090
X_M^AZ300/1500−35U_K^B300434774260268130*2200*19006990
X_M^AZ350/1500−35U_K^B350504386292208950*2200*19007840
X_M^AZ400/1500−35U_K^B400579699325749880*2200*19008750
X_M^AZ450/1500−35U_K^B45064921113558610690*2200*19009590
X_M^AZ500/1500−35U_K^B50071871233860611560*2200*190010430
X_M^AZ600/2000−40U_K^B6002000*200040892685≥0.6154900011100*3000*25009200166020001050
X_M^AZ700/2000−40U_K^B70010380995300012200*3000*250010300
X_M^AZ800/2000−40U_K^B800112101075700013350*3000*250011450
X_M^AZ900/2000−40U_K^B900132901276100014500*3000*250012600
X_M^AZ1000/2000−40U_K^B1000147401416500015600*3000*250015600


Solid Liquid Seperation Box Chamber Filter Press Water Treatment 630x630 Hydraulic Separation
Solid Liquid Seperation Box Chamber Filter Press Water Treatment 630x630 Hydraulic Separation
