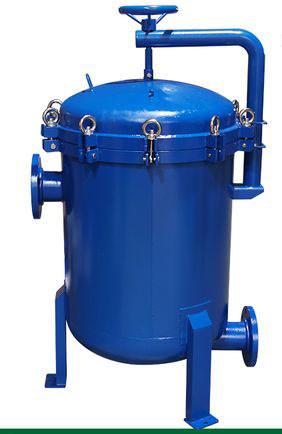

Carbon Steel Bag Filter Housing 5 Inch 10 Inch 20 Inch Rubber Lined Multimedia
Carbon Steel Bag Filter Housing 5 Inch 10 Inch 20 Inch Rubber Lined Multimedia
Specifications
Brand Name :
YW
Model Number :
YWDS
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
USD+500-10000+set
Payment Terms :
T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
600+set+per month
Delivery Time :
5-8 work days
Packaging Details :
wooden case, net for container
Product name :
bag filter
Material :
Carbon Steel
Bag Qty :
1-30
Max flow :
10-20t/h
Inlet/Outlet Dia :
DN25-DN600
Working pressure :
0.2-0.6Mpa
Filter housing type :
filter housing
Aftersale service :
Online support
Customer customized :
support
Colour :
Blue
Total height :
1572mm
Application :
oil, food,drinking chemical industry etc
Description

Carbon Steel Rubber Lined Multimedia Filter Multimedia Filter Housing

Production description

Bag filter, using the filter bag as the filter element, suitable for liquid precision filtration, remove the tiny impurities in the liquid .Bag filter is a new type of filtration system. Inside the bag filter, the filter bag is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. The impurities are intercepted in the filter bag and can be used after changing the filter bag.

Working principle

The bag filter is easy to operate. When in use, just install the filter bag with the required fineness grade in the filter cartridge, check whether the O-ring is intact, and then tighten the ring bolt of the filter cartridge cover to put it into operation. After the pump is started, the pressure gauge on the filter rises slightly, and the initial pressure is about 0.05Mpa. With the extension of service time, the filter residue in the cylinder gradually increases. When the pressure reaches 0.4MPa, stop the machine, open the cylinder cover, check the residue of the filter bag, and replace the filter bag to continue to use (the filter bag can generally be reused by cleaning).

Application

Widely used in paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solution, milk, mineral water, thermal solvent, latex, industrial water, sugar water, resin, ink, industrial wastewater, fruit juice, edible oil, wax, etc.

Specification

​

Models No. of filter bags Filtration Area(㎡) Flow rate (m³/h) I/O Connections Max pressure (Mpa) Housing Diameter(mm) Total Height(mm) Housing Height(mm) Center Distance of Foundation Bolts(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144 616
DL-3P2S 3 1.5 105 DN80 0.5 508 1592 1190 668
DL-4P2S 4 2 140 DN100 0.5 558 1632 1244 718
DL-5P2S 5 2.5 175 DN150 0.5 608 1788 1254 768
DL-6P2S 6 3 210 DN150 0.5 658 1854 1300 818
DL-7P2S 7 3.5 215 DN150 0.5 710 1875 1340 870
DL-8P2S 8 4 280 DN150 0.5 760 1922 1404 920
DL-10P2S 10 5 350 DN200 0.5 910 2004 1430 1070
DL-12P2S 12 6 420 DN200 0.5 962 2064 1460 1132
DL-14P2S 14 7 490 DN200 0.5 1012 2124 1490 1212
DL-16P2S 16 8 560 DN250 0.5 1112 2146 1512 1312
DL-18P2S 18 9 630 DN250 0.5 1162 2225 1595 1362
DL-20P2S 20 10 700 DN250 0.5 1212 2280 1640 1412
DL-22P2S 22 11 770 DN250 0.5 1366 2320 1694 1516
DL-24P2S 24 12 840 DN300 0.5 1416 2358 1748 1616

​
