Stainless Steel Purifier Candle Water Treatment Equipment Full Automatic Cake Layer
Stainless Steel Purifier Candle Water Treatment Equipment Full Automatic Cake Layer
Specifications
Brand Name :
Yuwei
Model Number :
YWZS
Certification :
IOS/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
20-25 work days
Packaging Details :
bubble wrap/wooden case
Name :
Candle Filter
Material :
SS 304/316
Discharge :
Back Flow
Control :
PLC
Filter area :
0.5-60 m2
Precision :
1-200 um
Inlet/Outlet :
DN25-DN200
Housing surface :
Sand Blast/Polish
Pressure :
0.4 -0.8 Mpa
Work Temperture :
1-160degree
Description

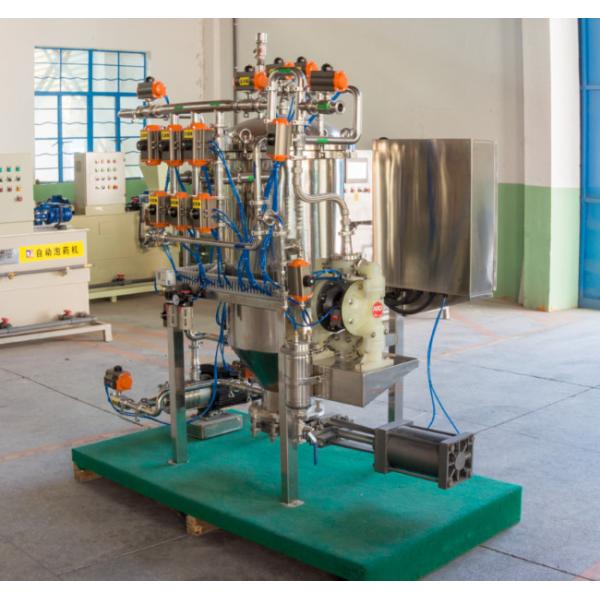

Stainless Steel Candle Filter Filtering Water Treatment Equipment Full-Automatic Cake Layer Candle Filter

Candle filter is a relatively advanced, safe, efficient and pollution-free new filtering method. Candle filter has the characteristics of high efficiency and energy saving, sealing and high precision, simple maintenance, safety and reliability and high degree of automation. It can be widely used in solid-liquid separation and filtration in petroleum, plastics, electroplating, chemical industry, ceramics, pharmaceutical, sugar and other industries.

Candle filtration has gradually replaced pressure filtration and bag filtration as the mainstream filtration method. The repeated utilization of filter media saves a lot of filtration consumables; The cylinder is tightly sealed to ensure no leakage in the production process; Microcomputer automatic whole process control not only better maintains the continuity of enterprise production, but also greatly reduces the risk of production accidents while improving production efficiency and saving labor.

Model Cartridge QTY Cartridge Size(mm) Filtering Area(㎡) Capacity(t/h) Housing Volume(L) Inlet(DN)

Cake Discharging Outlet

(DN)

 Housing Diameter(mm) Total Height(mm) Height of Housing(mm) Height of Waste Discharging Oulet(mm) Dimension(mm)
YWZS-1 7 90*500 1 2.2 140 25 150 456*3 1902 1448 500 φ1000
YWZS-1.5 10 90*500 1.5 3.3 180 25 200 508*4 1928 1474 500 φ1000
YWZS-2 7 90*1000 2 4.4 220 32 150 456*3 2402 1948 500 φ1200
YWZS-3 10 90*1000 3 6.6 280 40 200 508*4 2428 1974 500 φ1200
YWZS-4 14 90*1000 4 8.8 400 40 200 608*4 2502 1868 500 φ1300
YWZS-6 19 90*1000 6 13.2 560 50 250 708*5 2578 1944 500 φ1400
YWZS-8 24 90*1000 8 18 740 65 250 808*5 2644 2010 500 φ1500
YWZS-12 40 90*1000 12 26 1200 65 300 1010*5 2854 2120 600 1300*1440
YWZS-18 64 90*1000 18 40 1800 80 400 1212*6 2904 2170 600 1440*1540
YWZS-30 106 90*1000 30 66 3000 100 500 1616*8 3440 2840 600 1800*1940
YWZS-40 140 90*1000 40 88 3815 150 500 1820*10 3560 2960 600 2000*2140
YWZS-60 190 90*1000 60 132 5700 150 500 2220*10 3700 3100 600 2440*2540

• Fully closed filtration. No leakage. No any environmental pollution.
• The entire process can be fully automated.
• The filter cake can be washed and dried to obtain maximum economic benefit.
• The filter element is designed to be the duplex structure.
• It has a wide applications and better filtering effects.
• It is the gas blowback slagging. The slag can be discharged quickly and cleanly.
• It is suitable for a variety of sticky materials.
