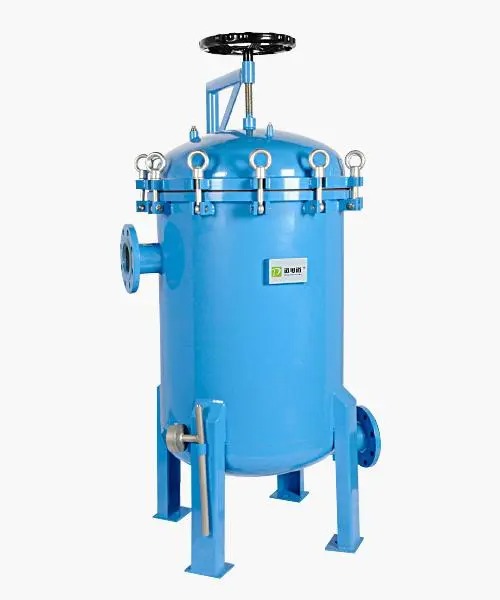

Carbon Steel Bag Filter Non-Standard Customized Liquid Bag Filter​

Production description

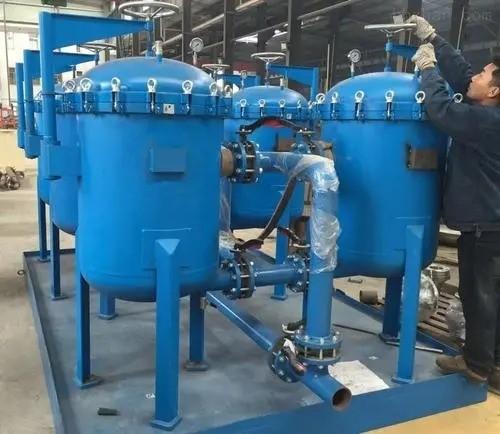

Yuwei Bag filter is user friendly and cost-effective filtration solution, the precision can reach 0.5 micron. Usually contents two types: single bag filter and multi-bag filter.
The bag filter consists of housing, supporting basket and filter bag. The filter bag is the medium to intercept solid particles which is supported by the mesh. The liquid will be feeded into the housing from the inlet by pump and then is evenly filtered by the filter bag under the pressure from the pump. The impurities will be trapped in the filter bag and filtered liquid go out from outlet. And the filtration process is completed. Filter bag can be reused and it is very easy to change.

Working principle

The work adopts pressurized filtration, the fluid filtrate flows into the filter bag from the inlet of the filter, and the filter bag is installed in the reinforced filter basket to prevent the filter bag from being broken due to excessive pressure. The required filtrate, the impurity particles are intercepted by the filter bag, and the filtration is basically free of material consumption. The filter bag material can be selected according to the different materials of each manufacturer: (PP non-woven fabric precision filtration 0.5-200 micron temperature within 80 degrees corrosion resistance), (PE non-woven fabric precision filtration 0.5-200 micron temperature within 100 degrees corrosion resistance) (Multi-layer oil absorption bag 0.5-20 microns corrosion resistance within 80 degrees) (PTFE filter bag precision filtration 0.5-200 microns corrosion resistance within 180 degrees), (nylon filter bag coarse filter 25-1000 microns corrosion resistance within 100 degrees temperature , can be cleaned and used repeatedly) (stainless steel filter bag is corrosion-resistant within 25-2000 microns temperature within 300 degrees, and can be cleaned and used repeatedly) (stainless steel multi-layer composite filter mesh is precision filtration 1-1000 microns within 400 degrees temperature and corrosion resistance within 400 degrees can be cleaned repeatedly use).

Application

Widely used in paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solution, milk, mineral water, thermal solvent, latex, industrial water, sugar water, resin, ink, industrial wastewater, fruit juice, edible oil, wax, etc.

Specification

​

​
