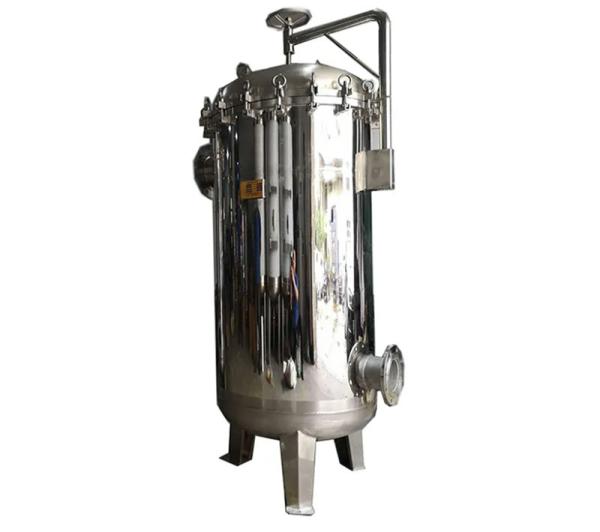

Water Industrial Bag Filter Housing Ss 304 Automobile Industry Treatment DN80mm
Water Industrial Bag Filter Housing Ss 304 Automobile Industry Treatment DN80mm
Specifications
Brand Name :
YW
Model Number :
5P2S
Certification :
CE, ISO
Place of Origin :
HENAN PROVINCE IN CHINA
MOQ :
1
Price :
USD+500-10000+set
Payment Terms :
T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
600+set+per month
Delivery Time :
5-8 work days
Packaging Details :
wooden case, net for container
Product name :
bag filter housing
Material :
ss304
Bag Qty :
5
Max flow :
80t/h
Inlet/Outlet Dia :
DN80mm
Working pressure :
0.3Mpa
Filter housing type :
stainless steel filter housing
Aftersale service :
video technical support, Online support
Customer customized :
support
Appearance :
polished finishing
Total height :
1572mm
Application :
oil, food,drinking chemical industry etc
Description

Rocker Model Bag Filter Housing For Automobile Industry Treatment

Product features:

1. The quick switch mechanism is a relatively simple, easy-to-use and safe operating system with short shutdown time, high production efficiency and low operation cost.

2. It only takes more than ten seconds for the filter to open and close, and the instantaneous pressure is automatically released when the cover is opened, so the operation is safe and dangerous.

3. The unique three-point pressure ring ensures a good seal between the filter and the filter bag, and the side in bottom out design ensures that the liquid can be completely discharged.

4. The top cover can be opened with one hand or without a spring.

5. The parts in contact with liquid are all made of high-quality stainless steel, which has anti-corrosion effect on a variety of liquids. In addition, the simple design can be applied to various processes and applications.

Specification

​​

Models No. of filter bags Filtration Area(m2) Flow rate (m³/h) I/O Connections Max pressure (Mpa) Housing Diameter(mm) Total Height(mm) Housing Height(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144
DL-3P2S 3 1.5 105 DN80 0.5 508 1592 1190
DL-4P2S 4 2 140 DN100 0.5 558 1632 1244
DL-5P2S 5 2.5 175 DN150 0.5 608 1788 1254
DL-6P2S 6 3 210 DN150 0.5 658 1854 1300
DL-7P2S 7 3.5 215 DN150 0.5 710 1875 1340
DL-8P2S 8 4 280 DN150 0.5 760 1922 1404
DL-10P2S 10 5 350 DN200 0.5 910 2004 1430
DL-12P2S 12 6 420 DN200 0.5 962 2064 1460
DL-14P2S 14 7 490 DN200 0.5 1012 2124 1490
DL-16P2S 16 8 560 DN250 0.5 1112 2146 1512
DL-18P2S 18 9 630 DN250 0.5 1162 2225 1595
DL-20P2S 20 10 700 DN250 0.5 1212 2280 1640
DL-22P2S 22 11 770 DN250 0.5 1366 2320 1694
DL-24P2S 24 12 840 DN300 0.5 1416 2358 1748

​Water Industrial Bag Filter Housing Ss 304 Automobile Industry Treatment DN80mm

Water Industrial Bag Filter Housing Ss 304 Automobile Industry Treatment DN80mm
