Water Vapor Titanium Filter Cartridge Pipeline Dust Rust Removal Reusable Circulating Purified
Water Vapor Titanium Filter Cartridge Pipeline Dust Rust Removal Reusable Circulating Purified
Specifications
Brand Name :
Yuwei
Model Number :
YWTBLX
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
USD+500-8000+set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Unit per Month
Delivery Time :
8 work days
Packaging Details :
wooden case/carton
Warranty :
1 Years
Size :
10,20,30,40 inch
Material :
Titanium
Quality :
High-Quality
Precision :
0.1-10 micron
Application :
Medical/Food/Industry
Type :
Filter Cartridges
Diameter :
60mm
Working Temperature :
Less 300 ℃
Description

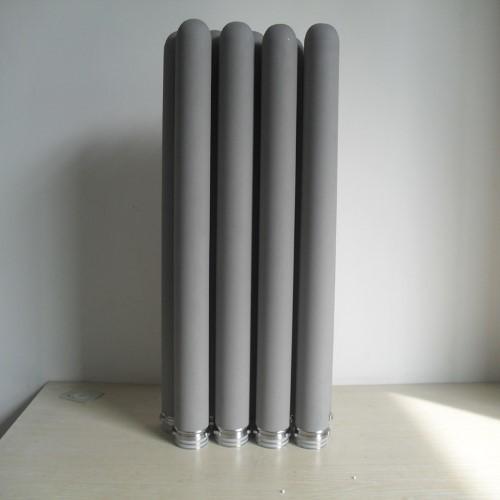

High Temperature Resistance Sintered Titanium Filter Cartridge With 0.22-10 Micron For Medical/Food/Industry​

Titanium rod filter element is a kind of industrial high-purity titanium powder as raw material, which is sintered at high temperature and high vacuum.

[Product name]: Titanium rod filter element
[Accuracy]:0.22um－100um
[Length]: 10″, 12″, 20″, 30″
[Outer diameter]: φ30mm, φ0mm, φ60mm
[Filter element interface]: Threaded type (M20, M30, M36, M42, etc.), 222 type, 226 type
[Working temperature]:≤300℃(wet state)
[High pressure difference]: 0.6Mpa
[Water flow]: >600L/H (10″ filter element)

Specification:

Model Quantity of Bags Filter Area(m2) Max Flow(T/H) Inlet/Outlet
DL-2P2S 2 1 70 DN50
DL-3P2S 3 1.5 105 DN80
DL-4P2S 4 2 140 DN100
DL-5P2S 5 2.5 175 DN150
DL-6P2S 6 3 210 DN150
DL-7P2S 7 3.5 245 DN150
DL-8P2S 8 4 280 DN150
DL-10P2S 10 5 350 DN200
DL-12P2S 12 6 420 DN200
DL-14P2S 14 7 490 DN200
DL-16P2S 16 8 560 DN250

Water Vapor Titanium Filter Cartridge Pipeline Dust Rust Removal Reusable Circulating Purified

Water Vapor Titanium Filter Cartridge Pipeline Dust Rust Removal Reusable Circulating Purified
