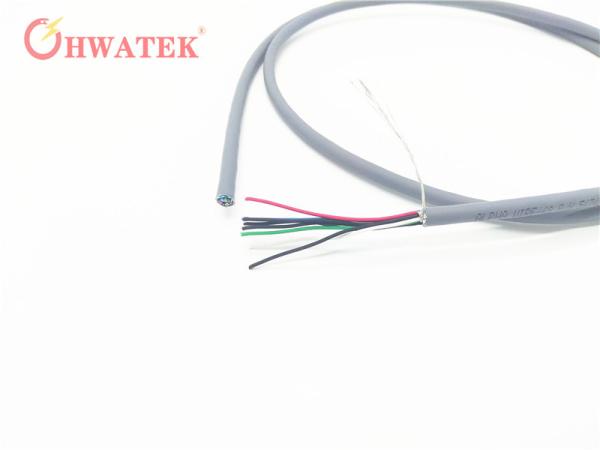

PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317
PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317
PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317
PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317
PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317
PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317
Specifications
Brand Name :
HWATEK
Model Number :
UL21317
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL21317
Size :
40AWG min
Conductor :
solid or stranded, tinned or bare copper.
Core Number :
Multiple-core
Standard :
UL758,UL1581, UL2556
Insulation material :
PVC，PE, SRPVC, PP, FOAM-PE,TPE
Shield material :
copper, AL-Mylar, tinned copper
Sheath material :
PUR
Application :
External interconnection or internal wiring of electronic equipment
Rated Voltage :
30V
Temperature :
-40℃-80℃
Flame :
VW-1,FT1,FT2
Free Sample :
YES
Description

UL21317 Multiple-conductor cable using PUR jacket, 80℃, 30V VW-1, 60 ℃ or 80 ℃ Oil

Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP, Foam-PE,TPE

Shield or Braid: Optional

Jacket: PUR

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:30V

Rated Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 0.5kV/1min

Printing :E258652 PUR Jacket Stranded / Solid Electrical Wire Multiple Core 2 - 8 Conductor UL21317 AWM STYLE 21317 AWGXX 80℃ 30V VW-1 ---c AWM I A/B 80℃ 30V FT1 -LF-HWATEK

Note: Where "XX" means AWG No.

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
