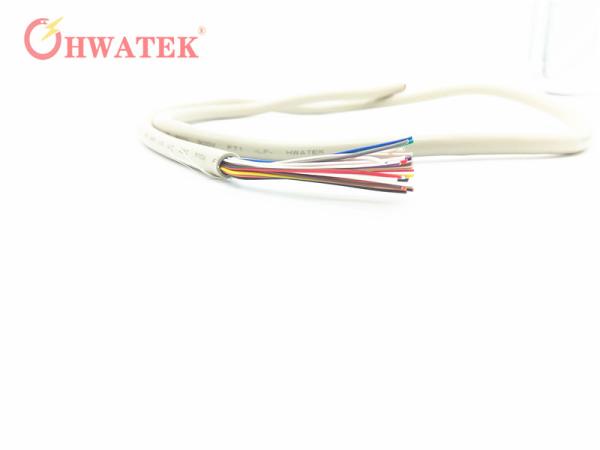

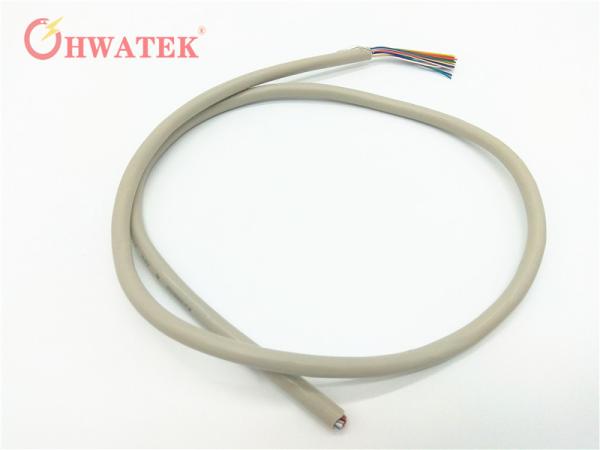

Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Specifications
Brand Name :
HWATEK
Model Number :
UL2586
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL2586
Size :
40AWG MIN
Conductor :
solid or stranded, tinned or bare copper.
Core Number :
Multiple-core
Standard :
UL758,UL1581, UL2556
Insulation material :
PVC，PE, SRPVC, PP
Shield material :
copper, AL-Mylar, tinned copper
Sheath material :
PVC
Application :
External interconnection or internal wiring of electronic equipment
Rated Voltage :
600V or 1000V
Temperature :
-40℃-105℃
Flame :
VW-1,FT1,FT2
Free Sample :
YES
Description

UL2586 Multiple-conductor cable using non-integral jacket, 105 ℃, 600V or 1000V VW-1, 60 ℃ or 80 ℃ Oil

Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP

Shield or Braid: Optional

Jacket: PVC

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:600V or 1000V

Rated Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 3.5kV/1min

Printing :E258652 Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586 AWM STYLE 2586 AWGXX 105℃ 600V VW-1 ---c AWM I A/B 105℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
