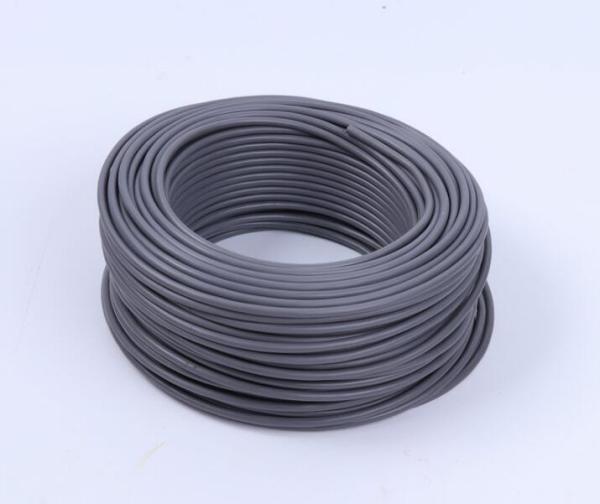

GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128
GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128
GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128
GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128
GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128
GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128
Specifications
Brand Name :
HWATEK
Model Number :
GXL
Certification :
ROHS, REACH,TS16949
MOQ :
6.1 KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
GXL
Size :
8-20AWG
Conductor :
Stranded, tinned or bare copper
Core Number :
1core
Standard :
SAE J1128
Insulation material :
XLPE
Application :
For internal wiring of automobile
Rated Voltage :
50V
Temperature :
125℃
Free Sample :
YES
Description

GXL, Resistant oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength

Construction

Conductor :Stranded, tinned or bare copper
Insulation: XLPE

Standards
International:SAE J1128

RoHS,REACH Compliant,

Technical data
Rated voltage:50V
Rated Temperature:125℃

Product character:

Uniform insulation thickness to ensure easy stripping and cutting

resistant to oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength

Voltage withstand test:AC 1.0kV/1min

Specifications

Conductor Insulation

Max. Cond. Resistance (200C)

Ω/km
AWG NO./mm

Nom. Thickness

mm

Nom. Dia.

mm
20 26/0.16 0.60 2.14 37.56
18 41/0.16 0.60 2.38 24.82
16 26/0.254 0.60 2.69 15.06
14 41/0.254 0.60 3.08 9.65
12 65/0.254 0.66 3.74 6.07
10 65/0.32 0.79 4.57 3.73
8 55/0.45 0.94 5.73 2.23

Certificates

ROHS, REACH,TS16949

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
