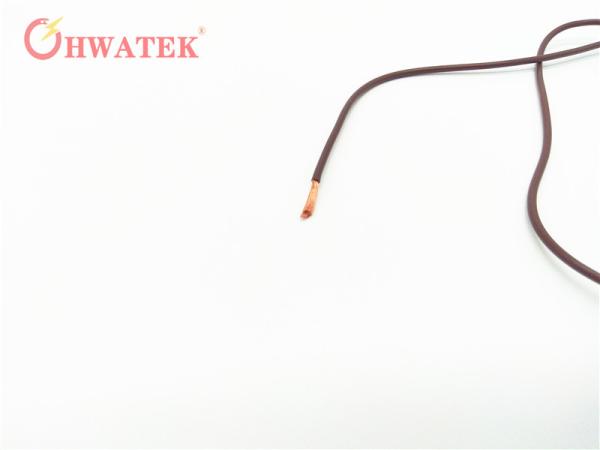

UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
Specifications
Brand Name :
HWATEK
Model Number :
UL10070
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1 KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL10070
Size :
18AWG - 4/0AWG
Conductor :
stranded, tinned or bare copper, IEC60228 CL5
Core Number :
1core
Standard :
UL758,UL1581, UL2556
Insulation material :
Special PVC
Application :
Internal Wiring of Appliances and Electronic Equipment.
Rated Voltage :
600V
Temperature :
-40~105℃
Flame :
VW-1,FT1,FT2
Free Sample :
YES
Description

UL10070 Single conductor with extruded Special PVC insulation, High Flexible,105 ℃, 600V VW-1

Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:Special PVC

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:600 V
Rated Temperature:-40~105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min

Printing :E258652 UL10070 Single Core Flexible Cable , PVC Insulation Single Conductor Wire AWM STYLE 10070 AWGXX 105℃ 600V VW-1 ---c AWM I A/B 105℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
