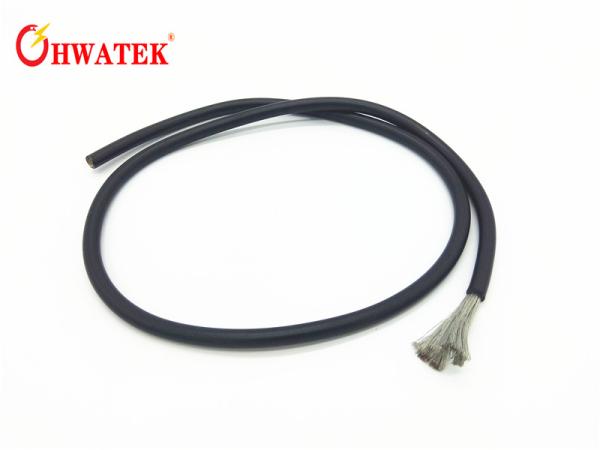

PVC Insulated Single Core Flexible Cable , Industrial 1 Core Wire Cable
PVC Insulated Single Core Flexible Cable , Industrial 1 Core Wire Cable
PVC Insulated Single Core Flexible Cable , Industrial 1 Core Wire Cable
PVC Insulated Single Core Flexible Cable , Industrial 1 Core Wire Cable
PVC Insulated Single Core Flexible Cable , Industrial 1 Core Wire Cable
PVC Insulated Single Core Flexible Cable , Industrial 1 Core Wire Cable
Specifications
Brand Name :
HWATEK
Model Number :
High Flexible Single core PVC cable,105 ℃, 1000V
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1 KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
High Flexible Single core PVC cable,105 ℃, 1000V
Size :
30AWG - 4/0AWG
Conductor :
stranded, tinned or bare copper, IEC60228 CL5
Core Number :
1core
Standard :
UL758,UL1581, UL2556
Insulation material :
Special PVC
Application :
Internal Wiring of Appliances and Electronic Equipment.
Rated Voltage :
1000V
Temperature :
-40~105℃
Flame :
VW-1,FT1,FT2
Free Sample :
YES
Description

High Flexible Single core PVC cable,105 ℃, 1000V, VW-1

Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:Special PVC

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:1000 V
Rated Temperature:-40~105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 3.5kV/1min

Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
