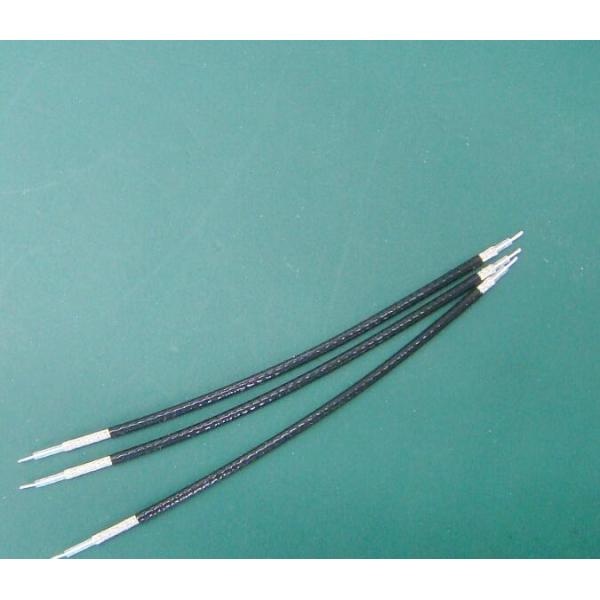

UL1354 High Temperature Flexible Coaxial Cable FEP Insulated Low Loss
UL1354 High Temperature Flexible Coaxial Cable FEP Insulated Low Loss
Specifications
Brand Name :
HWATEK
Model Number :
UL1354
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1 KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL1354
Size :
44 AWG min
Conductor :
Solid or Stranded
Core Number :
1core
Standard :
UL758,UL1581, UL2556
Insulation material :
Extruded solid or cellular PE, FRPE, PP, PFA, FEP
Application :
Internal wiring of Class 2 circuits of electronic equipment or as insulated single in jacketed multiconductor cables.
Rated Voltage :
30V
Temperature :
80℃
Flame :
VW-1,FT1,FT2
Free Sample :
YES
Description

UL1354 FEP Insulated Wire, 80 ℃, 30 V ,Extruded solid or cellular PE, FRPE, PP, PFA, FEP

Construction

Conductor :solid or stranded
Insulation: Extruded solid or cellular PE, FRPE, PP, PFA, FEP

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:30V
Rated Temperature:80℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 1kV/1min

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.UL1354 High Temperature Flexible Coaxial Cable FEP Insulated Low Loss
